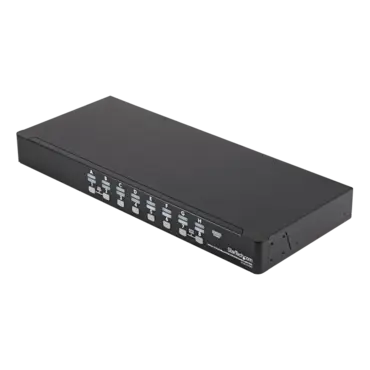

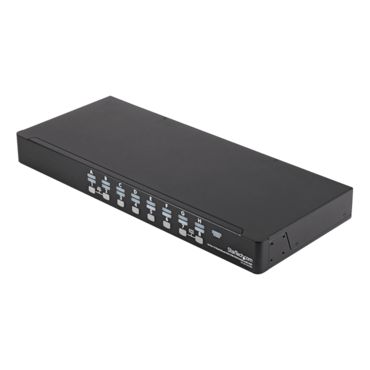

SV1631DUSBUK, 16 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables
- SKU: 4391374
- Manufacturer: STARTECH.COM
- MPN: SV1631DUSBUK
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$683.14
SV1631DUSBUK, 16 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables
16 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables
16 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables
- Package includes 16x 6ft USB KVM cables
- USB Keyboard and Mouse combo supported on 1 USB connection
- OSD security option allows selected KVM ports to be password-protected from unauthorized use
- Auto-scan function automatically switches between connected PCs sequentially
- Cascade configuration expands system capability
- Hotkey functions allow easy computer access
- Identifies and selects computers by the names assigned
- Plug-and-play system configuration
| Warranty Information | |
| Warranty | 3 Years |
| Connector(s) | |
| Console Interface(s) |
1 - VGA (15 pin, High Density D-Sub) 2 - USB 2.0 Type-A (4 pin, 480Mbps) |

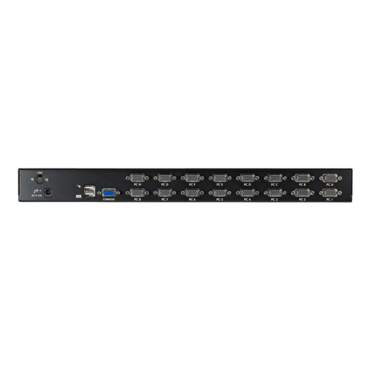

| Host Connectors | 16 - VGA (15 pin, High Density D-Sub) |
| Environmental | |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
| Hardware | |
| Audio | No |
| KVM Ports | 16 |
| PC Interface | USB |
| PC Video Type | VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | Yes |
| Cables Included | Yes |
| Daisy-Chain | Yes |
| Indicators | |
| LED Indicators |
1 - Green - Power 16 - Green - PC Online 16 - Red - PC Selected |
| Packaging Information | |
| Package Height | 4.7 in [12.0 cm] |
| Package Length | 23.3 in [59.3 cm] |
| Shipping (Package) Weight | 13.4 lb [6.1 kg] |
| Package Width | 10.4 in [26.3 cm] |
| Performance | |
| On-Screen Display | Yes |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Analog Resolutions | 1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen) |
| Wide Screen Supported | Yes |
| Maximum Number of Users | 1 |
| Maximum Cascaded Computers | 136 |
| Port Selection Support | Push Button, Hotkeys, and OSD (On Screen Display) |
| MTBF | 158000 hours |
| Physical Characteristics | |
| Weight of Product | 5.3 lb [2.4 kg] |
| Product Length | 17.2 in [43.8 cm] |
| Color | Black |
| Material | Steel |
| Product Width | 7.1 in [18.0 cm] |
| Product Height | 1.8 in [4.5 cm] |
| Product Depth | 7.5 in [190 mm] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Output Voltage | 9V DC |
| Output Current | 1A |
| Center Tip Polarity | Positive |
| Power Consumption (In Watts) | 9 |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package |
1 - 16-port USB KVM switch 2 - mounting brackets 16 - 6ft 2-in-1 USB VGA KVM cables 1 - screw kit 4 - foot pads 1 - universal power adapter (NA/EU/UK/AU) 1 - instruction manual |
