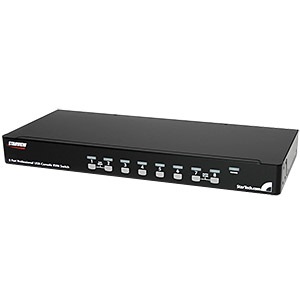

SV831DUSBUK 1U Rackmount USB KVM Switch Kit w/ OSD and Cables, 8-ports
The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.
|
The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Features:
- For simple setup, the USB/VGA KVM cables to connect all 8 ports to servers and PCs are included in the box
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; unlike most KVMs, this unique model extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in almost any environment
Specifications:
| Warranty |
3 Years |
| Audio |
No |
| Cables Included |
Yes |
| Center Tip Polarity |
Positive |
| Color |
Black |
| Daisy-Chain |
Yes |
| IP Control |
No |
| KVM Ports |
8 |
| Maximum Analog Resolutions |
1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen) |
| Maximum Cascaded Computers |
64 |
| Maximum Number of Users |
1 |
| PC Interface |
USB |
| PC Video Type |
VGA |
| Power Adapter Included |
Yes |
| Product Height |
1.77 in [45 mm] |
| Product Weight |
76.95 oz [2180 g] |
| Product Width |
17.13 in [435 mm] |
| Rack-Mountable |
Yes |
| Shipping (Package) Weight |
10.96 lb [5 kg] |
| U Height |
1 |
| Enclosure Type |
Steel |
| Wide Screen Supported |
Yes |
| Multiple Monitor |
No |
| LED Indicators |
1 - Green - Power |
| LED Indicators |
8 - Green - PC Online |
| LED Indicators |
8 - Red - PC Selected |
| Port Selection Support |
Push Button, Hotkeys, and OSD (On Screen Display) |
| Console Interface(s) |
1 - VGA (15 pin; High Density D-Sub) Female |
| Console Interface(s) |
2 - USB A (4 pin) Female |
| Host Interface(s) |
8 - VGA (15 pin; High Density D-Sub) Female |
| Input Voltage |
110 ~ 240 AC |
| Output Voltage |
9 DC |
| Output Current |
1000mA |
| Product Depth |
180 |
| Operating Temperature |
5°C to 40°C (41°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
0~80% RH |
| Carton Quantity |
3 |
|
