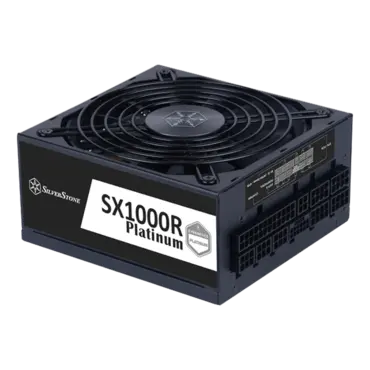

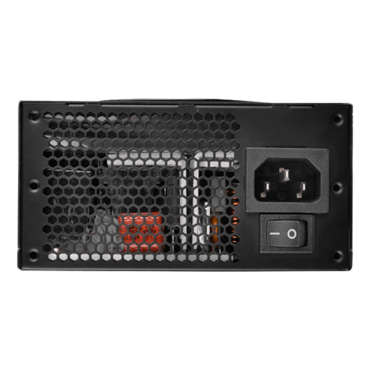

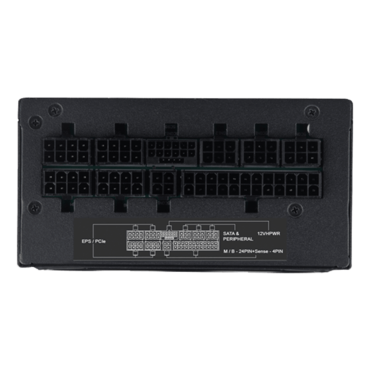

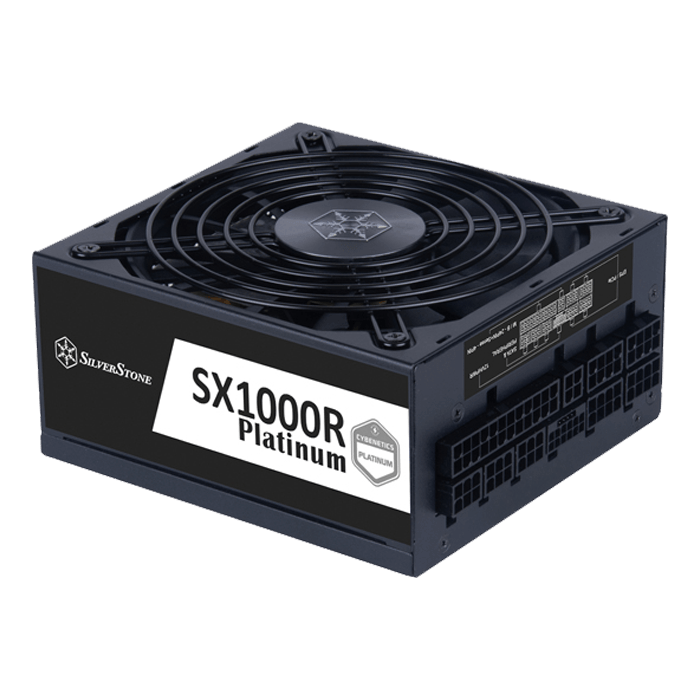

SX1000R, 80 PLUS Platinum 1000W, Fully Modular, SFX-L Power Supply
Quantity:
- SKU: 16170018
- Manufacturer: SILVERSTONE
- MPN: SST-SX1000R-PL
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$297.84
- SFX-L form factor for use in small form factor computers
- Supports 12VHPWR PCIe connector with SFX12V 4.0 and PCIe Gen 5 standard
- 1000W continuous power output rated for 24/7 operation
- Class-leading single +12V rail with 83.3A
- High efficiency with Cybenetics Platinum certification

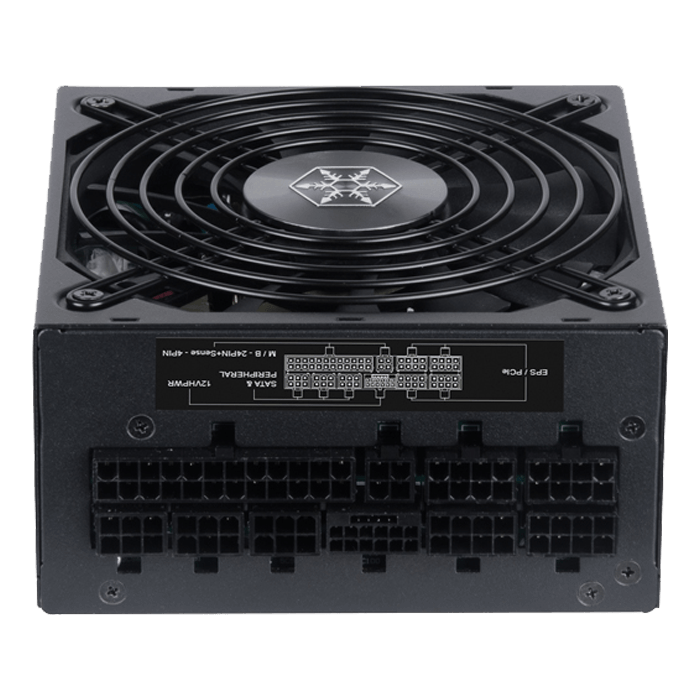

- Silent running 120mm dual ball bearing fan with advanced semi-fanless operation
- 24/7 continuous power output with 50? operating temperature
- High quality construction with all Japanese capacitors

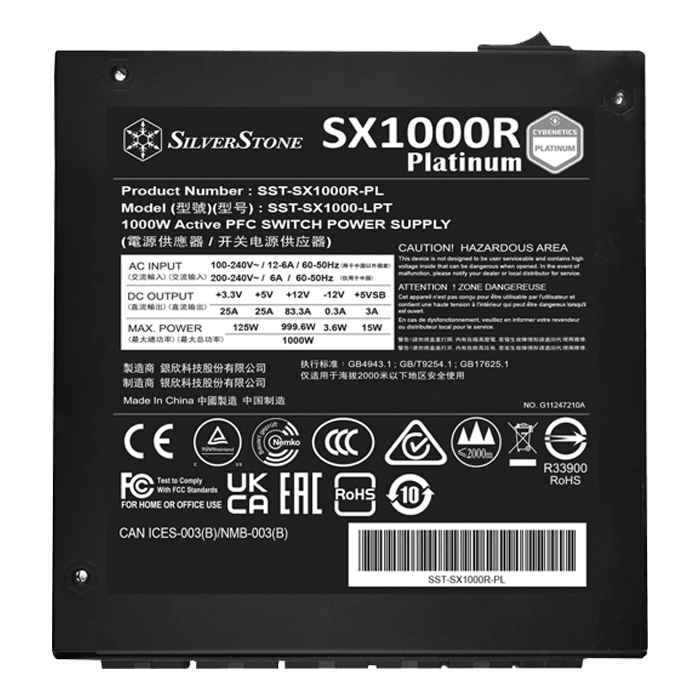

| Product No. | SST-SX1000R-PL | ||||
| Model (safety certification) | SST-SX1000-LPT | ||||
| Color | Black (lead-free paint) | ||||
| Max. DC Output | 1000W | ||||
| Load Range | |||||
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
| Max.(Amps) | 25A | 25A | 83.3A | 3.0A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 100mV | 40mV | 80mV |
| Combined +3.3V & +5V | 125W | ||||
| Combined +12V | 999.6W | ||||
| Input Voltage | 90 ~ 264 Vrms | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC(PF>0.9 at full load) | ||||
| Efficiency | 89% ~ 91% overall efficiency | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 50°C | ||||
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection |
||||

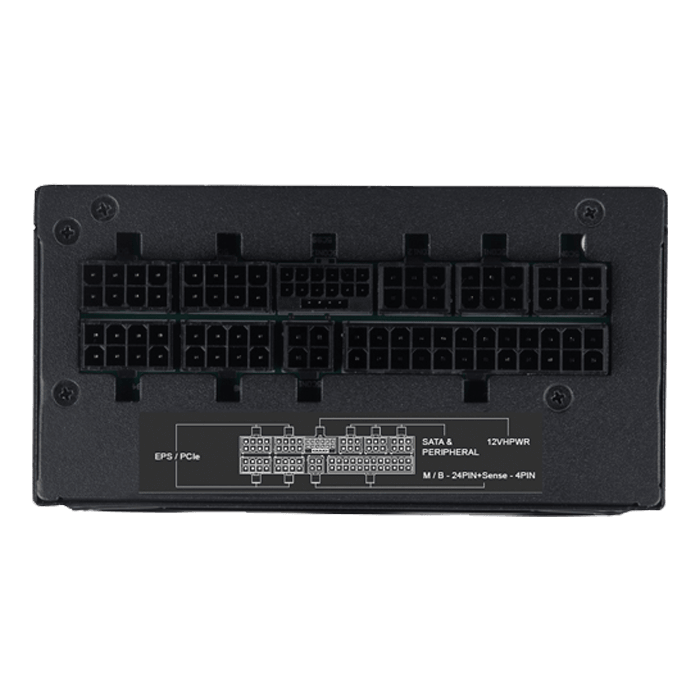

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 4 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12VHPWR connector 8 x SATA connectors 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector |
||||
| Cooling System | Single 120mm dual ball bearing fan | ||||
| Noise Level | 0 ~ 36 dBA | ||||
| Certification | Cybenetics Platinum | ||||
| Form factor | SFX-L | ||||
| Dimension | 125mm (W) x 63.5mm (H) x 130mm (D) 4.92” (W) x 2.5” (H) x 5.12” (D) |
||||
| Weight | 1.39kg | ||||
| Other | GPU Support list | ||||
