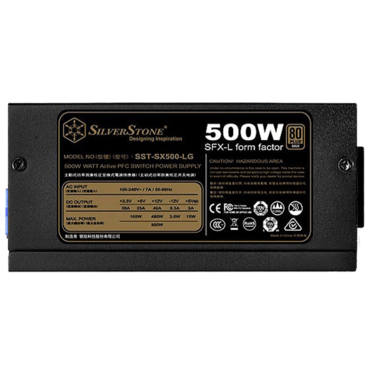

For small form factor enthusiasts, the standard SFX power supply form factor has excellent combination of size, power, and affordability. At 100mm deep, however, the standard SFX PSU is also limited in fan size to 80mm. While advances in engineering and components have made modern high-end SFX PSUs quieter than ever, there is still inherent limitation with 80mm fan’s ability to dissipate heat at maximum loading conditions while maintaining satisfactory noise profile for users sensitive to higher-pitch sounds. With this in mind, SilverStone has released a “lengthened” variation of the SFX form factor called, SFX-L. With 30mm of added depth, a SFX-L power supply has enough room to fit a 120mm fan, thus its maximum load noise can be not only lower in intensity (via slower fan speed), but also lower in pitch (due to larger fan size). The first model to debut in the SFX-L will be the SX500-LG, a 500W model that includes all features available from top of the line SFX SilverStone PSUs such as 80 PLUS Gold efficiency, modular flexible flat cables, and semi-fanless capability. An ATX adapter bracket is included as well to enable users to install this PSU into any small or even larger cases that do not have SFX mounting holes.
- Silent running 120mm fan with intelligent semi-fanless operation
- Supports SFX-L form factor and ATX via included bracket
- High efficiency with 80 PLUS Gold certification

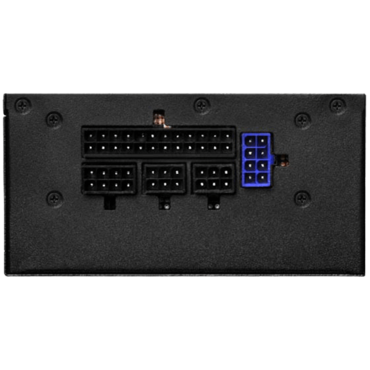

- 100% modular cables
- All cables made with flexible flat arrays
- 500W continuous power output at 40°C operating temperature rated for 24/7 operation
- Class-leading single +12V rail with 40A
- Strict ±3% voltage regulation and low ripple & noise
- Supports dual PCI-E 8/6pin connectors
- Active PFC
|
|||||
+3.3V | +5V | +12V | +5VSB | -12V | |
Max.(Amps)
|
20A | 20A | 40A | 3.0A | 0.3A |
Peak (Amps)
|
/ | / | / | / | / |
Min.(Amps)
|
0A | 0A | 0A | 0A | 0A |
Range (%)
|
±3% | ±3% | ±3% | ±5% | ±10% |
Line Reg.(%)
|
±1% | ±1% | ±1% | ±1% | ±2% |
Ripple(mVp-p)
|
50mA | 50mA | 120mV | 50mV | 120mV |
Model No. |
SST-SX500-LG
|
Max. DC Output |
500W
|
Power density |
484W per liter
|
Color |
Black(Lead-Free Paint)
|
combined +3.3, +5V |
105W
|
combined +12V |
480W
|
Input Voltage |
90V ~ 264V
|
Input Frequency Range |
47Hz ~ 63Hz
|
PFC |
Active PFC(PF>0.95 at full load)
|
Efficiency |
87%~90%(20% to 100% loading)
|
MTBF |
100,000 hours
|
Operating temperature |
0°C ~ 40°C
|
Protection |
Over Power Protection
Over Voltage Protection Over Temperature Protection Under voltage protection Short Circuit Protection |
Connectors |
1 x 24 / 20-Pin motherboard connector(300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(400mm) 2 x 8 / 6-Pin PCIE connector(400mm / 150mm) 3 x SATA connector(300mm / 200mm / 100mm) 2 x 4-Pin Peripheral connector (300mm / 200mm) 1 x 4-Pin Floppy connector(300mm / 200mm / 200mm) |
Cooling System |
Single 120mm silent fan
|
Noise Level |
0 ~ 36 dBA
|
Dimension |
125 mm (W) × 63.5 mm (H) × 130 mm (D)
|
Weight |
1.4 Kg
|
Form factor |
SFX-L
|
Certification |
80 PLUS Gold
|
Other |
Includes SFX to ATX bracket for use in ATX case
Compatible with ATX12V v2.4 |
