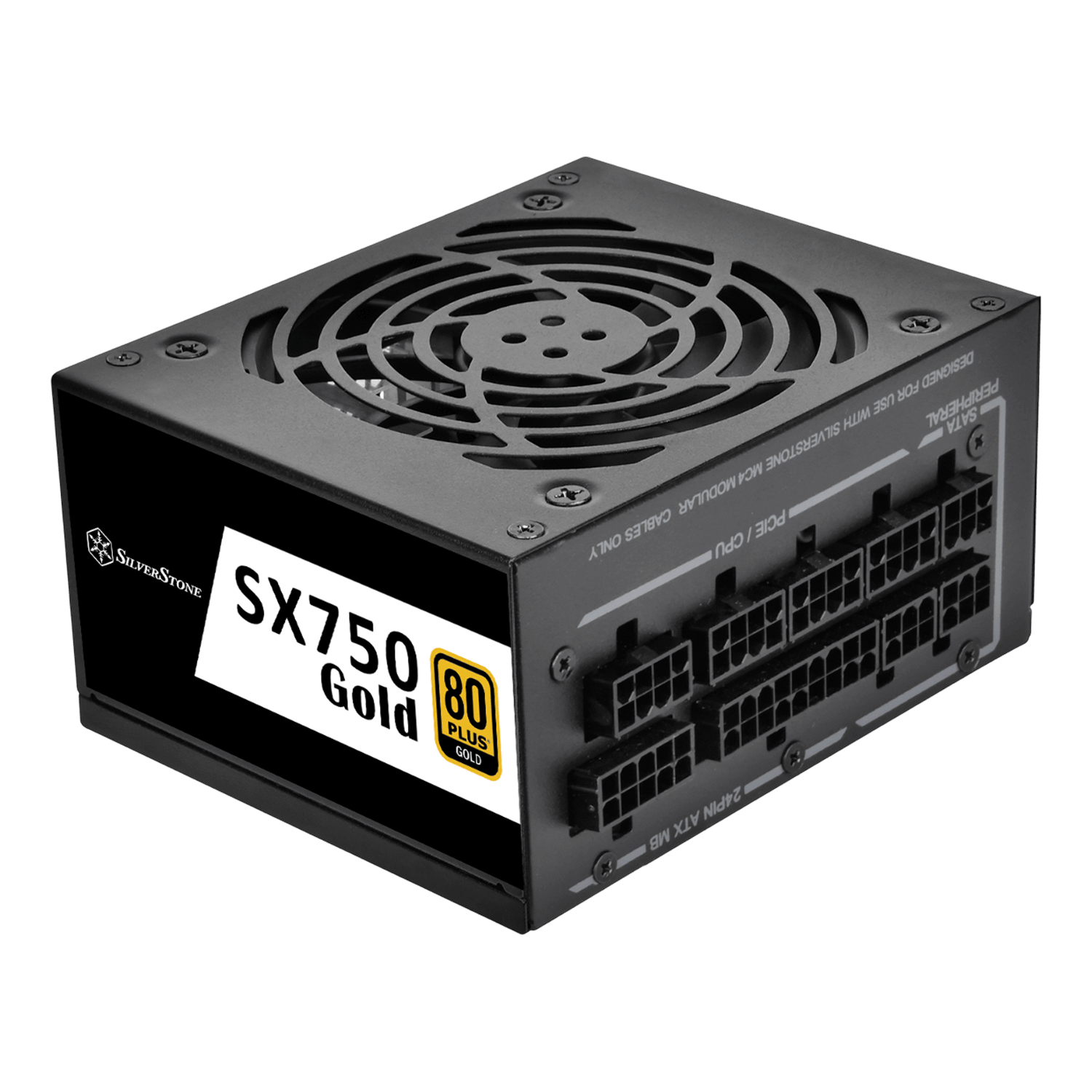

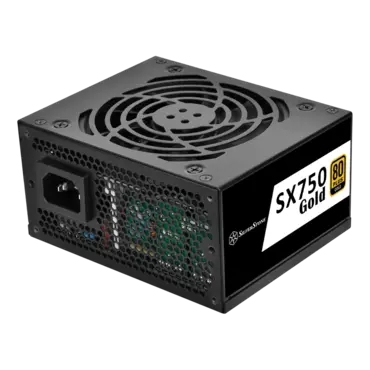

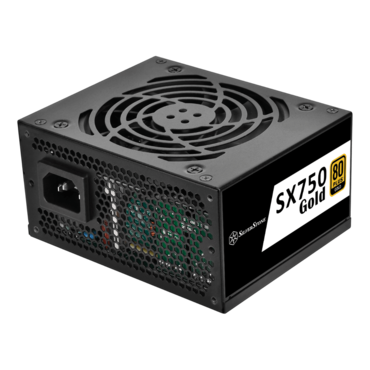

SX750, 80 PLUS Gold 750W, Fully Modular, SFX Power Supply
Quantity:
- SKU: 17784325
- Manufacturer: SILVERSTONE
- MPN: SX750-G
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$174.80
- Standard SFX form factor

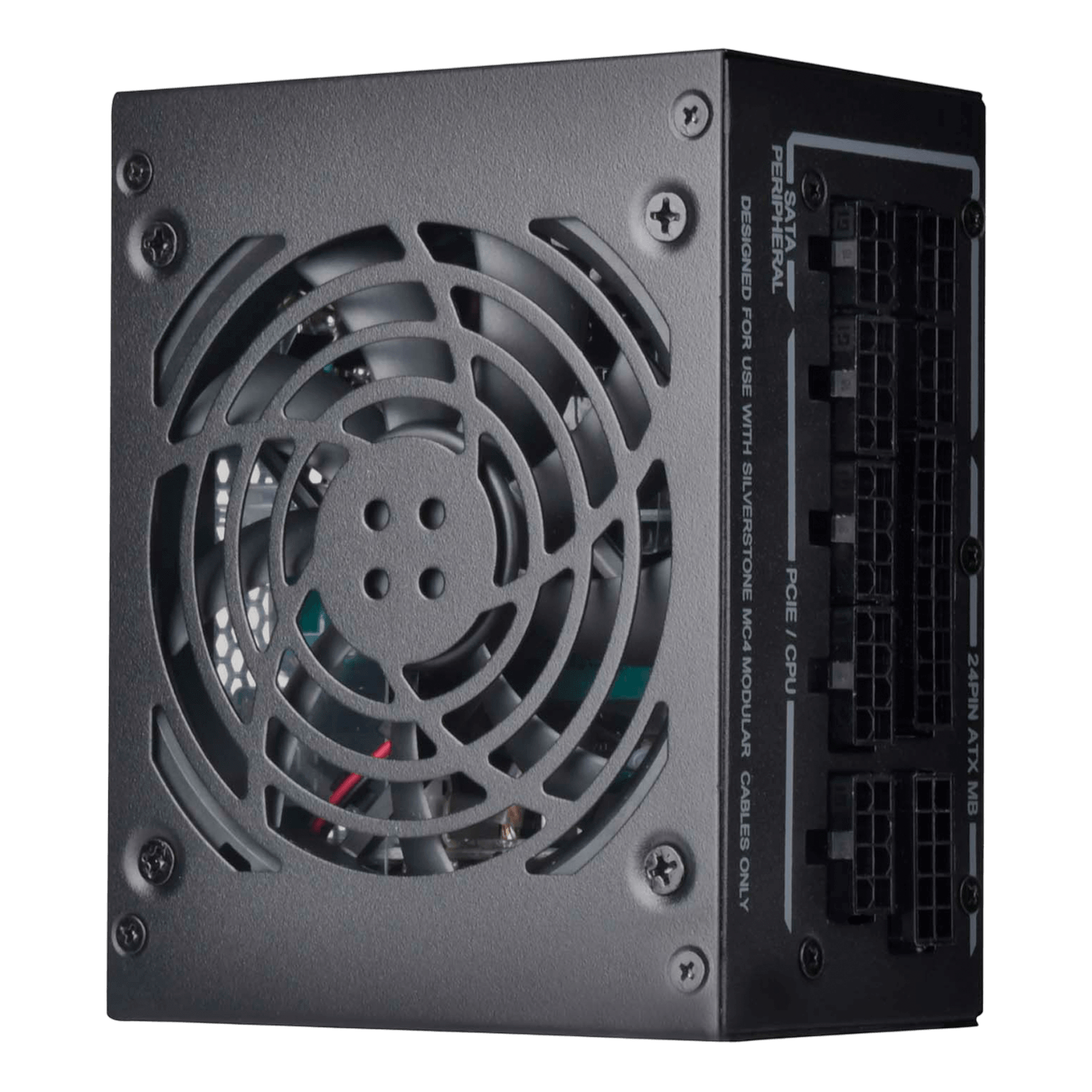

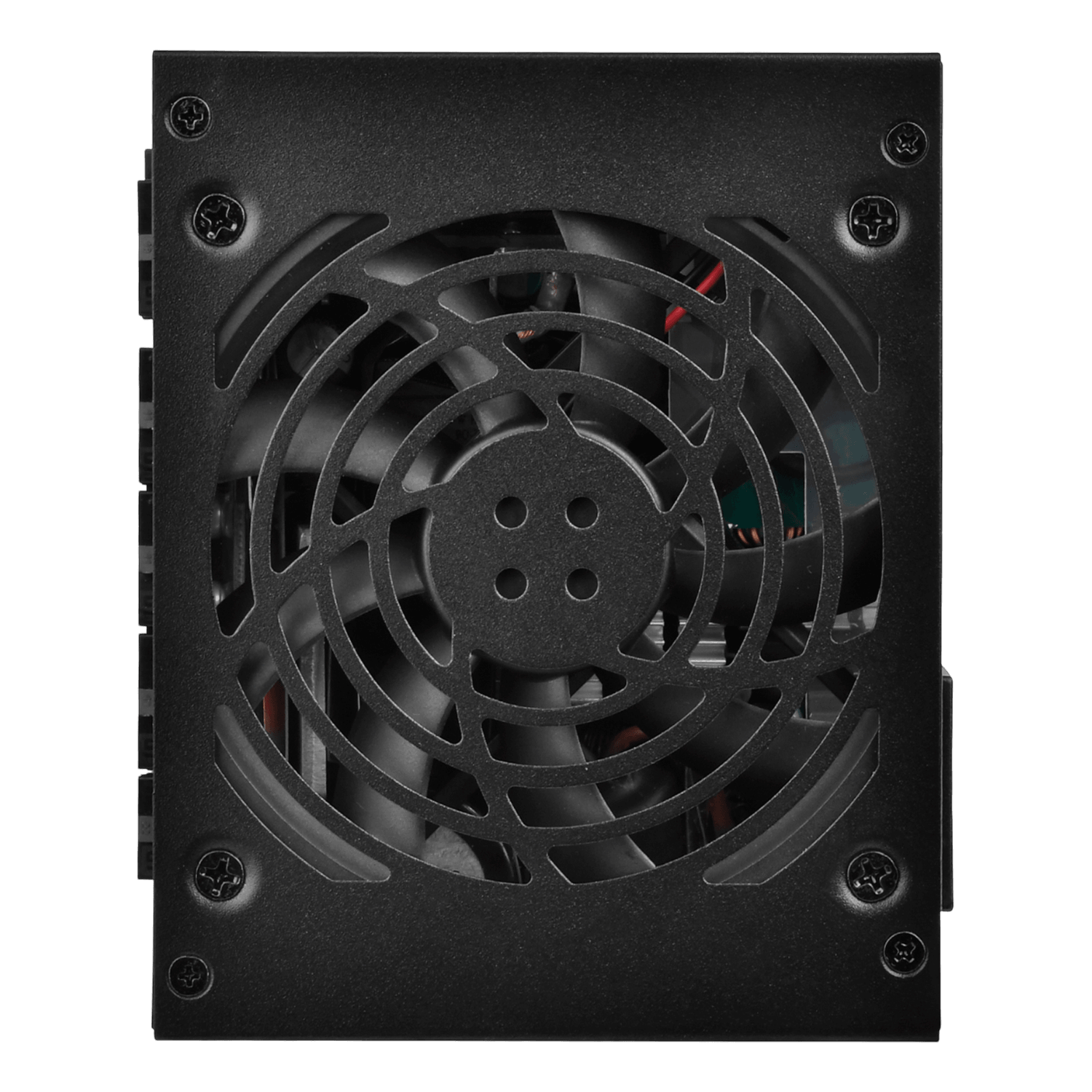

- Silent 92mm HYB fan
- All Japanese electrolytic capacitors
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- 100% modular cables
- All cables with flexible flat arrays
- 180° angled SATA connectors designed for stack mounted hard drives
| Product No. | SST-SX750-G | ||||
| Model (safety certification) | SST-SX0750MCGD-A | ||||
| Color | Black(Lead-Free Paint) | ||||
| Max. DC Output | 750W | ||||
| Power density | 945W per liter | ||||
| Combined +3.3V & +5V | 120W | ||||
| Combined +12V | 750W | ||||
| Input Voltage | 90V ~ 264V | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC (PF>0.9 at full load) | ||||
| Efficiency | 87% ~ 90% (at 20% ~ 100% loading) | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 40°C | ||||
| Protection |
Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection No load operation |
||||
| Connectors |
1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connectors 1 x 8-Pin EPS / ATX 12V connectors 4 x 8 / 6-Pin PCIe connectors 8 x SATA connectors 3 x 4-Pin Peripheral connectors 1 x 4-Pin Floppy connector * SX750 Gold is not compatible with PP05-E and PP06 cables. |
||||
| Cooling System | Silent 92mm HYB fan | ||||
| Noise Level | 18 dBA minimum | ||||
| Certification | 80 PLUS Gold | ||||
| Form factor | SFX | ||||
| Dimension | 125 mm (W) x 63.5 mm (H) x 100 mm (D) | ||||
| Weight | 1.49 kg | ||||
| Load Range | |||||
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
| Max.(Amps) | 20A | 20A | 62.5A | 2.5A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | ±3% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 80mV | 50mV | 60mV |
