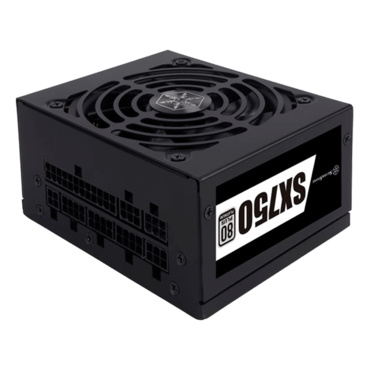

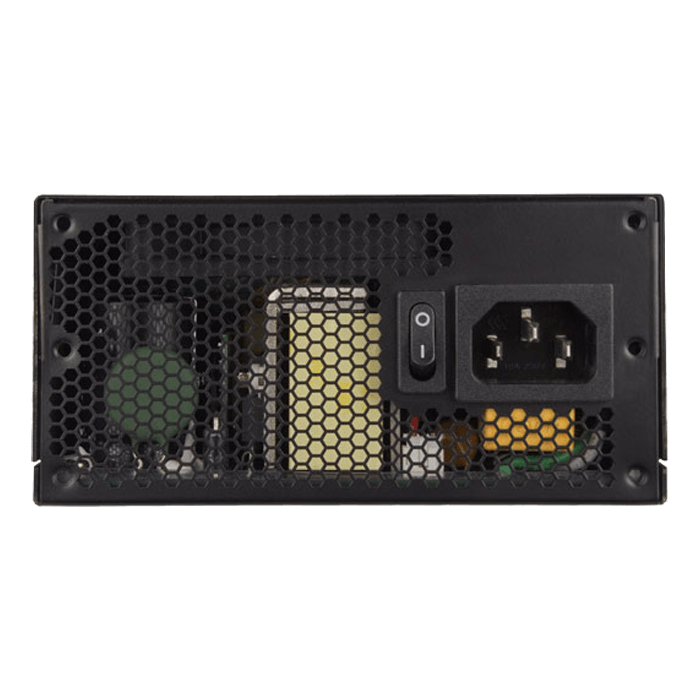

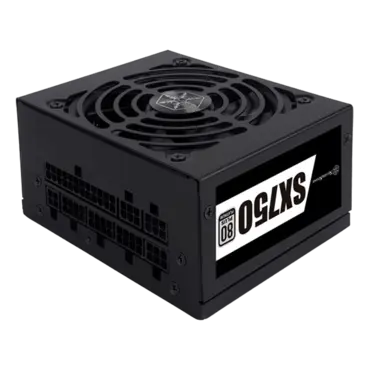

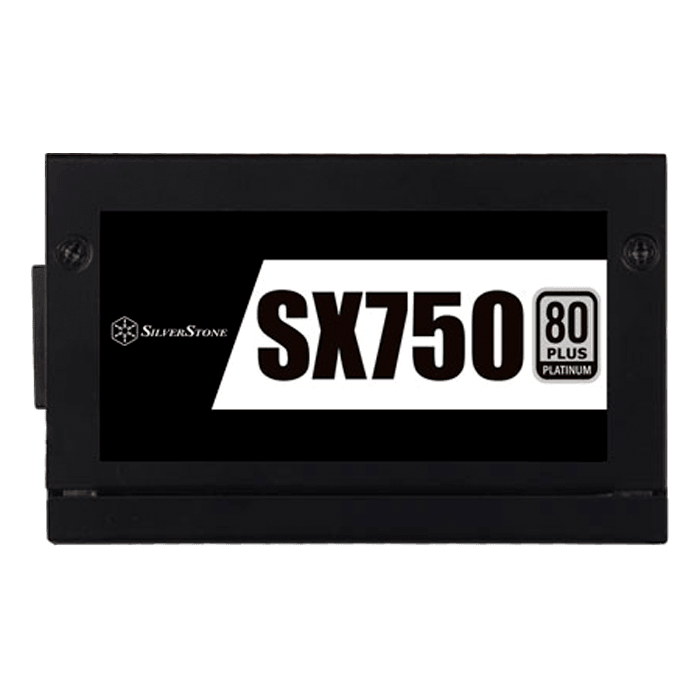

SX750, 80 PLUS Platinum 750W, Fully Modular, SFX Power Supply
Quantity:
- SKU: 13771146
- Manufacturer: SILVERSTONE
- MPN: SST-SX750-PT
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$196.65
SX750, 80 PLUS Platinum 750W, Fully Modular, SFX Power Supply
SilverStone SX750 (SST-SX750-PT). Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
- Standard SFX form factor
- Silent running 92mm dual ball bearing fan with minimum 0dBA
- All Japanese capacitors
- High efficiency with 80 PLUS Platinum certification
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- 100% modular cables
- All cables with flexible flat arrays
| Product No. |
SST-SX750-PT
|
| Max. DC Output |
750W
|
| Power density |
882W per liter
|
| Model (on safety) |
SST-SX750-PT
|
| Color |
Black(Lead-Free Paint)
|
| Combined +3.3V & +5V |
120W
|
| Combined +12V |
750W
|
| Input Voltage |
90V ~ 264V
|
| Input Frequency Range |
47Hz ~ 63Hz
|
| PFC |
Active PFC(PF>0.9 at full load)
|
| Efficiency |
89% ~ 92% at 20% ~ 100% loading
|
| MTBF |
100,000 hours
|
| Operating temperature |
0°C ~ 40°C
|
| Protection |
Over Power Protection
Over Voltage Protection Short Circuit Protection Over Temperature Protection Over Current Protection |

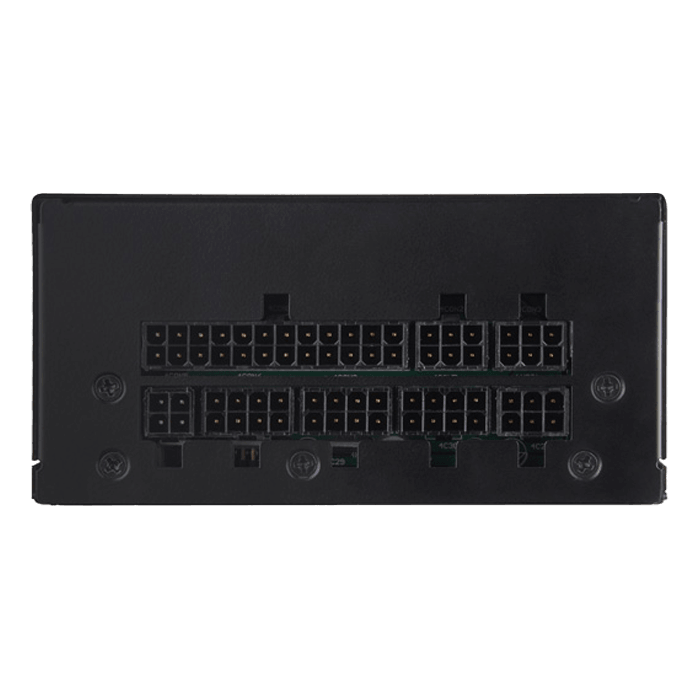

| Connectors |
1 x 24 / 20-Pin motherboard connector(300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(400mm) 2 x 8 / 4-Pin EPS / ATX 12V connector(400mm / 150mm) 4 x 8 / 6-Pin PCIE connector(”400mm / 150mm” x 2) 8 x SATA connector(”300mm / 200mm / 100mm / 100mm” x 2) 3 x 4-Pin Peripheral connector(300mm / 200mm / 200mm) |
| Cooling System |

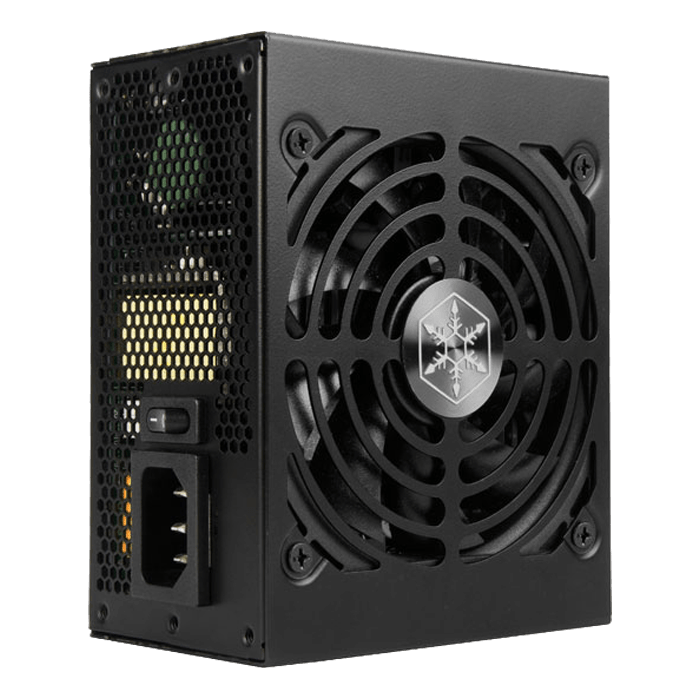

Single 92mm dual ball bearing fan
|
| Form factor |
SFX
|
| Noise Level |
0 dBA minimum
|
| Dimension |
125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D) |
| Weight |
1.01 Kg
|
| Certification |
80 PLUS Platinum
|
| Other |
GPU Support list
Compatible with ATX12V v2.4 |

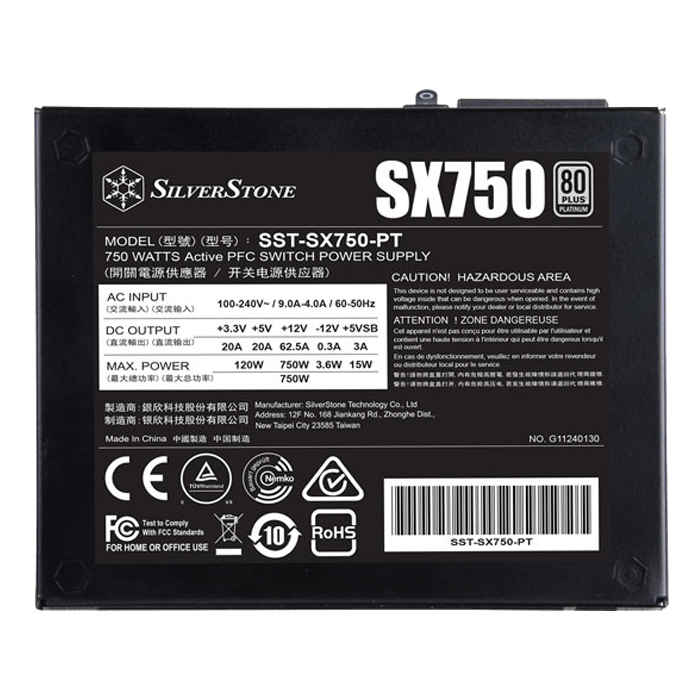

| +3.3V | +5V | +12V | +5VSB | -12V | |
|
Max.(Amps)
|
20A | 20A | 62.5A | 3A | 0.3A |
|
Peak (Amps)
|
/ | / | / | / | / |
|
Min.(Amps)
|
0A | 0A | 0A | 0A | 0A |
|
Range (%)
|
±3% | ±3% | ±3% | ±5% | ±10% |
|
Line Reg.(%)
|
±1% | ±1% | ±1% | ±1% | ±1% |
|
Ripple(mVp-p)
|
40mV | 40mV | 80mV | 50mV | 80mV |
