SY-PCI30010 2x IEEE 1394B / 1x IEEE 1394A FireWire Card, PCIe 2.0 x1, Full-height/Low-profile, Retail

Quantity:
  • SKU: 3933520
  • Manufacturer: SYBA
  • MPN: SD-PEX30009
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$32.22
Quantity:

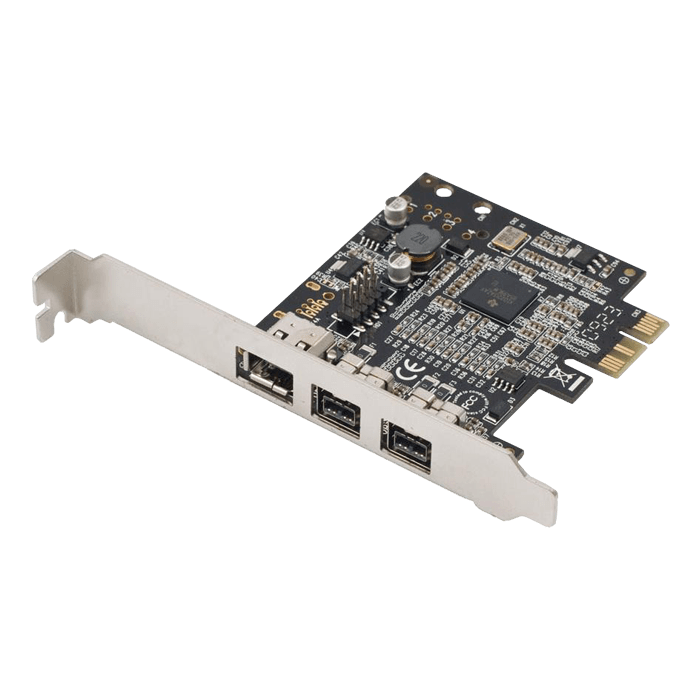

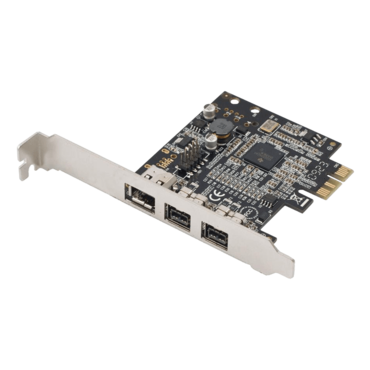

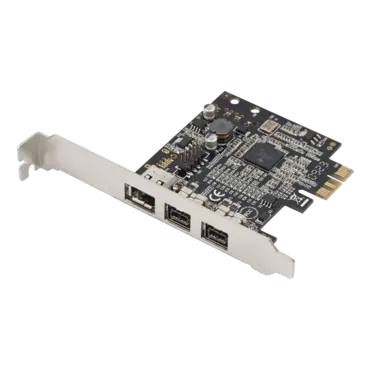

SY-PCI30010 2x IEEE 1394B / 1x IEEE 1394A FireWire Card, PCIe 2.0 x1, Full-height/Low-profile, Retail
The SYBA SD-PEX30009 offers the perfect solution for those who want to add FireWire ports to their computers. The card takes advantage of the additional bandwidth and features provided by the PCI Express I/O standard.

PCI-Express 1394B Firewire Card

Specifications:

  • 1-Lane (x1) PCI-Express with transfer rate 2.5Gbps Full Duplex channel
  • 2x 1394B firewire ports + 1x 1394A firewire port + 1x 1394A firewire internal header
  • Compliant with PCI-Express Revision 1.0a
  • Support provisions of IEEE Standard P1394b-2002
  • Compliant with 1394 Open Host Controller Interface (OHCI) specification Revision 1.1 and 1.2 draft
  • Support 800 / 400 / 200 / 100Mbps transfer rate
  • Fully Plug & Play and Hot Plug supported
  • Fully backward compatible to 1394a specification
  • Compliant with IEEE 1394a-2000 and 1394-1995 standard for a High-Performance Serial Bus
  • Fully interoperable with Firewire™, iLink™ and SB1394™ implementation of IEEE 1394 standard
  • Equipped with Bilingual IEEE Standard 1394b-2002 ports for 800Mbps data transferring
  • Software driver supports for windows 98SE/ME/2000/Server 2003/XP-32ibt/Xp-64bit, Vista 32-bit/Vista-64bit, Mac OS
  • Dimension: 6.9x5.6x1.5 Inch
  • Weight: 4.8 Oz
  • UPC: 810154012794

Included:

  • PCI-Express IEEE 1394B firewire controller card
  • user manual
  • driver CD
  • standard PCI-Express bracket
