Shadow Base 800 DX, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case
Quantity:
- SKU: 16652834
- Manufacturer: be quiet!
- MPN: BGW62
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$189.90

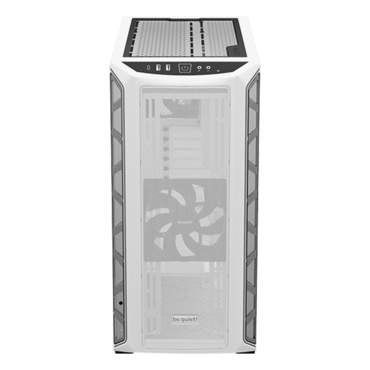

Shadow Base 800 DX, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case
Exceptional airflow, maximum space

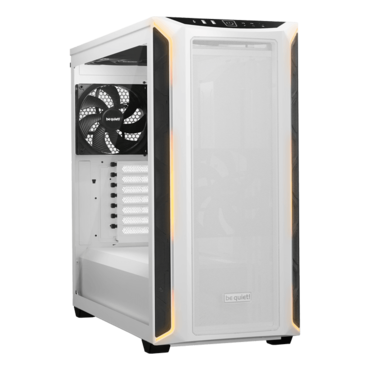

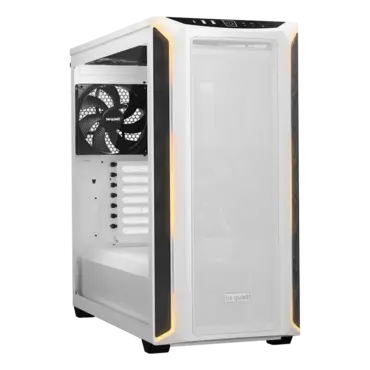

Shadow Base 800 DX White is an airflow-optimized midi-tower with ARGB LEDs at the front that offers silent operation with enough space for extensive components such as graphics cards, 420mm radiators or E-ATX motherboards.

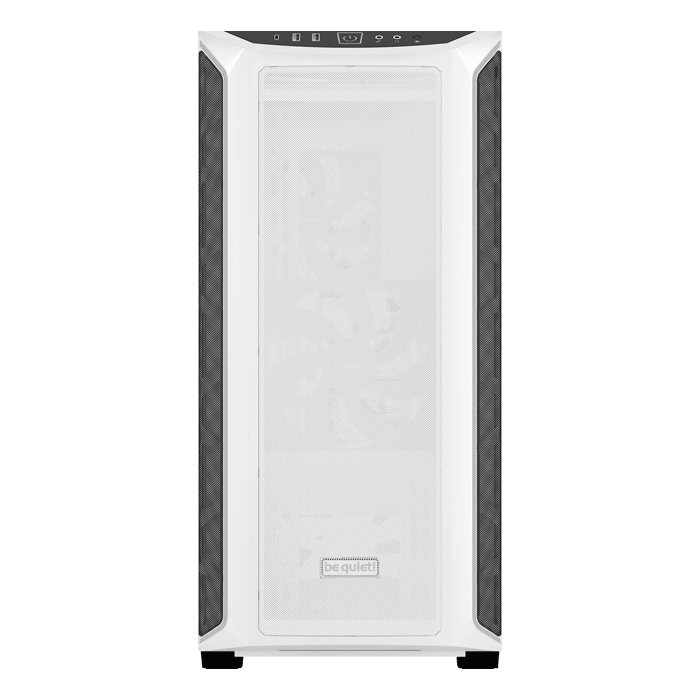

- Exceptionally high airflow thanks to an open mesh design

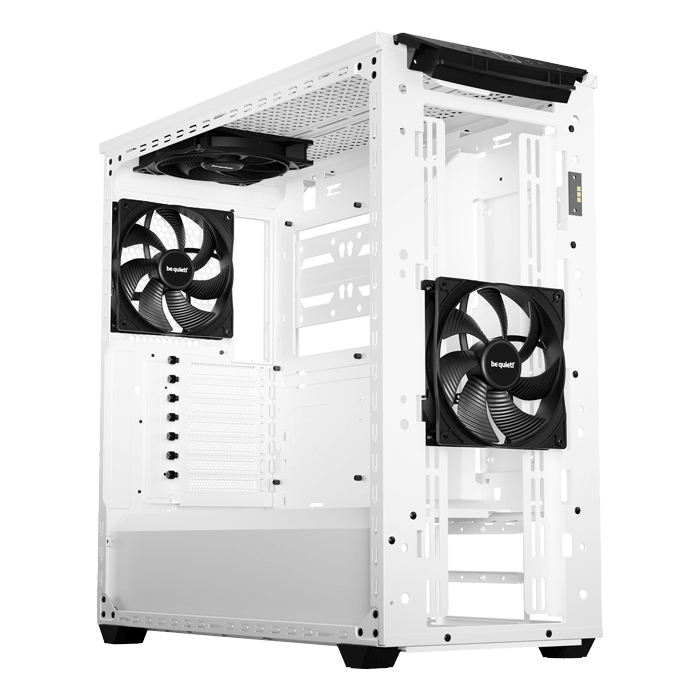

- 3 Pure Wings 3 140mm PWM fans offer high airflow with quiet operation
- Spacious design offers enough room for even the largest components
- Subtle ARGB illumination with integrated ARGB controller

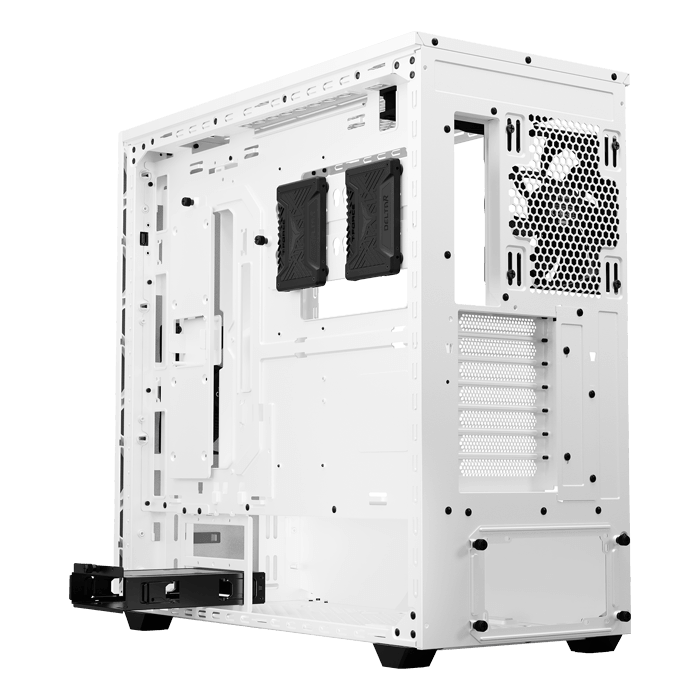

- Simple and tool-less HDD and SSD installation
- Easy to use cable bar for a tidy look
- Tempered glass side window allows a superb view
| General data | |
| Model | Shadow Base 800 DX White |
| Color option | White |
| Motherboard compatibility | E-ATX / ATX / M-ATX / Mini-ITX |
| Case size excl. stands (L x W x H), (mm) | 550 x 247 x 503 |
| Case size incl. stands (L x W x H), (mm) | 550 x 247 x 522 |
| Volume (l) | 62.74 |
| PSU form factor | ATX PS/2 |
| Weight (kg) | 11.8 |

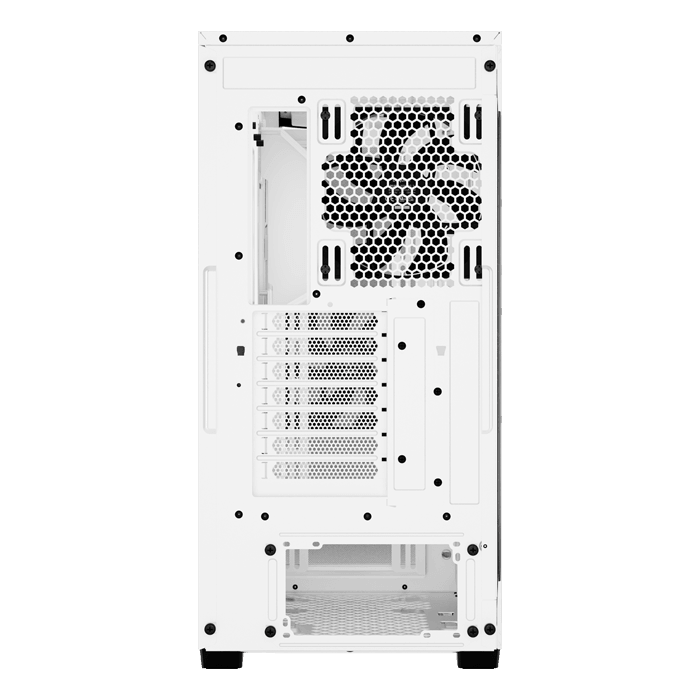

| Expansion slots | 7 |
| Pre-installed fans | |
| Fan at top | 1x Pure Wings 3 140mm PWM |
| Fan at front | 1x Pure Wings 3 140mm PWM |
| Fan at side | - |
| Fan at rear | 1x Pure Wings 3 140mm PWM |
| Fan at bottom | - |
| Dimensions (L x W x H), (mm) | Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25 |
| Fan speed at 100% PWM / 12V (rpm) | 1200 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 57.4 / 97.5 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 0.96 |
| Noise level at 100% PWM / 12V (dB(A)) | 21.9 |
| Voltage range (V DC) | 5 - 13.2 |
| Input power (W) | 3.6 |
| Input current (A) | 0.3 |
| Connector | 4-pin PWM |
| Lifespan (h / 25°C) | 80,000 |
| Fan controller | - |
| Maximum fan installation | |
| Maximum fans | 8 |
| Top (mm) | 3x 140 / 3x 120 |
| Front (mm) | 3x 140 / 3x 120 |
| Side (mm) | - |
| Rear (mm) | 1x 140 / 1x 120 |
| Bottom (mm) | 1x 140 / 1x 120 |
| PSU shroud | - |
| Optional radiator installation | |
| Top (mm) | 120 / 140 / 240 / 280 / 360 / 420 |
| Front (mm) | 120 / 140 / 240 / 280 / 360 / 420 |
| Side (mm) | - |
| Rear (mm) | 120 |
| Bottom (mm) | - |
| PSU compatibility | |
| Maximum dimensions excl. bottom fan (mm) | 305 |
| Maximum dimensions incl. bottom fan (mm) | 260 |
| Graphics card | |
| HDD cage (in height of graphics card) installed (mm) | 430 |
| HDD cage (in height of graphics card) removed (mm) | 430 |
| Maximum PCIe slots with vertical graphics card (pcs.) | 7 |
| Drive bay capacity | |
| 5.25 bays (pcs.) | - |
| 3.5 slots (scope of delivery) | 2 |
| 3.5 slots (max.) | 4 |
| 2.5 slots (scope of delivery) | 4 |
| 2.5 slots (max.) | 8 |
| Cooling | |
| Max.construction height of CPU cooler unit (mm) | 180 |
| Airflow channel | Front / Top / Rear / Bottom |
| Lighting | |
| LED illumination | √ |
| LEDs (pcs.) | 40 |
| LED type | ARGB - 5V |
| LEDs synchronizable with controller/motherboard | √ |

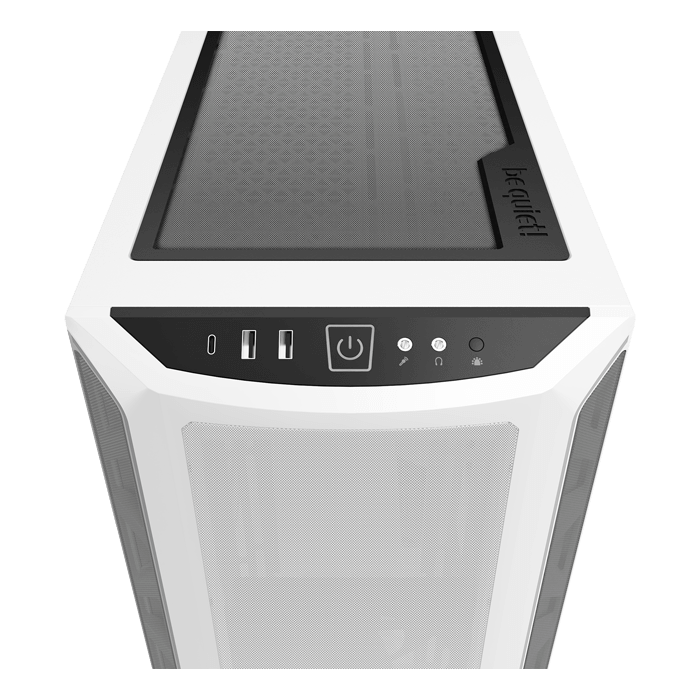

| I/O Panel | |
| USB 3.2 Gen. 2 Type C | 1 |
| USB 3.2 Type A | 2 |
| USB 2.0 | - |
| HD Audio I/O | Mic + Audio |
| Qi charger / Quick Charging Option | - |
| Insulation and damping | |
| Top panel insulation mats | - |
| Front panel insulation mats | - |
| Side panel insulation mats | √ |
| Anti-vibration decoupled HDD | √ |
| Anti-vibration decoupled fan | √ |
| Anti-vibration decoupled PSU | √ |
| Anti-vibration decoupled motherboard-tray | - |
| Removeable dust filters | |
| Top | - |
| Front | 1 |
| Side | - |
| Bottom | 1 |
| Material | |
| Top cover | ABS |
| Front panel | ABS |
| Side panel | Steel |
| Side panel window | 4mm Tempered Glass |
| Stands | ABS |
| Safety certification | |
| Approvals | CE, UKCA |
| Environmental directives | |
| RoHS | √ |
| Reach | √ |
| WEEE | √ |
| Triman | √ |
| Scope of delivery | |
| Screw set (Drives/Motherboard) | √ |
| Additional standoffs (pcs.) | - |
| SSD bracket for PSU shroud | - |
| LED strips (pcs.) | - |
| Cable ties (pcs.) | 6 (Velcro) / 4 (Velcro) |
| Screw box | - |
| VGA holder | - |
| VGA holder for inverted layout | - |
| Mesh Front Panel | - |
| ODD Bracket | - |
| Fan / Radiator bracket for multi mounting panel | - |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | √ / DE, FR |
| Logistics data and RRP | |
| Article number | BGW62 |
| EAN code | 4260052190623 |
| Dimensions, package (L x W x H), (mm) | 575 x 319 x 628 |
| Gross weight, package (kg) | 13.2 |
| Pieces per packaging unit | 1 |
