Shadow Rock LP, 75.4mm Height, 130W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 11180192
- Manufacturer: be quiet!
- MPN: BK002
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$54.74
As low as $4.56/ Month*

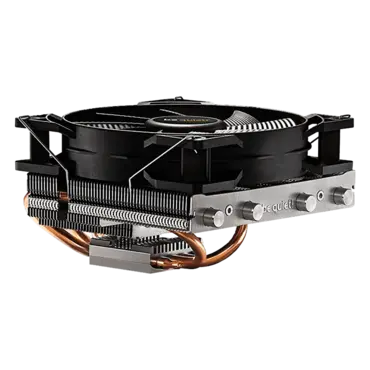

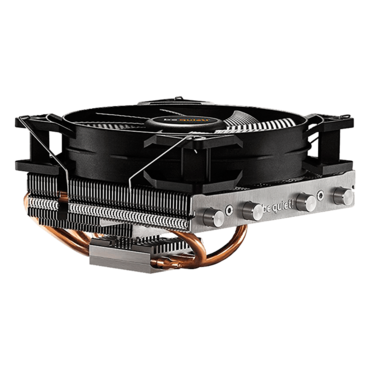

Shadow Rock LP, 75.4mm Height, 130W TDP, Copper/Aluminum CPU Cooler
Compact Cooling, Significant Quiet
Fitting everything you want into a HTPC or small form factor PC can be tough, but quietly cooling those cramped components is a far tougher proposition. The ultra-compact Shadow Rock LP premium CPU cooler efficiently and economically solves this special problem.
If you are seeking the best possible mix of premium cooling performance for restricted space situations, remarkably quiet operations, eye-catching design, and a highly attractive price in the compact CPU cooler segment, seek no further. Shadow Rock LP is the new cooler for you.
High Cooling Efficiency
- High compact cooling capacity of 130W TDP
- Four high-performance 6mm heat pipes carry heat to the optimal locations on the cooling fins
Low-Noise Operation
- A silence-optimized Pure Wings 2 120mm PWM fan supports the best balance of cooling performance and quiet operation
- Nine silence-optimized fan blades with high airflow capabilities reduce noise-generating turbulences
- Durable rifle-bearing technology contributes to a long lifespan of up to 80,000 hours
- Even at 100% full fan speed, overall noise is a scant 25.5dB(A)
Highly Compatible, Highly Convenient and Compact Design
- Low-profile design saves space and allows easy access to components even within the tight confines of compact PC enclosures
- Design supports mounting from atop the mainboard, greatly increasing convenience
- Compatibility with all current Intel® and AMD™ sockets
| General | |
|---|---|
| Model | Shadow Rock LP |
| Main Specification | |
| Overall dimensions without mounting material (L x W x H), (mm) | 134 x 122 x 75.4 |
| Total weight (kg) | 0.39 |
| TDP (W) | 130 |
| Socket compatibility | Intel: 775 / 115X / 1366 / LGA2011 Square ILM / 2066
AMD: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+) |
| Backplate Mounting | ✓ |
| Fan model, number | 1x Pure Wings 2 PWM 120mm |
| Decoupled fan mounting | - |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 14.8 / 18.6 / 25.5 |
| Heatsink specifications | |
| Dimensions (mm) | 134 x 122 x 50.4 |
| Number of fins | top: 54 ; bottom: 34 |
| Fin material | Aluminum |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 4 / 6 |
| Surface treatment | - |
| Fan specifications | |
| Fan dimensions (mm) | 120 x 120 x 25 |
| +SilentWings | - |
| Speed @ 100% PWM (rpm) | 1,500 |
| Air flow @ 12V (cfm / m3/h) | 48.96 / 83.13 |
| Air pressure @ 12V (mm H2O) | 1.25 |
| Bearing type | Rifle |
| Motor technology | 4-pole fan motor |
| Rated voltage (V) | 12 |
| Input current (A) | 0.2 |
| Input power (W) | 2.4 |
| Connector | 4-pin PWM |
| Cable length (mm) | 220 |
| Lifespan (h / 25°C) | 80,000 |
| Accessories | |
| Thermal grease (g) | - (already applied) |
| Backplate mounting set Intel & AMD | ✓ |
| Y-Cable | - |
| User manual languages | EN, DE, FR, PL, ES, RU |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
| Logistics Data, RRP | |
| Article number | BK002 |
| Range | SHADOW ROCK |
| EAN code | 4260052184226 |
| Dimensions, package (L x W x H), (mm) | 160 x 140 x 170 |
| Gross weight, package (kg) | 0.82 |
| Pieces per packaging unit | 18 |
| Dimensions, shipping box (L x W x H), (mm) | 500 x 360 x 436 |
| Gross weight, shipping box (kg) | 15.9 |
