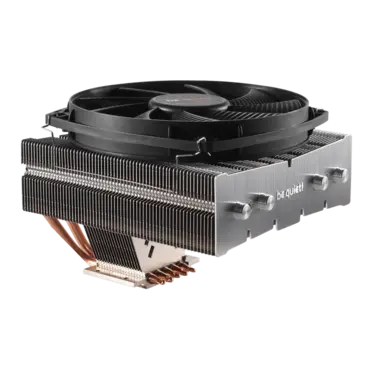

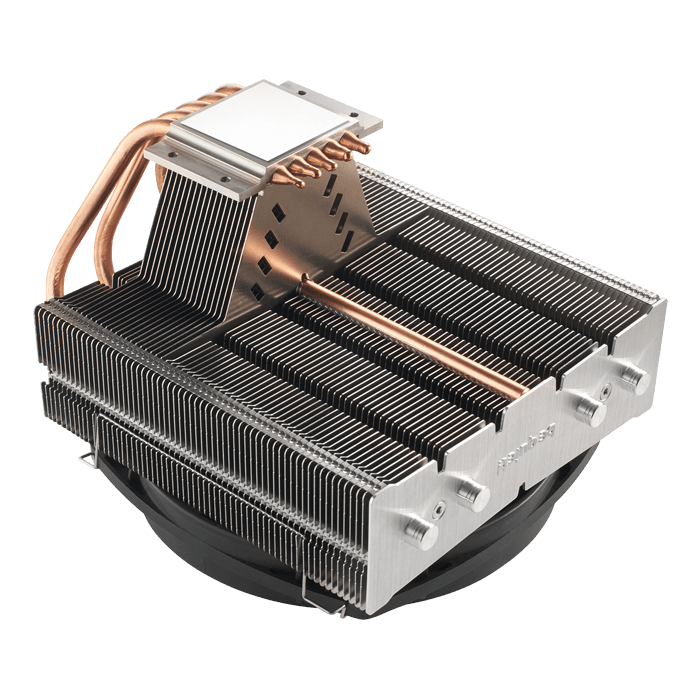

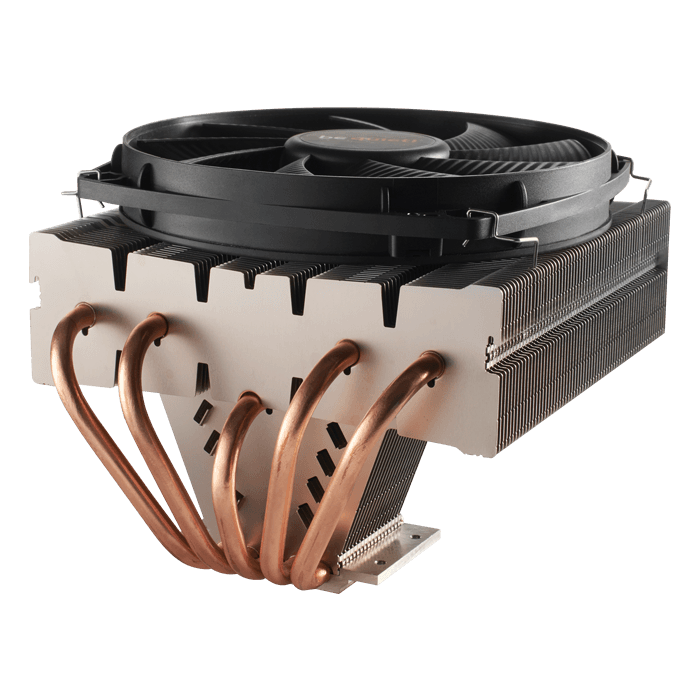

Shadow Rock TF 2, 112mm Height, 160W TDP, Copper/Aluminum CPU Cooler

SKU: 12271215

Manufacturer: be quiet!

MPN: ABK003

Availability: Low Stock


Price: $65.77
or as low as $2/month
Quantity:

Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment

  • Space-saving top-flow construction
  • Very high cooling capacity of 160W TDP
  • Direct connection of baseplate to cooling fins for fast heat transfer
  • Small, diagonally arranged fins create an airflow that ensures perfect cooling for components near to the socket
  • Silence-optimized 135mm be quiet! fan (max. 24.4dB(A)) with durable rifle-bearing technology
  • Five high-performance 6mm heat pipes
  • Compatibility with Intel® and AMDTM sockets
  • 3-year manufacturer’s warranty
General data
Model Shadow Rock TF 2
Overall dimensions without mounting material (L x W x H), (mm) 137 x 165 x 112
Total weight (kg) 0.68
TDP (W) 160
Socket compatibility Intel: LGA 775 / 115x / 1366 / 2011(-3) Square ILM / 2066
AMD: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)
Fan model, number 1x silence-optimized be quiet! fan
Decoupled fan mounting -
Overall noise level (dB(A)) @ 50/75/100% (rpm) 11.9 / 19.3 / 24.4
Heatsink specifications
Dimensions (L x W x H), (mm) 137 x 165 x 87
Number of fins 57
Fin material Aluminum
Base material Copper
CPU contact surface CNC machined
Heatpipe number / Diameter (mm) 5, 6
Surface treatment -
Fan specifications
Fan dimensions (mm) 135 x 135 x 22
+SilentWings -
Speed @ 100% PWM (rpm) 1,400
Bearing technology Rifle
Motor technology 4-pole fan motor
Rated voltage (V) 12
Input current (A) 0.11
Input power (W) 1.32
Connector 4-pin PWM
Cable length (mm) 200
Lifespan (h / 25°C) 80,000
Accessories
Thermal grease (g) - (already applied)
Mounting set Intel & AMD
Y-Cable -
User manual languages DE, EN, FR, PL, ES, RU
Service
Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR
Logistics data, RRP
Article number BK003
EAN code 4260052185391
Dimensions, package (L x W x H), (mm) 203 x 178 x 130
Gross weight, package (kg) 1.09
Pieces per packaging unit 12
Dimensions, shipping box (L x W x H), (mm) 551 x 422 x 282
