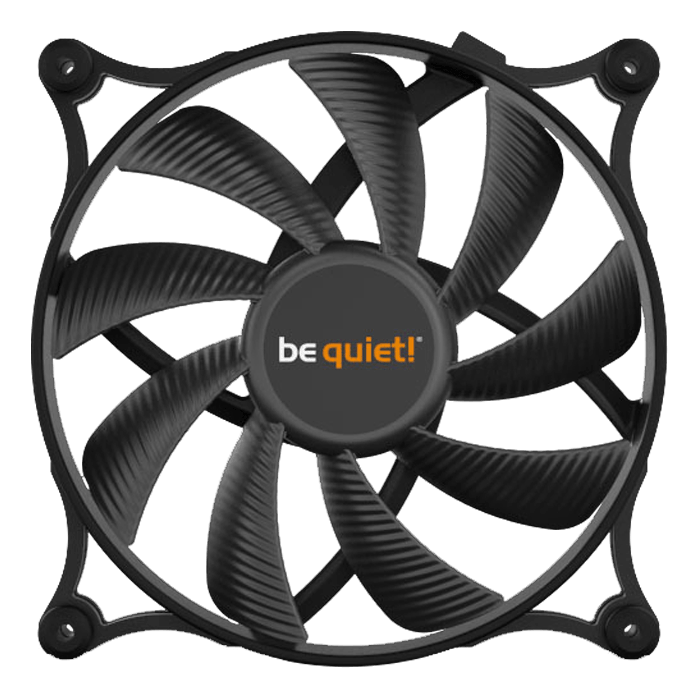

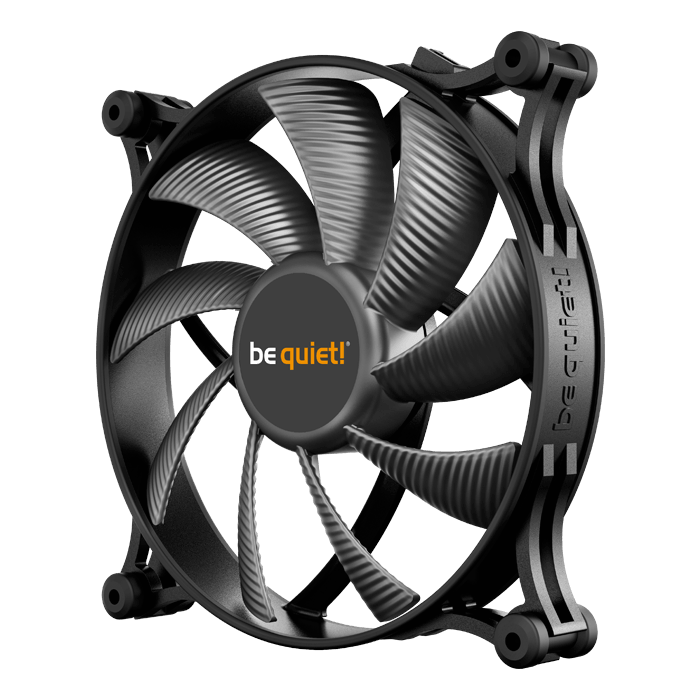

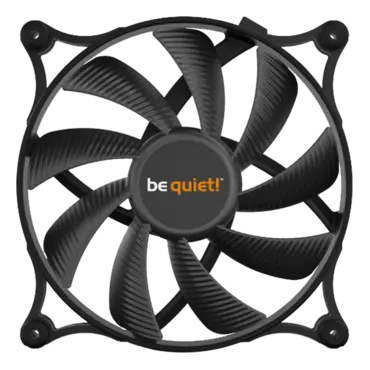

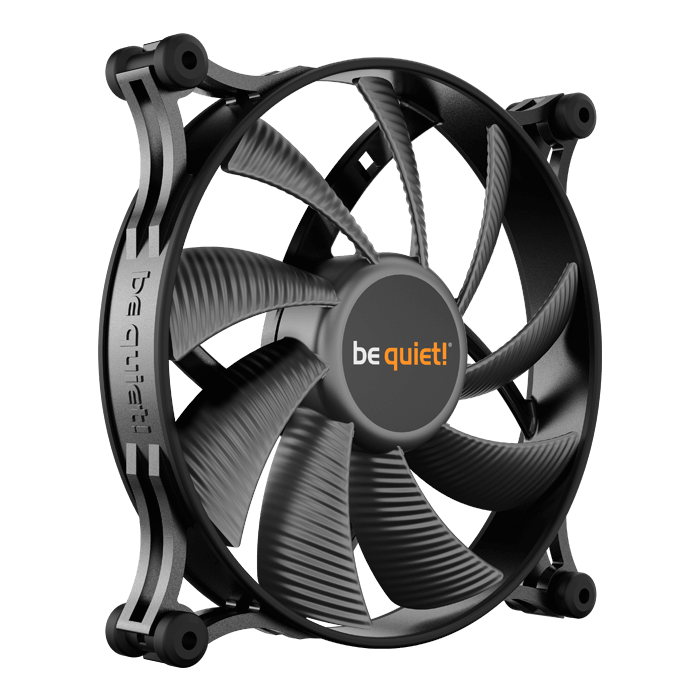

Shadow Wings 2 140mm PWM, 900 RPM, 85 CFM, 14.9 dBA, Cooling Fan
Quantity:
- SKU: 12631535
- Manufacturer: be quiet!
- MPN: BL087
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$16.90
- Low-noise operation of up to 14.9dB(A)
- Airflow-optimized fan blades
- Anti-vibration mounting system prevents transmission of vibrations
- Rubberized fan frame minimizes vibrations
- High-grade rifle-bearing technology
- Secure and easy installation with push-pins
- PWM controlled fan speed through the motherboard
- Product conception, design and quality control in Germany
- 3-year manufacturer’s warranty
| Mechanical specifications | |
| Dimensions (L x W x H), (mm) | 140 x 140 x 25 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Weight incl. fixed cables (kg) | 0.175 |
| Push pin fixing | ✔ |
| Screw fixing | - |
| Cables / Connectors | |
| Connector | 4-Pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
| Performance / Noise | |
| Air flow @ 100% of "PWM / 12V (cfm / m3/h) | 49.8 / 85 |
| Air pressure @ 100% PWM / 12V (mm H2O) | 0.58 |
| Noise level @ 100% PWM / 12V (dB(A)) | 14.9 |
| Lifespan (h / 25°C) | 80000 |
| Electrical specifications | |
| Rated voltage DC (V) | 12 |
| Operating voltage DC (V) | 6 - 12 |
| Current consumption (A) | 0.30 |
| Safety current (A) | 0.30 |
| Input power (W) | 3.60 |
| Accessories | |
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | - |
| Push pins | 4 |
| Silica gel washer | 4 |
| Others | - |
| Safety certification | |
| Approvals | CE,TÜV,UL |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | ✔ / DE, FR |
| Logistics data, RRP | |
| Article number | BL087 |
| EAN code | 4260052186893 |
| Dimensions, package (L x W x H), (mm) | 175 x 140 x 28 |
| Gross weight, package (kg) | 0.202 |
| Pieces per packaging unit | 72 |
| Dimensions, shipping box (L x W x H), (mm) | 460 x 380 x 340 |
| Gross weight, shipping box (kg) | 15.63 |
