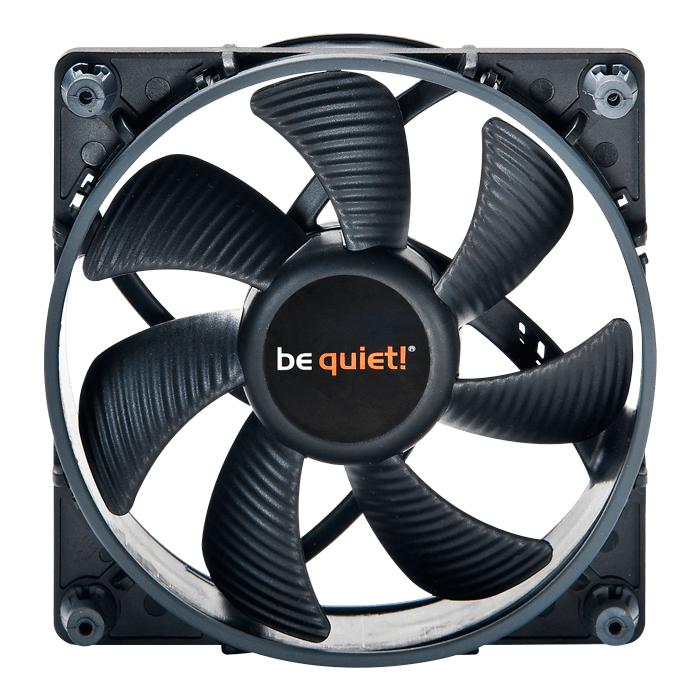

Shadow Wings SW1 120mm, 1500 RPM, 50.5 CFM, 18.9 dBA, Cooling Fan
- SKU: 12128507
- Manufacturer: be quiet!
- MPN: BL026
- Availability: CURRENTLY UNAVAILABLE
Shadow Wings SW1 120mm, 1500 RPM, 50.5 CFM, 18.9 dBA, Cooling Fan
be quiet! Shadow Wings 120mm PWM offers whisper-quiet operation for gaming or entertainment PCs and home theater systems.
- Low-noise operation of up to 18.9dB(A)
- Reliable rifle-bearing technology
- Airflow-optimized surface structure of the fan blades
- PWM controlled fan speed through the motherboard
- Simple assembly due to screwless installation
- High-quality IC motor controller reduces electrical noise
- Rubberized fan frame for less vibration
- Product conception, design and quality control in Germany
- 3-year manufacturer’s warranty
| General data | ||
|---|---|---|
| Model | SHADOW WINGS SW1 120mm 1500rpm | |
| Dimensions (mm) | 120 | |
| +SilentWings | - | |
| Fan speed @ 12V (rpm) | 1,500 | |
| Air flow @ 12V (cfm / m3/h) | 50.5 / 85 | |
| Air pressure @ 12V (mm H2O) | 1.63 | |
| Noise level @ 12V (dB(A)) | 18.9 | |
| Mechanical specifications | ||
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 | |
| Bearing technology | Rifle | |
| Motor technology | 4-pole fan motor | |
| Weight incl. fixed cables (kg) | 0.22 | |
| Push pin fixing | ✓ | |
| Screw fixing | - | |
| Cables / Connectors | ||
| Connector | 4-pin PWM | |
| Cable length (mm) | 450 | |
| Cable sleeve | - | |
| Performance / Noise | ||
| Air flow @ 12V (cfm / m3/h) | 50.5 / 85 | |
| Air pressure @ 12V (mm H2O) | 1.63 | |
| Noise level @ 12V (dB(A)) | 18.9 | |
| Lifespan (h / 25°C) | 200.000 | |
| Electrical specifications | ||
| Rated voltage DC (V) | 12 | |
| Operating voltage DC (V) | 5 ~ 12 | |
| Current consumption (A) | 0.09 | |
| Safety current (A) | 0.20 | |
| Input power (W) | 1.08 | |
| Accessories | ||
| 3-pin to 4-pin 12V-connector | - | |
| 12V to 7V adapter | - | |
| 12V to 5V adapter | - | |
| Screws | - | |
| Push pins | 5 | |
| Silica gel washer | 5 | |
| Others | - | |
| Safety certification | ||
| Approvals | CE, RoHS, WEEE, RU, Tüv | |
| Service | ||
| Warranty (Years) | 3 | |
| International hotline / free of charge | ✓ / DE, FR | |
| Logistics data, RRP | ||
| Article number | BL026 | |
| EAN code | 4260052182666 | |
| Dimensions, package (L x W x H), (mm) | 185 x 124 x 41 | |
| Gross weight, package (kg) | 0.234 | |
| Pieces per packaging unit | 48 | |
| Dimensions, shipping box (L x W x H), (mm) | 400 x 395 x 370 | |
| Gross weight, shipping box (kg) | 11.24 | |
