Shuttle X1 (DKA1GH7), Intel Core i7-7700HQ, 2x DDR4 SO-DIMM (2 x 8GB pre-installed), M.2 (256GB pre-installed), 2.5" HDD/SSD, NVIDIA® GeForce GTX 1060 3GB, Mini PC Barebone
- SKU: 11501142
- Manufacturer: SHUTTLE
- MPN: DKA1GH7
- Availability: TEMPORARILY OUT OF STOCK
Price
$1,640.27
| FORM FACTOR | Shuttle Small Form Factor |
|---|---|
| PROCESSOR | Intel® Core® i7-7700HQ |
| CHIPSET | HM175 |
| MEMORY | DDR4-2400 MHz SODIMM x2
16GB per DIMM (MAX. 32GB) |
| VIDEO OUTPUT | (1) DisplayPort+(3)HDMI+(1)Type-C Supports five displays |
| AUDIO | Realtek ALC269Q 2Channel HD |
| ETHERNET | RTL8111G-CG
10Mb/s, 100Mb/s and 1000Mb/s operation Supports Wake-On-LAN Intel 3165 802.11 a/b/g/n/ac WLAN module |
| STORAGE INTERFACE | 6.0Gb/s bandwidth SATA3 |

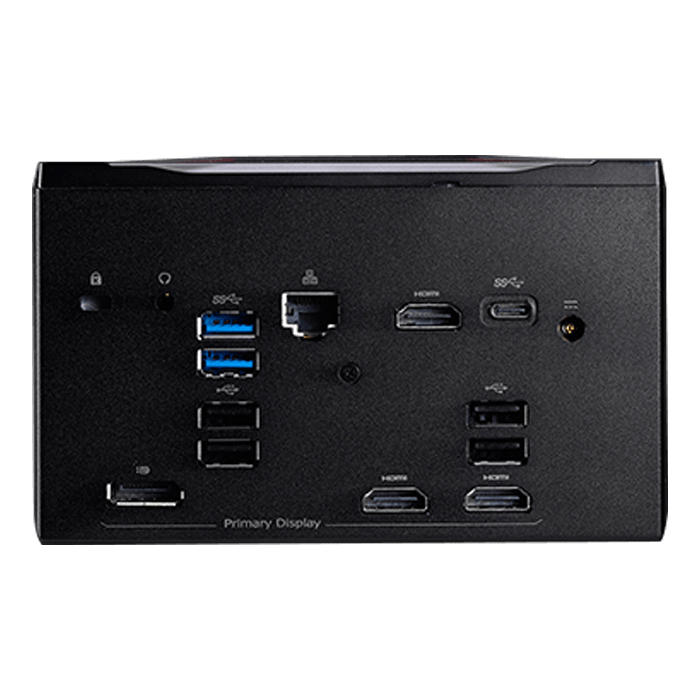

| BACK PANEL | (2) USB 3.0
(4) USB 2.0 (1) RJ-45 10/100/1000 Ethernet (1) Type-C (support data transmission and display/audio function) (3) HDMI 1.4 (1) DisplayPort (1) DC in jack (1) Kensington lock (1) Combo Jack 3.5mm for external Microphone and Headphone |
| DRIVE BAYS | (1) M.2 2280 M Key socket for SSD
(1) 2.5'HDD/SSD Bay |
| DIMENSIONS | 143(L)x143(W)x87(H) mm |
| POWER | Input : 100 - 240V AC
Output : 19.5V/9.23A 180W adapter |
| ACCESSORIES | (1) Power cord
(1) Power adapter (1) Driver DVD (1) Quick start guide (1) HDD cable and screws (optional) |
| EXPANSION SLOT | (1) M.2 2230 A,E Key socket for WLAN module |
| OS SUPPORT | Windows 10 |
