General data |
Model |

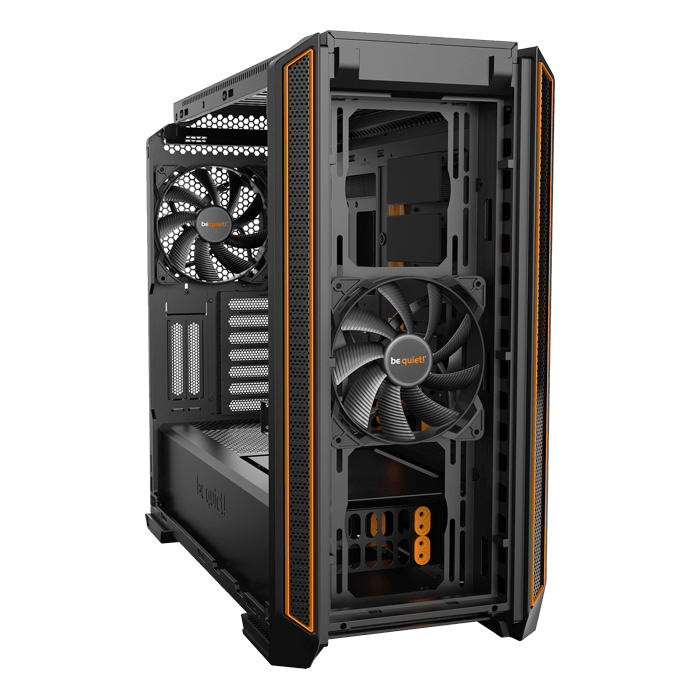

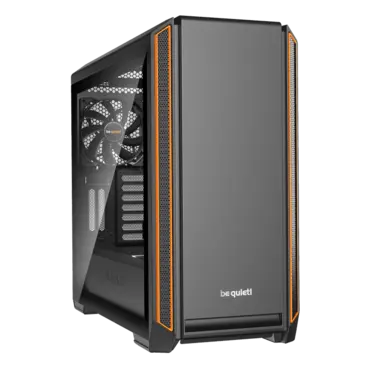

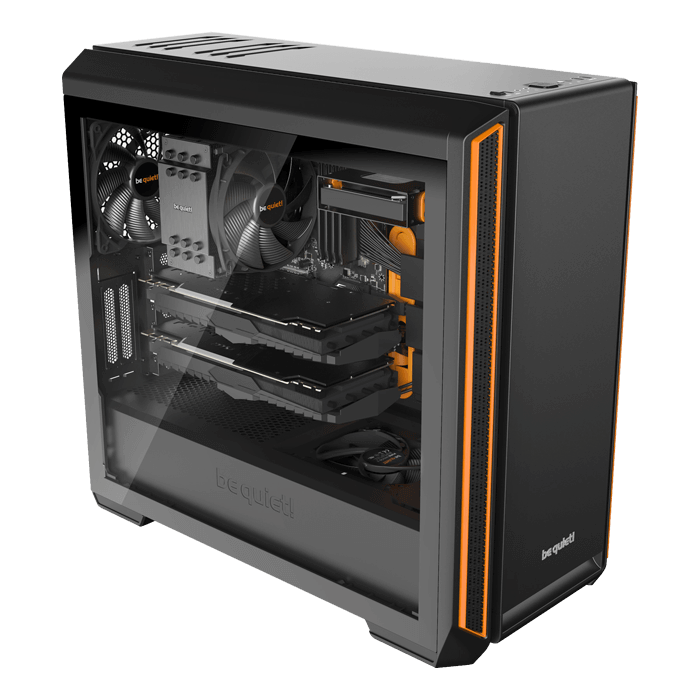

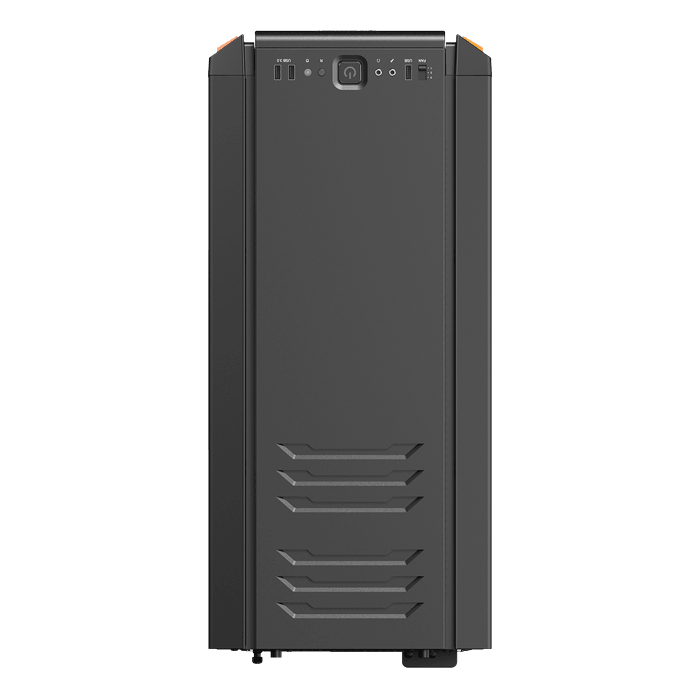

Silent Base 601 Window | Orange |
PSU form factor |
ATX PS/2 |
Motherboard compatibility |
E-ATX, ATX, M-ATX, Mini-ITX |
Case size excl. stands (L x W x H), (mm) |
532 x 240 x 481 |
Installation of motherboards with backplate |
✔ |
Case size incl. stands (L x W x H), (mm) |
532 x 240 x 514 |
Dimensions side panel window (L x W), (mm) |
440 x 498 |
Color option |
Orange |
Weight (kg) |
11.22 |
USB 2.0 |
1 |
USB 3.0 |
2 |
USB 3.1 Gen 2 Type C |
- |
HD Audio I/O |
1 |
Expansion slots |
7+2 |
Fan mounting locations |
Front, Rear, Top, PSU Shroud |
Qi charger / Quick Charging Option |
- |
Material |
Top cover |
ABS, Steel |
Side panel |
- |
Side panel window |
4mm tempered glass, Steel |
Front panel |
ABS, Steel |
Stands |
ABS |
Drive bay capacity |
5.25 bays |
- |
3.5 slots (max.) |
7 |
3.5 slots (scope of delivery) |
3 |
2.5 slots (max.) |
14 |
2.5 slots (scope of delivery) |
6 |
Pre-installed fans |
Fan @ front |
1x be quiet! Pure Wings 2 |140mm |
Fan @ rear |
1x be quiet! Pure Wings 2 |140mm |
Dimensions (L x W x H), (mm) |
Front: 140 x 140 x 25, Rear: 140 x 140 x 25 |
Fan speed @ 12V (rpm) |
1,000 |
Noise level @ 12V (dB(A)) |
18.8 |
Airflow @ 12V (cfm / m3/h) |
61.2 / 104 |
Air pressure @ 12V (mm H2O) |
0.76 |
Voltage range (V DC) |
5-12 |
Input power (W) |
1.44 |
Input current (A) |
0.12 |
Connector |
3-pin |
Lifespan (h / 25°C) |
80,000 |
Fan controller |
3-step fan controller (3x 3-pin) |
Optional fan installation |
Front (mm) |
2x 140/120 |
Top (mm) |
3x 140/120 |
Bottom (mm) |
- |
Side panel (mm) |
- |
PSU shroud |
1x 140/120 |
Optional radiator installation |
Front (mm) |
120 / 140 / 240 / 280 / 360 |
Top (mm) |
120 / 240 / 360 |
Bottom (mm) |
- |
Rear (mm) |
120 / 140 |
Cooling |
Max.construction height of CPU cooler unit (mm) |
185 |
Airflow channel |
Front, Top, Rear |
Lighting |
RGB LED illumination |
- |
LEDs synchronizable with RGB controller/motherboard |
- |
Expandable RGB controller |
- |
PSU compatibility |
Maximum dimensions excl. bottom fan (mm) |
288 |
Maximum dimensions incl. bottom fan (mm) |
288 |
Graphics card |
HDD cage (in height of graphics card) installed (mm) |
287 |
HDD cage (in height of graphics card) removed (mm) |
449 |
Insulation and damping |
Top panel insulation mats |
✔ |
Front panel insulation mats |
✔ |
Side panel insulation mats |
✔ |
Anti-vibration decoupled HDD |
✔ |
Anti-vibration decoupled fan |
✔ |
Anti-vibration decoupled PSU |
✔ |
Anti-vibration decoupled motherboard-tray |
✔ |
Removeable dust filters |
Front |
1 |
Bottom |
1 |
Side panel |
0 |
Accessories |
Screw set (Drives/Motherboard) |
✔ |
Rubber rail (pcs.) |
- |
Standoff (pcs.) |
1 (for E-ATX) |
LCS bracket (pcs). |
0 |
HDD slot cover (pcs.) |
0 |
Upper fan bracket (pcs.) |
0 |
HDD panel rubber grommet (pcs.) |
- |
SSD bracket for PSU shroud |
0 |
LED strips (pcs.) |
- |
Cable ties (pcs.) |
6 (Velcro) |
Cable tie holder (pcs.) |
- |
Service |
Warranty (Years) |
3 |
International hotline / free of charge |
✔ / DE, FR |
Logistics data, RRP |
Article number |
BGW25 |
EAN code |
4260052187029 |
Certifications |
CE, RoHS |
Dimensions, package (L x W x H), (mm) |
566 x 325 x 615 |
Gross weight, package (kg) |
13,23 |
Pieces per packaging unit |
1 |
