Silent Wings 4 120mm, 1600 RPM, 48.7 CFM, 18.9 dBA, Cooling Fan
Quantity:
- SKU: 15086785
- Manufacturer: be quiet!
- MPN: BL092
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$22.90
Silent Wings 4 120mm, 1600 RPM, 48.7 CFM, 18.9 dBA, Cooling Fan

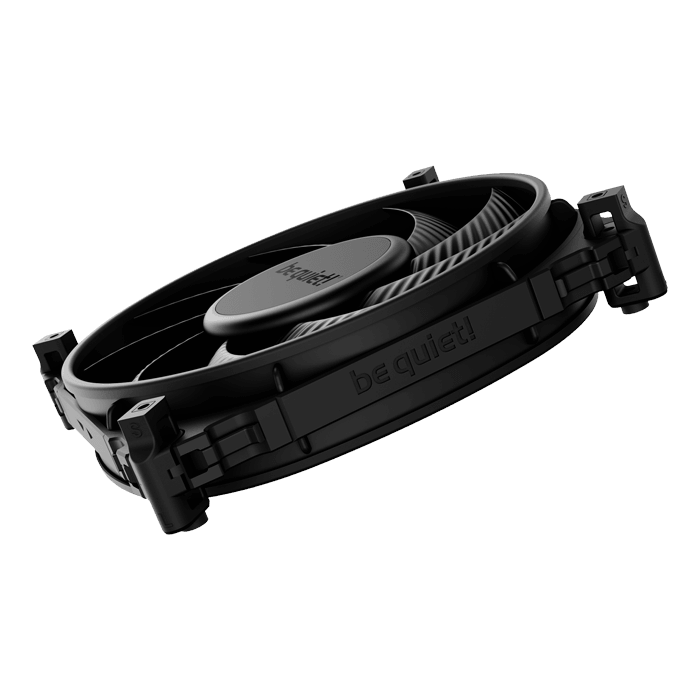

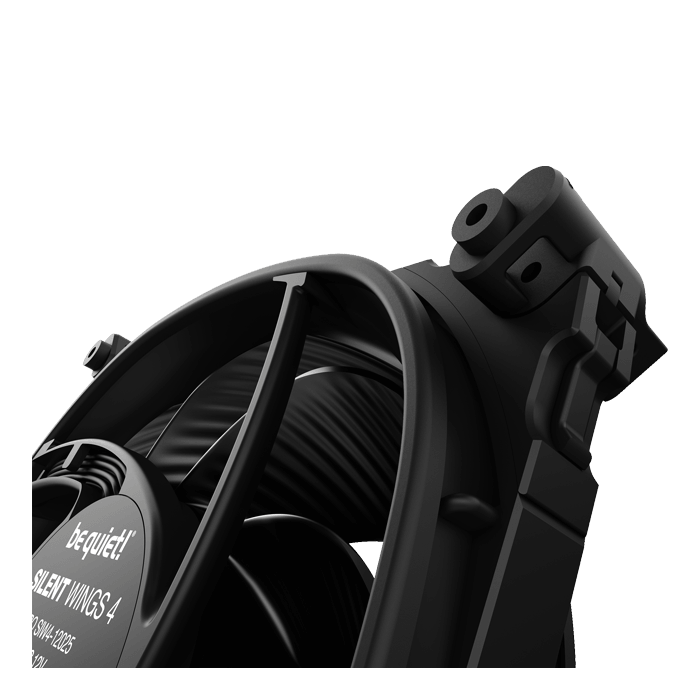

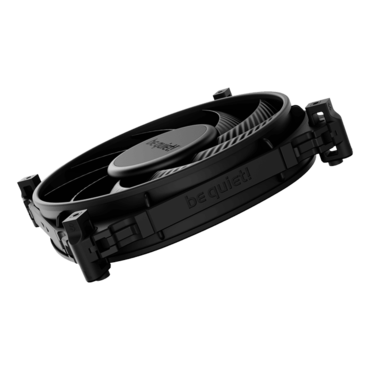

DIFFERENT MOUNTING OPTIONS For any purpose
Silent Wings 4 120mm has 2 mounting options in the scope of delivery. The pre-installed anti-vibration mounting reduces noise-generating vibrations to a minimum. For radiators and heat sinks, the plastic mounting is the first choice. Both solutions have in common that they enable virtually inaudible operation at regular speed.
- Optimized fan blades for the highest performance on heat sinks
- Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
- Virtually inaudible operation at regular speed
- 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
- Anti-vibration mounting with push pins and screwed installation option
- Super-long lifespan of up to 300,000h
- Elegant look with high-grade fan sticker in an all-black design
- 5-year manufacturer warranty
| General data | |
| Model | Silent Wings 4 120mm PWM |
| Dimensions (mm) | 120 |
| Fan speed @ 100% PWM / 12V (rpm) | 1600 |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 48.7 / 82.74 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 1.79 |
| Lighting | - |
| Noise level @ 100% PWM / 12V (dB(A)) | 18.9 |
| Color option | Black |
| Mechanical specifications | |
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Weight incl. fixed cables (kg) | 0.190 |
| Push pin fixing | ✓ |
| Screw fixing | ✓ |
| Cables / Connectors | |
| Y-cable for lighting signal | - |
| Lighting connector | - |
| Connector | 3-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | ✓ |
| Performance / Noise | |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 48.7 / 82.74 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 1.79 |
| Noise level @ 100% PWM / 12V (dB(A)) | 18.9 |
| Lifespan (h / 25°C) | 300,000 |
| Electrical specifications | |
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.12 |
| Safety current (A) | 0.13 |
| Input power (W) | 1.44 |
| Rated Current LED (A) | - |
| Accessories | |
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | 4 |
| hard plastic washer | - |
| Others | Rubber & hard plastic mountings |
| Safety certification | |
| Approvals | CE / RoHs / RU / UKCA / TÜV / WEEE |
| Service | |
| Warranty (Years) | 5 |
| International hotline / free of charge | ✓ / DE, FR |
| Logistics data, RRP | |
| Article number | BL092 |
| EAN code | 4260052188842 |
| Dimensions, package (L x W x H), (mm) | 192 x 141 x 31 |
| Gross weight, package (kg) | 0.343 |
