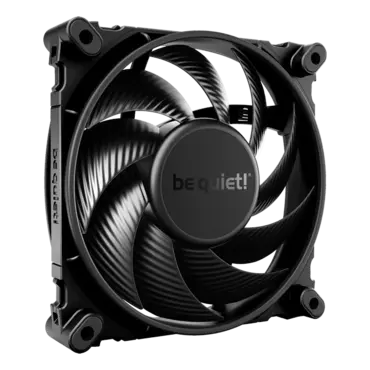

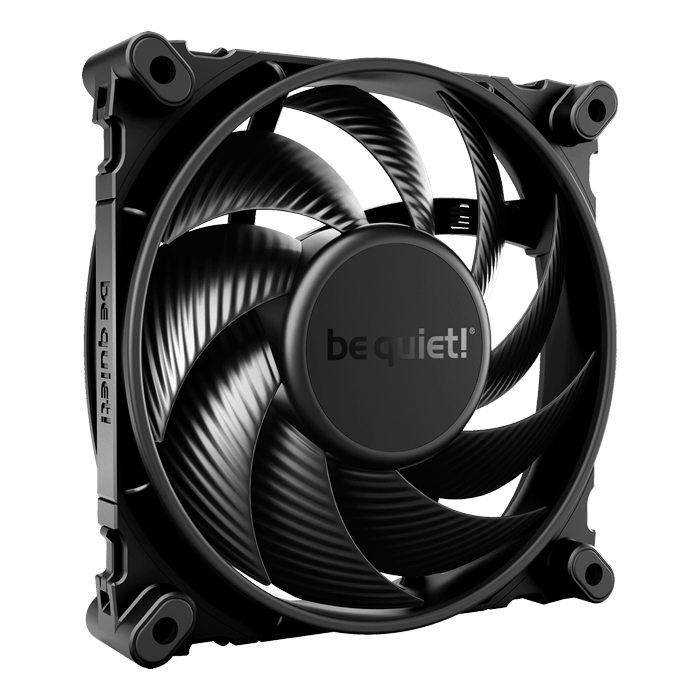

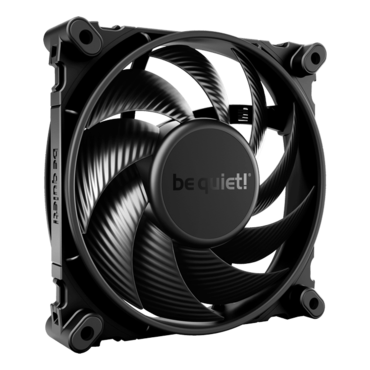

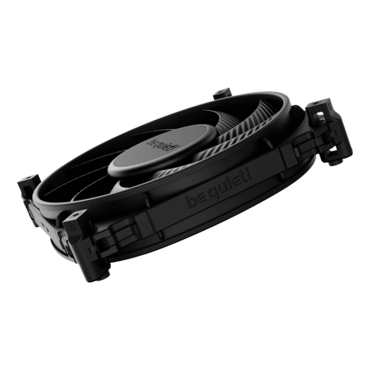

Silent Wings 4 120mm PWM high-speed, 2500 RPM, 76.7 CFM, 31.2 dBA, Cooling Fan
DIFFERENT MOUNTING OPTIONS For any purpose

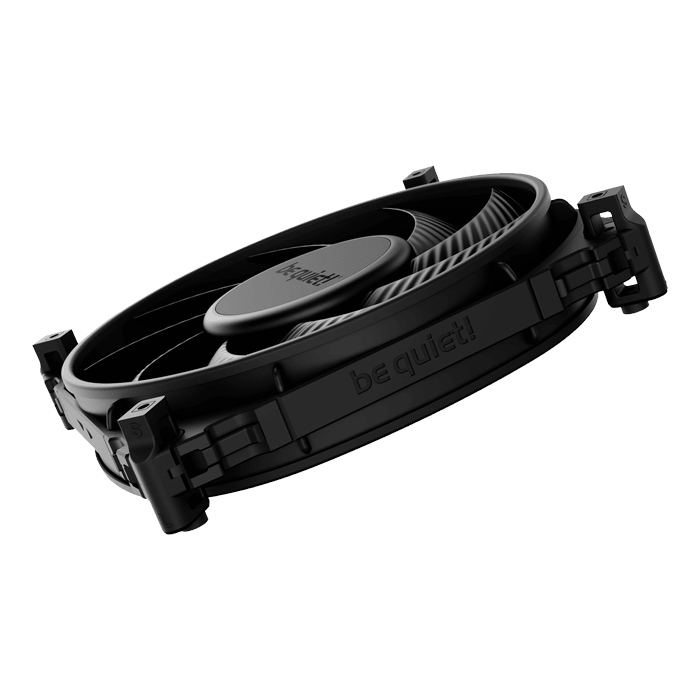

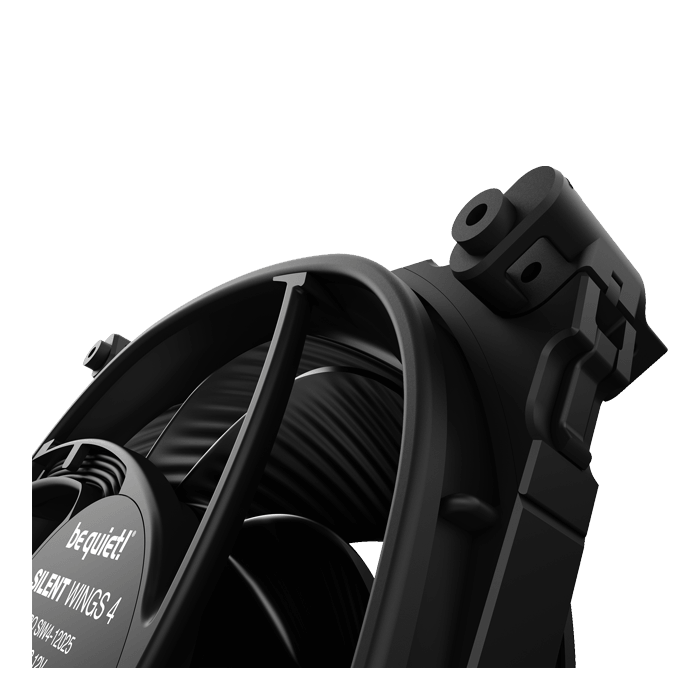

Silent Wings 4 120mm PWM high-speed has 2 mounting options in the scope of delivery. The pre-installed anti-vibration mounting reduces noise-generating vibrations to a minimum. For radiators and heat sinks, the plastic mounting is the first choice. Both solutions have in common that they enable virtually inaudible operation at regular speed.
- Optimized fan blades for the highest performance on radiators and heat sinks
- Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
- Very silent operation even at maximum speed
- 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
- Anti-vibration mounting with push pins and screwed installation option
- Super-long lifespan of up to 300,000h
- Elegant look with high-grade fan sticker in an all-black design
- 5-year manufacturer warranty
General data | |
Model | Silent Wings 4 120mm PWM high-speed |
Dimensions (mm) | 120 |
Fan speed @ 100% PWM / 12V (rpm) | 2500 |
Air Flow @ 100% PWM / 12V (CFM / m3/h) | 76.7 / 130.31 |
Air Pressure @ 100% PWM / 12V (mm H2O) | 3.96 |
Lighting | - |
Noise level @ 100% PWM / 12V (dB(A)) | 31.2 |
Color option | Black |
Mechanical specifications | |
Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
Bearing technology | FDB |
Motor technology | 6-pole fan motor |
Weight incl. fixed cables (kg) | 0.190 |
Push pin fixing | ✓ |
Screw fixing | ✓ |
Cables / Connectors | |
Y-cable for lighting signal | - |
Lighting connector | - |
Connector | 4-pin PWM |
Cable length (mm) | 500 |
Cable sleeve | ✓ |
Performance / Noise | |
Air Flow @ 100% PWM / 12V (CFM / m3/h) | 76.7 / 130.31 |
Air Pressure @ 100% PWM / 12V (mm H2O) | 3.96 |
Noise level @ 100% PWM / 12V (dB(A)) | 31.2 |
Lifespan (h / 25°C) | 300,000 |
Electrical specifications | |
Rated Voltage DC (V) | 12 |
Operating Voltage DC (V) | 5 - 13.2 |
Current consumption (A) | 0.20 |
Safety current (A) | 0.22 |
Input power (W) | 2.4 |
Rated Current LED (A) | - |
Accessories | |
3-pin to 4-pin 12V-connector | - |
12V to 7V adapter | - |
12V to 5V adapter | - |
Screws | 4 |
Push pins | 4 |
hard plastic washer | - |
Others | Rubber & hard plastic mountings |
Safety certification | |
Approvals | CE / RoHs / RU / UKCA / TÜV / WEEE |
Service | |
Warranty (Years) | 5 |
International hotline / free of charge | ✓ / DE, FR |
Logistics data, RRP | |
Article number | BL094 |
EAN code | 4260052188866 |
Dimensions, package (L x W x H), (mm) | 192 x 141 x 31 |
Gross weight, package (kg) | 0.346 |
Pieces per packaging unit | 40 |
