Silent Wings Pro 4 120mm PWM, 3000 RPM, 83.9 CFM, 36.9 dBA, Cooling Fan

Quantity:
  • SKU: 15085705
  • Manufacturer: be quiet!
  • MPN: BL098
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$30.90
Quantity:
Silent Wings Pro 4 120mm PWM, 3000 RPM, 83.9 CFM, 36.9 dBA, Cooling Fan

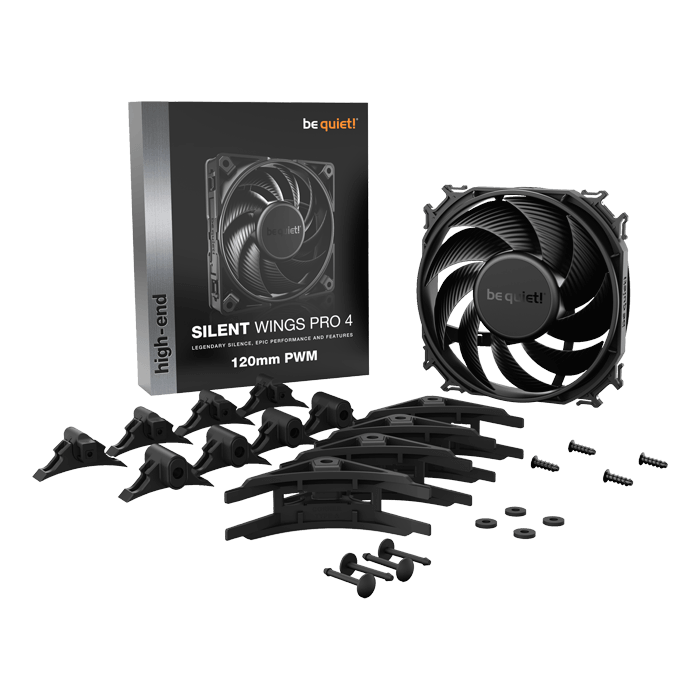

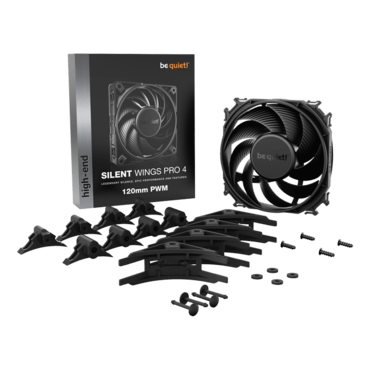

3 DIFFERENT MOUNTING OPTIONS For any purpose

Silent Wings Pro 4 120mm PWM has 3 mounting options in the scope of delivery. The pre-installed radiator corners are specially designed for radiators on which the incomparable performance of this high-end fan completely shines. On the other hand, for chassis use, the anti-vibration mounting is the first choice as they reduce vibrations to a minimum. The plastic mountings round up the scope.

  • Optimized fan blades for the highest performance on radiators and heat sinks
  • Speed switch allows changing maximum PWM speed between medium-speed, high-speed and ultra-high-speed (up to 3000 rpm)
  • Small tip clearance and a fan frame with a funnel-shaped air outlet for extremely high air pressure
  • Virtually inaudible operation at regular speed
  • 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
  • Individual mounting systems for use as a case fan or with a radiator
  • 5-year manufacturer warranty
General data
Model Silent Wings Pro 4 120mm PWM
Dimensions (mm) 120
Fan speed @ 100% PWM / 12V (rpm) 3000
Air Flow @ 100% PWM / 12V (CFM / m3/h) 83.9 / 142.5
Air Pressure @ 100% PWM / 12V (mm H2O) 5.31
Lighting -
Noise level @ 100% PWM / 12V (dB(A)) 36.9
Color option Black
Mechanical specifications
Dimensions (L x W x H), (mm) 120 x 120 x 25
Bearing technology FDB
Motor technology 6-pole fan motor
Weight incl. fixed cables (kg) 0.227
Push pin fixing
Screw fixing
Cables / Connectors
Y-cable for lighting signal -
Lighting connector -
Connector 4-pin PWM
Cable length (mm) 500
Cable sleeve
Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h) 83.9 / 142.5
Air Pressure @ 100% PWM / 12V (mm H2O) 5.31
Noise level @ 100% PWM / 12V (dB(A)) 36.9
Lifespan (h / 25°C) 300,000
Electrical specifications
Rated Voltage DC (V) 12
Operating Voltage DC (V) 7 - 13.2
Current consumption (A) 0.30
Safety current (A) 0.33
Input power (W) 3.6
Rated Current LED (A) -
Accessories
3-pin to 4-pin 12V-connector -
12V to 7V adapter -
12V to 5V adapter -
Screws 4
Push pins 4
hard plastic washer -
Others -
Safety certification
Approvals CE / RoHs / RU / UKCA / TÜV / WEEE
Service
Warranty (Years) 5
International hotline / free of charge ✓ / DE, FR
Logistics data, RRP
Article number BL098
EAN code 4260052188903
Dimensions, package (L x W x H), (mm) 192 x 141 x 31
Gross weight, package (kg) 0.4
