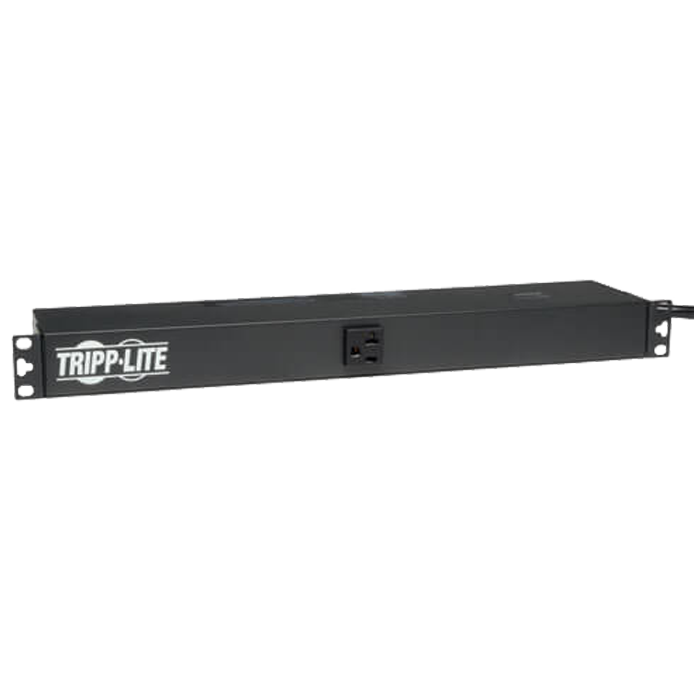

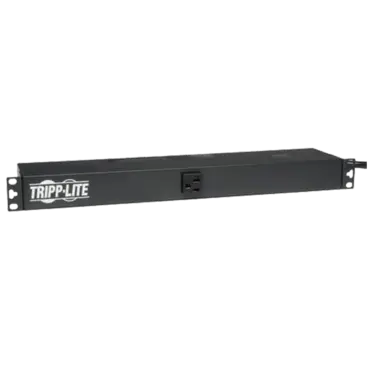

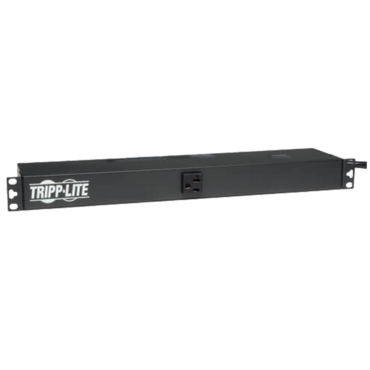

Single-Phase Basic Power Distribution Unit, 1U Rack, 13x / NEMA 5-15/20R, 120V AC, 50/60Hz, 20A, 15-ft cord, Black

SKU: 44858

Manufacturer: TRIPP LITE

MPN: PDU1220T

Availability: Available


Price: $129.74
or as low as $4/month
Quantity:

The PDU1220T 2.4kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1220T features a single breakered load bank with 13 NEMA 5-15/20R outlets—12 in the rear and one in front. The NEMA L5-20P input plug with long 15-foot(4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.

The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite’s PDUSIDEBRKT accessory(sold separately), you can adapt the PDU1220T for vertical 0U rack-mounting.

Reliable Single-Phase Power Distribution

  • Ideal no-frills PDU for networking, telecom, security, audio/video and sound reinforcement applications
  • 13 NEMA 5-15/20R outlets in one breakered load bank
  • 20A circuit breaker protects outlets against overloads
  • NEMA L5-20P input plug with 15 ft. cord
  • Rear-panel grounding lug


Switchless Design

  • Prevents accidental shutdowns and costly downtime


Versatile Installation Options

  • Mounts horizontally in 1U of EIA-standard 19 in. 2- and 4-post racks
  • Reversible all-metal housing faces front or rear in rack
  • Ready for toolless 0U vertical installation with optional PDUSIDEBRKT(sold separately)
  • Also mounts on wall, workbench or under a counter

Package Includes

  • PDU1220T 2.4kW Single-Phase 120V Basic PDU
  • Mounting hardware
  • Owner’s manual
OVERVIEW
PDU Type Basic
OUTPUT
Output Capacity Details 2.5kW (127V), 2.4kW (120V), 2.0kW (100V) / 20A total capacity
Frequency Compatibility 50 / 60 Hz
Output Receptacles (13) 5-15/20R
Output Nominal Voltage 100; 120; 127
Overload Protection 20A circuit breaker
INPUT
PDU Input Voltage 100; 120; 127
Recommended Electrical Service 20A 120V
Maximum Input Amps 20
PDU Plug Type NEMA L5-20P
Input Cord Length (ft.) 15
Input Phase Single-Phase
USER INTERFACE, ALERTS & CONTROLS
Switches No power switch
PHYSICAL
Minimum Required Rack Depth (inches) 9.5
Shipping Dimensions (hwd / in.) 2.2 x 20.4 x 5.2
Shipping Weight (lbs.) 5.7
Unit Dimensions (hwd / in.) 1.75 x 17.5 x 4.5
Unit Weight (lbs.) 5.2
Material of Construction Metal
Form Factors Supported 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
PDU Form Factor Horizontal (1U, 2U, etc)
Outlets Measurement (Center to Center) 30.2mm
ENVIRONMENTAL
Storage Temperature Range 5 to 122F (-15 to 50C)
Relative Humidity 5 to 95% non-condensing
Operating Elevation (ft.) 0-10,000
SPECIAL FEATURES
TVSS Grounding Back panel grounding lug
CERTIFICATIONS
Certifications Tested to UL60950-1 (USA), CSA-C22.2 (Canada)
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
