Single-Phase Basic Power Distribution Unit, 24x / NEMA 5-15R, 120V AC, 50/60Hz, 30A, 1U Rack, 15-ft cord, Black

SKU: 44863

Manufacturer: TRIPP LITE

MPN: PDU2430

Availability: Available


Price: $213.65
or as low as $7/month
Quantity:

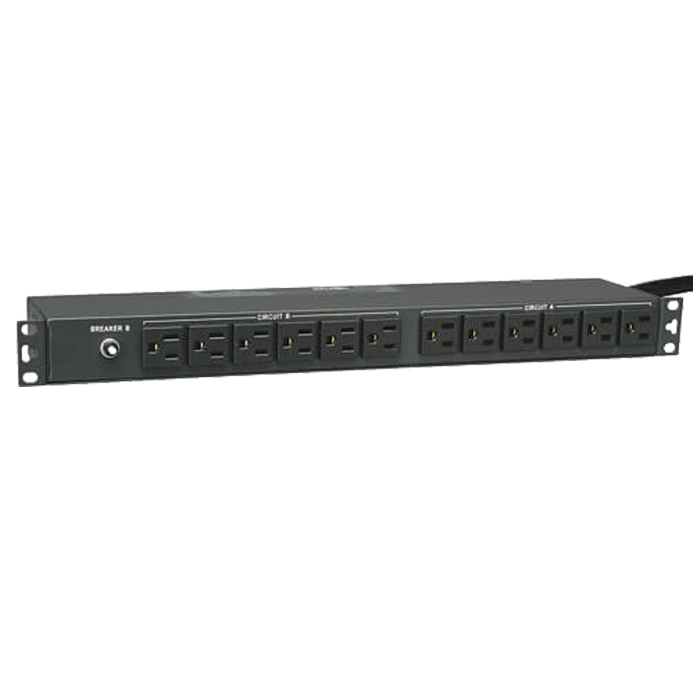

The PDU2430 2.9kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU2430 features 24 total NEMA 5-15R outlets with 12 in front and 12 in the rear. The NEMA L5-30P input plug with long 15-foot(4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.

The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 15A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite’s PDUSIDEBRKT accessory(sold separately), you can adapt the PDU2430 for vertical 0U rack-mounting.

Reliable Single-Phase Power Distribution

  • Ideal no-frills PDU for networking, telecom, security, audio/video and sound reinforcement applications
  • 24 NEMA 5-15R outlets—12 front, 12 rear
  • Dual 15A circuit breakers protect outlets against overloads
  • NEMA L5-30P input plug with 15 ft. cord


Switchless Design

  • Prevents accidental shutdowns and costly downtime


Versatile Installation Options

  • Mounts horizontally in 1U of EIA-standard 19 in. 2- and 4-post racks
  • Reversible all-metal housing faces front or rear in rack
  • Ready for toolless 0U vertical installation with optional PDUSIDEBRKT(sold separately)
  • Also mounts on wall, workbench or under a counter

Package Includes

  • PDU2430 2.9kW Single-Phase 120V Basic PDU
  • Mounting hardware
  • Owner’s manual
OVERVIEW
PDU Type Basic
OUTPUT
Output Capacity Details 3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 15A max per breakered load bank; 12A max per outlet
Frequency Compatibility 50 / 60 Hz
Output Receptacles (24) 5-15R
Output Nominal Voltage 100; 120; 127
Overload Protection 2 15A breakers protect 12 outlets each
INPUT
PDU Input Voltage 100; 120; 127
Recommended Electrical Service 30A 120V
Maximum Input Amps 30
Maximum Input Amps Details Agency de-rated to 24A continuous
PDU Plug Type NEMA L5-30P
Input Cord Length (ft.) 15
Input Phase Single-Phase
USER INTERFACE, ALERTS & CONTROLS
Switches No power switch
PHYSICAL
Minimum Required Rack Depth (inches) 7.5
Shipping Dimensions (hwd / in.) 3 x 10.9 x 20.3
Shipping Weight (lbs.) 7.6
Unit Dimensions (hwd / in.) 1.75 x 17.5 x 4.5
Unit Weight (lbs.) 7.4
Material of Construction Metal
Form Factors Supported 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
PDU Form Factor Horizontal (1U, 2U, etc)
Outlets Measurement (Center to Center) Distance between Front outlets = 30.2mm; Distance between Rear outlets = 30.2mm
ENVIRONMENTAL
Storage Temperature Range +5 to +122F (-15 to 50C)
Relative Humidity 5 to 95% non-condensing
Operating Elevation (ft.) 0-10,000
SPECIAL FEATURES
TVSS Grounding Back panel grounding lug
CERTIFICATIONS
Certifications Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada)
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
