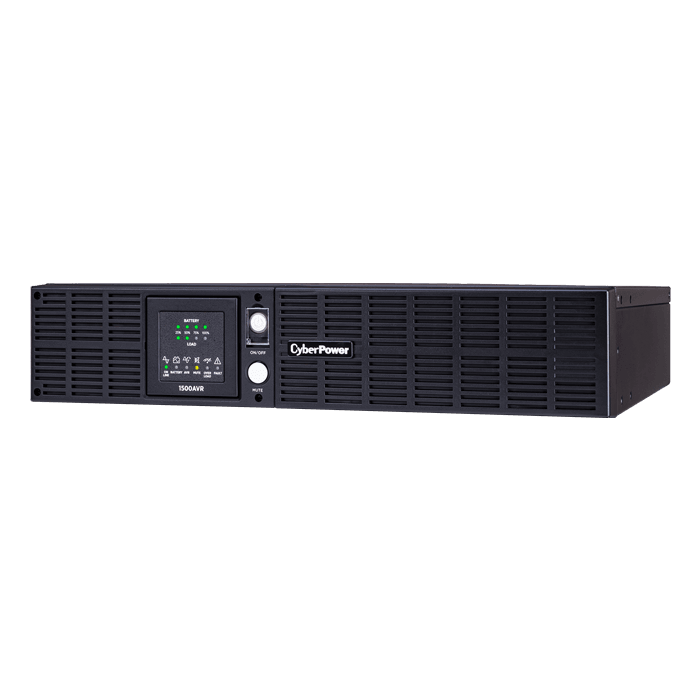

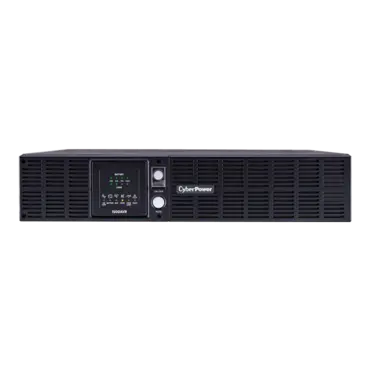

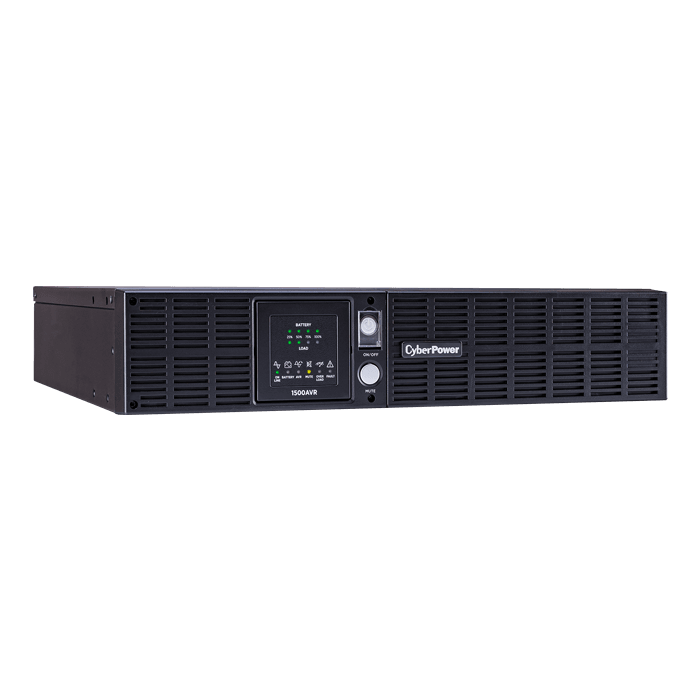

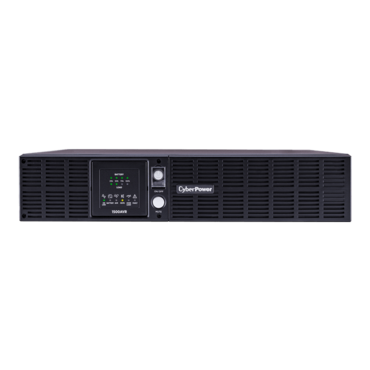

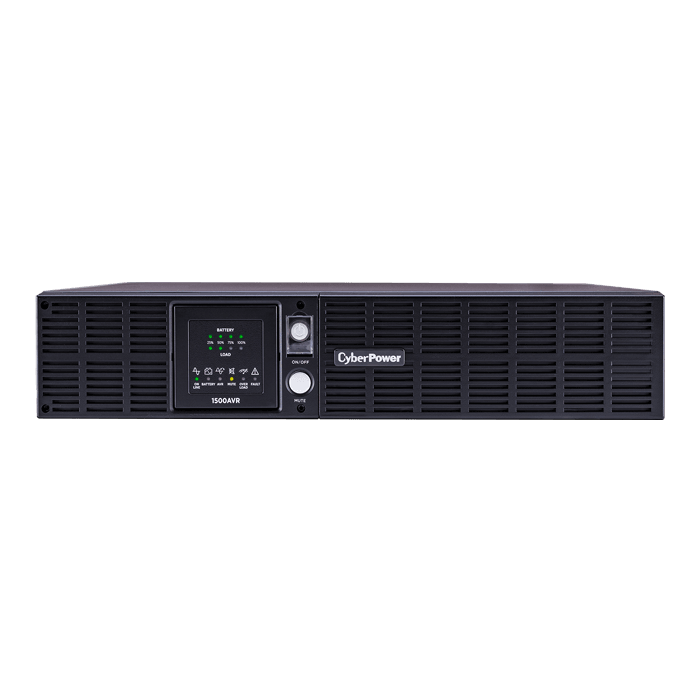

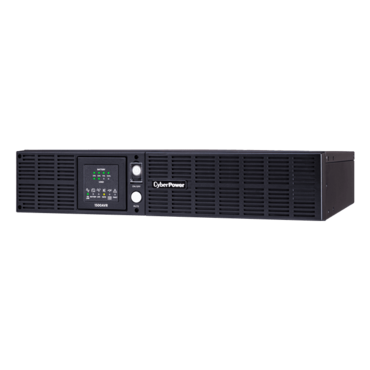

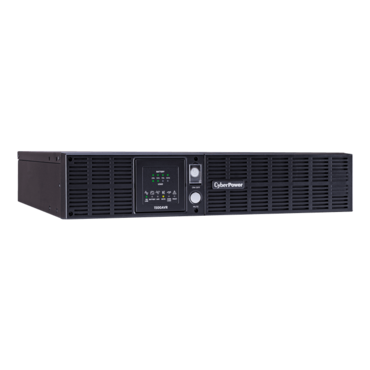

Smart App LCD CPS1500AVR, 1500 VA/950 W, Simulated Sine Wave, 2U Rackmount/Tower UPS

  • SKU: 284745
  • Manufacturer: CYBERPOWER SYSTEMS
  • MPN: CPS1500AVR
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
Smart App LCD CPS1500AVR, 1500 VA/950 W, Simulated Sine Wave, 2U Rackmount/Tower UPS
The 1500AVR model has an innovative form that allows the unit to be used as either a free-standing unit, or to be rack mounted.
  • Capacity:1500 VA / 900 W
  • Topology:Line Interactive
  • Waveform:Simulated Sine Wave
  • Output:120 VAC ± 10%
  • Plug type & cord:NEMA 5-15P, 10 ft. cord

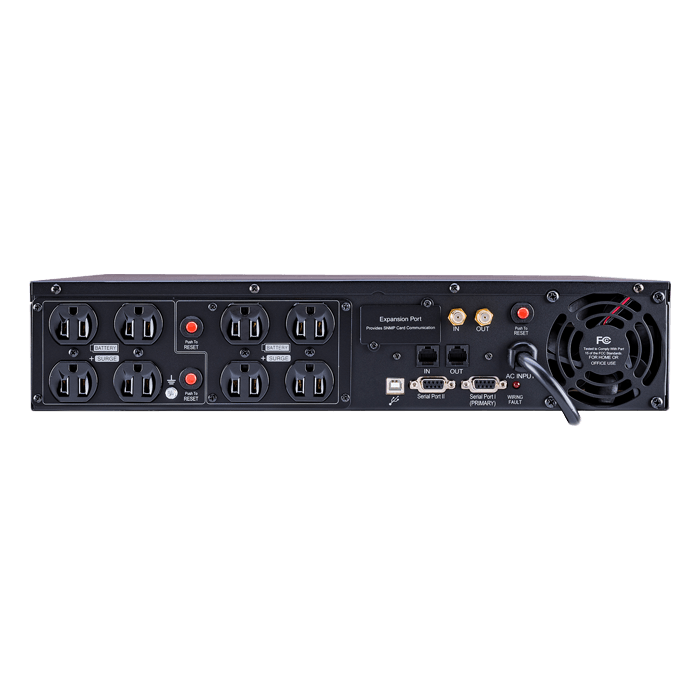

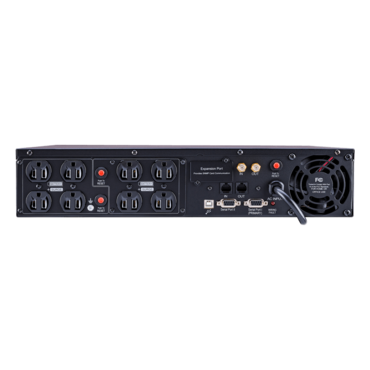

  • Outlet types:8 x NEMA 5-15R
  • Communication:USB, Serial, SNMP
  • Warranty:3 year
UPS Topology Line Interactive
Voltage 90Vac - 140Vac
Frequency 47Hz - 63Hz
Plug Type NEMA 5-15P
Plug Style Right Angle
Cord Length 10'
VA 1,500
Watts 950
Automatic Voltage Regulation Yes
On Battery Voltage 120Vac ± 5%
On Battery Frequency 60Hz ± 1%
On Battery Waveform Simulated Sine Wave
Outlet Type NEMA 5-15R
Outlets - Battery & Surge Protected 6
Overload Protection Internal circuitry limiting / circuit breaker
Transfer Time 4ms
Runtime at Half Load (min) 18
Runtime at Full Load (min) 6
Battery Type Sealed Lead-Acid
Battery Size 12V/7AH
Replacement Battery RB1270X4E
Battery Quantity 4
User Replaceable Yes
Typical Recharge Time 8 Hours
Surge Protection & Filtering
Surge Suppression 1,800 Joules
Maximum Surge Current 36,000 Amps
Phone RJ11 / Ethernet RJ45 1-In, 1-Out (Combo)
Management & Communications
Serial Port Yes (2x)
Management Cable Serial Cable, USB Adapter
LED Indicators Power On, Using Battery, AVR, Wiring Fault, Load Level, Battery Level
Audible Alarms On Battery, Low Battery, Overload
Software PowerPanel® Business Edition
SNMP / HTTP Remote Monitoring Yes, with optional RMCARD100
Rack Size 2U
Form Factor Rack/Tower
Dimensions (WxHxD) (in.) 17.25 x 3.5 x 15.75
Weight (lbs.) 58.0
Operating Temperature 32°F to 95°F / 0°C to 35°C
Operating Relative Humidity 0% - 90% non-condensing
Online Thermal Dissipation 198 BTU/hr
Safety UL1778, cUL, FCC DOC Class B
Environmental RoHS Compliant
Product Warranty 3 Years Limited
Connected Equipment Guarantee Lifetime
CEG Amount $500,000
