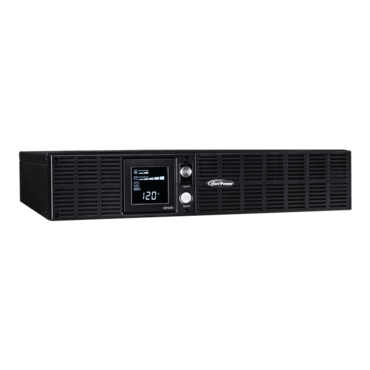

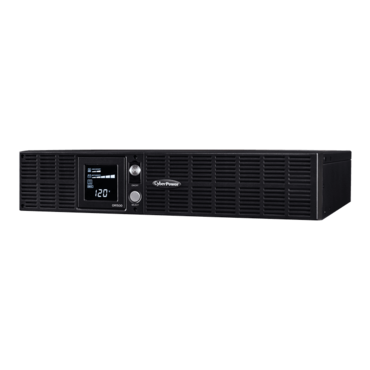

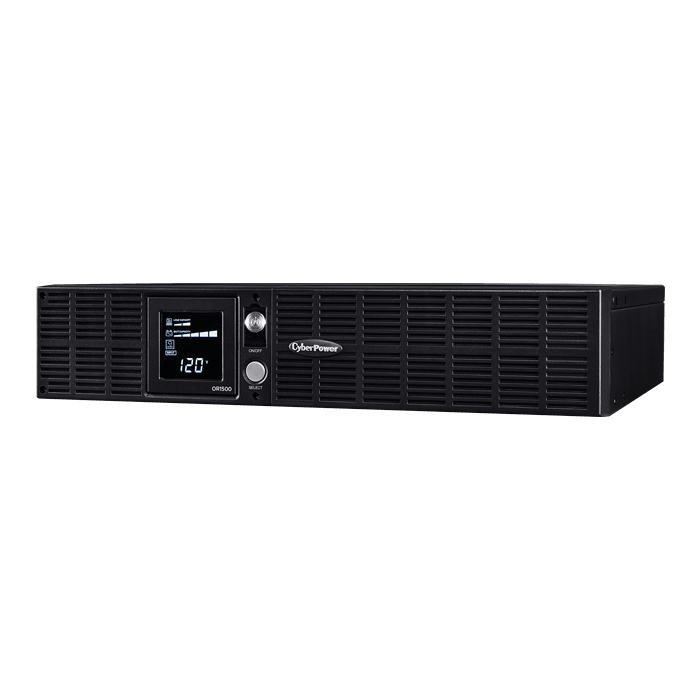

Smart App LCD OR1500LCDRT2U, 1500 VA/900 W, Simulated Sine Wave, 2U Rackmount/Tower UPS
LCD AVR 8 5-15 OUTLETS 5-15P PLUG 120V 15A RT 3YR. The OR1500LCDRT2U has a SNMP slot that will accept the RMCARD202 and RMCARD 203. This will greatly improve the communications of this UPS by providing the following RMCARD202/203 features: Email and SMS Text Notifications, Updateable Firmware, Latest Network Protocols and Environmental Sensor Option.
LCD AVR 8 5-15 OUTLETS 5-15P PLUG 120V 15A RT 3YR. The OR1500LCDRT2U has a SNMP slot that will accept the RMCARD202 and RMCARD 203. This will greatly improve the communications of this UPS by providing the following RMCARD202/203 features: Email and SMS Text Notifications, Updateable Firmware, Latest Network Protocols and Environmental Sensor Option.
- Capacity: 1500 VA / 900 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, Serial, SNMP
- Management software: PowerPanel® Business Edition
- Remote management: Yes
- ENERGY STAR® qualified: Yes
- Warranty: 3 year
General | |
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS™ Bypass |
ENERGY STAR® Qualified | Yes |
Input | |
Voltage | 90 – 140 VAC |
Frequency Range | 50/60 Hz ±3 Hz |
Plug Type | NEMA 5-15P |
Plug Style | Straight |
Cord Length | 10 ft |
Output | |
VA | 1,500 VA |
Watts | 900 W |
Automatic Voltage Regulation | Yes |
On Battery Voltage | 120 VAC ± 10% |
On Battery Frequency | 50/60 Hz ± 1% |
On Battery Waveform | Simulated Sine Wave |

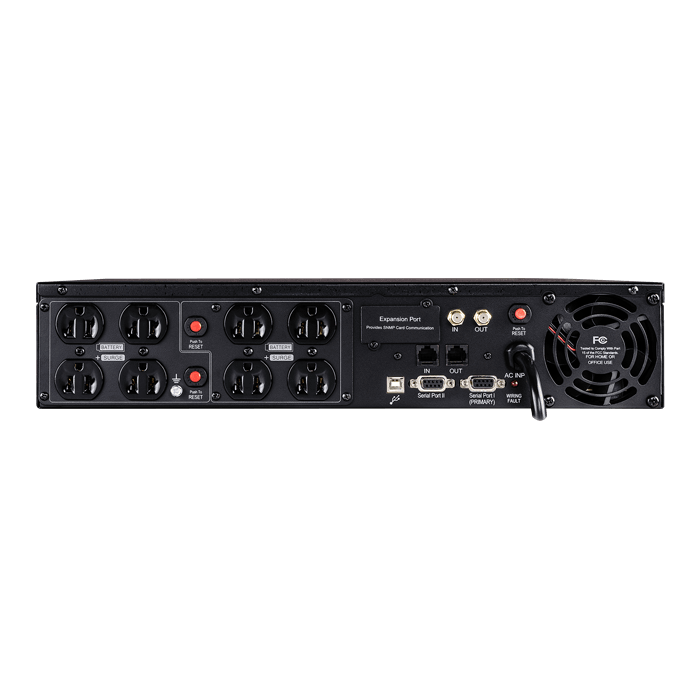

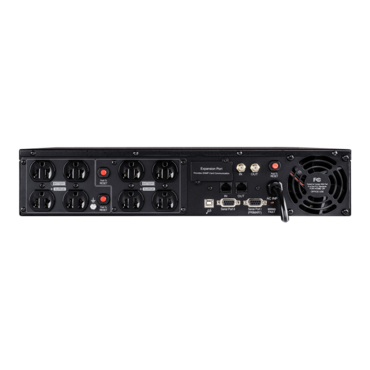

Outlet Type | NEMA 5-15R |
Outlets – Battery & Surge Protected | 8 |
Overload Protection |
Internal Circuitry Limiting
Circuit Breaker |
Transfer Time | 4 ms |
Battery | |
Runtime at Half Load | 18 minutes |
Runtime at Full Load | 6 minutes |
Battery Type | Sealed Lead-Acid |
Battery Size | 12V / 7Ah |
Battery Quantity | 4 |
User Replaceable | Yes |
Replacement Battery Cartridge | RB1270X4J |
Replacement Battery Cartridge Quantity | 1 |
Typical Recharge Time | 8 hours |
Surge Protection & Filtering | |
Surge Suppression | 1,840 J |
Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
Coax Protection RG6 | 1-In, 1-Out |
Management & Communications | |

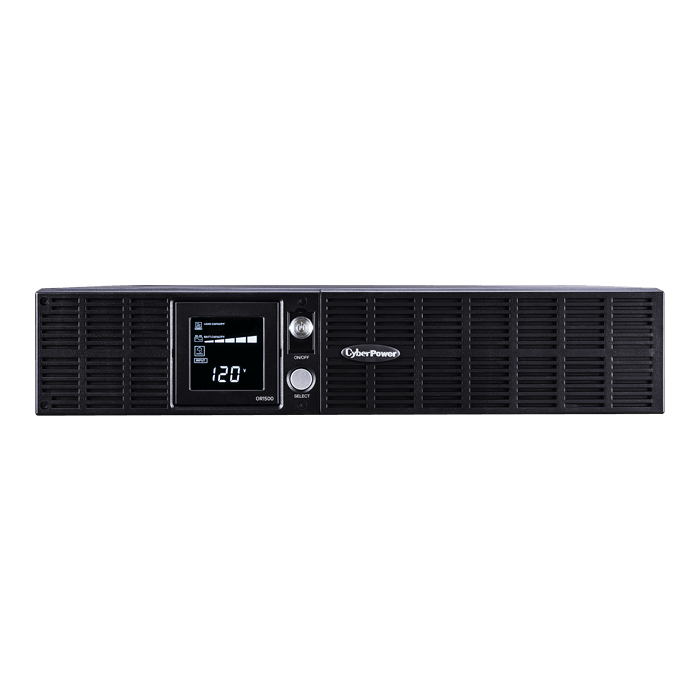

Multifunction LCD Panel |
Displays:
Current/Load Level Runtime Battery Level AVR In Use Battery In Use Input Voltage Output Voltage Output Frequency Overload Wiring Fault Silent Mode |
HID Compliant USB Port | Yes |
Serial Port | Yes (2x) |
Audible Alarms |
On Battery
Low Battery Overload Battery Missing Fault |
Software | PowerPanel® Business Edition |
SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
Cable Management | USB Cable, Serial Cable, Phone Line |
Physical | |
Rack Size | 2U |

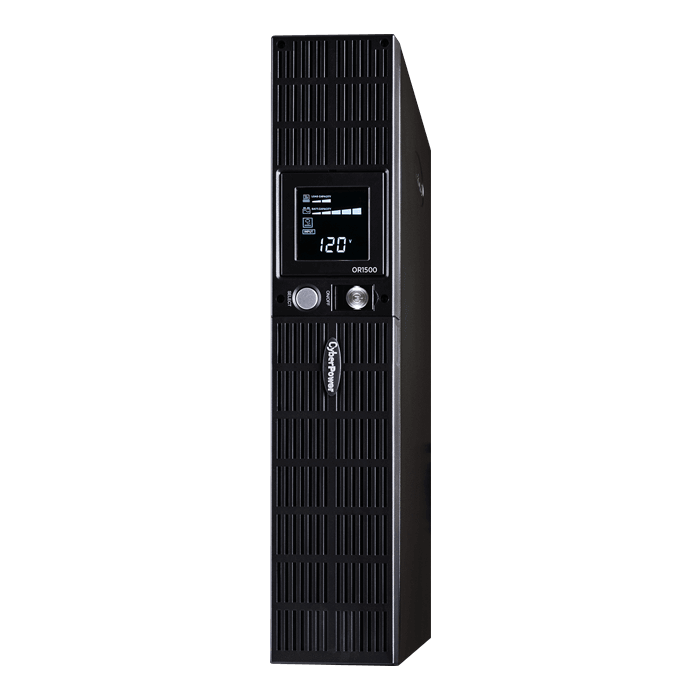

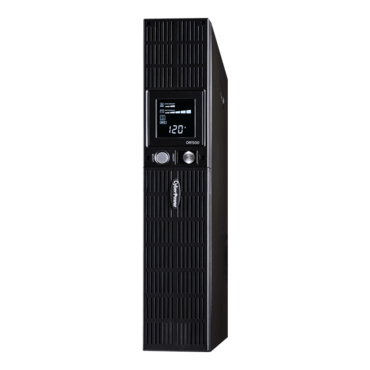

Form Factor | Rack/Tower |
Dimensions – W×H×D (in) | 17.25 × 3.5 × 15.75 inches |
Weight (lbs) | 48.4 lbs |
Environmental | |
Operating Temperature | 32° F – 95° F °F (0° C – 35° C °C) |
Operating Humidity | 0 – 95% (non-condensing) |
Certifications | |
Safety |
UL1778
cUL 107.1 FCC DOC Class B |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
