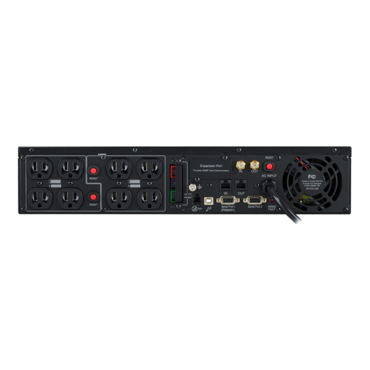

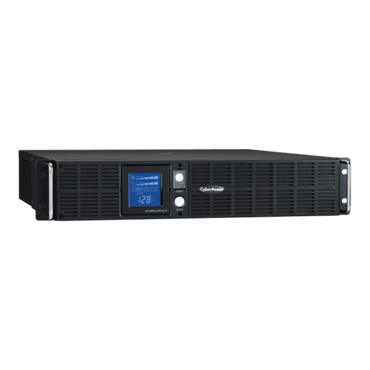

Smart App LCD OR1500LCDRTXL2U, 1500 VA/1125 W, Simulated Sine Wave, 2U Rackmount/Tower UPS
- SKU: 3721950
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OR1500LCDRTXL2U
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$870.95
Smart App LCD OR1500LCDRTXL2U, 1500 VA/1125 W, Simulated Sine Wave, 2U Rackmount/Tower UPS
1500VA / 1125W Intelligent, Line-Interactive UPS with Smart App Software, AVR, 2U RM/T, 12 AMP, 8 x NEMA 5-15R, RJ11/RJ45/Coax, USB/Serial, SNMP/HTTP (optional), Extended Battery Packs Available
1500VA / 1125W Intelligent, Line-Interactive UPS with Smart App Software, AVR, 2U RM/T, 12 AMP, 8 x NEMA 5-15R, RJ11/RJ45/Coax, USB/Serial, SNMP/HTTP (optional), Extended Battery Packs Available
- Capacity: 1500 VA / 1125 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes
- Warranty: 3 year
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| Input | |
| Voltage | 90 – 140 VAC |
| Frequency Range | 47 – 63 Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Straight |
| Cord Length | 10 ft |
| Output | |
| VA | 1,500 VA |
| Watts | 1,125 W |
| Automatic Voltage Regulation | Yes |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | NEMA 5-15R |
| Outlets – Battery & Surge Protected | 8 |
| Overload Protection |
Internal Circuitry Limiting
Circuit Breaker |
| Transfer Time | 4 ms |
| Battery | |
| Runtime at Half Load | 18 minutes |
| Runtime at Full Load | 7 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/7Ah |
| Battery Quantity | 4 |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB1270X4B |
| Replacement Battery Cartridge Quantity | 1 |
| Typical Recharge Time | 8 hours |
| Extended Battery Option | BP48V75ART2U |
| Surge Protection & Filtering | |
| Surge Suppression | 1,840 J |
| Coax Protection RG6 | 1-In, 1-Out |
| Phone Protection RJ11 | 1-In, 1-Out (combo) |
| Management & Communications | |
| Multifunction LCD Panel |
Displays:
Load/Current Level Runtime Battery Level Temperature Battery In Use Input Voltage Output Voltage
Output Frequency Wiring Fault Battery Shutdown Voltage Static Frequency Tolerance Slew Rate Silent Mode Normal Mode |
| HID Compliant USB Port | Yes |
| Serial Port | Yes (2x) |
| Management Cable |
USB Cable
Serial Cable (2) |
| Audible Alarms |
On Battery
Low Battery Overload |
| Software | PowerPanel® Business Edition |
| SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
| LED Indicators |
Power On
Wiring Fault |
| Physical | |
| Rack Size | 2U |
| Form Factor | Rack/Tower |
| Dimensions – W×H×D (in) | 17 × 3.5 × 18.8 inches |
| Weight (lbs) | 59.5 lbs |
| Environmental | |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Humidity | 0 – 90% (non-condensing) |
| Certifications | |
| Safety | UL1778, cUL 107.3, FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
