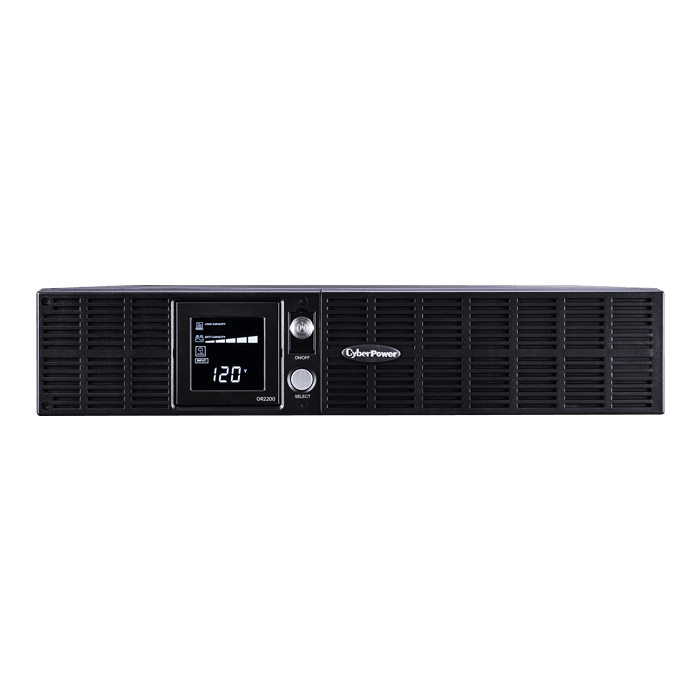

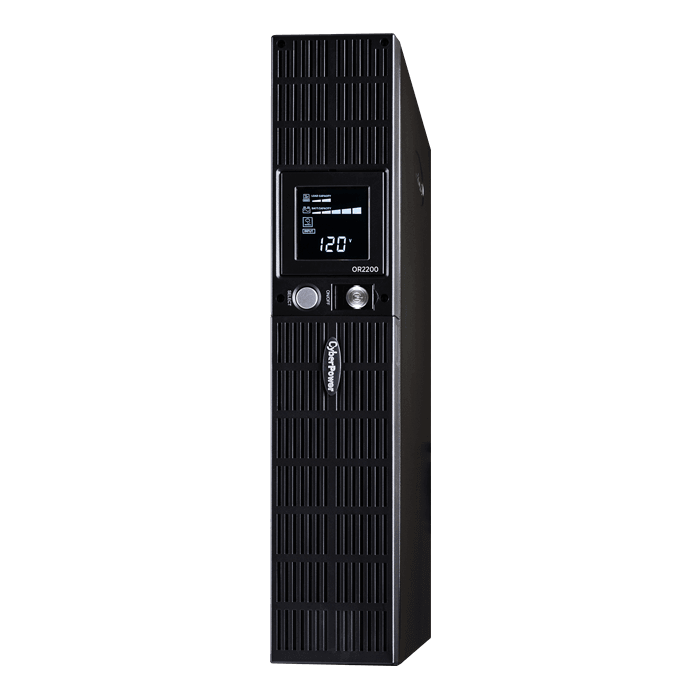

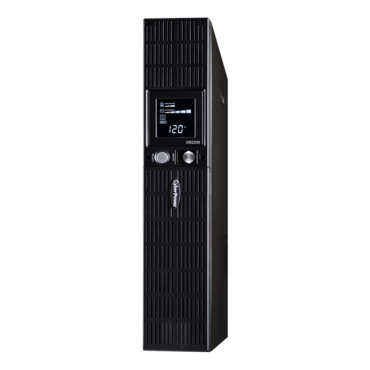

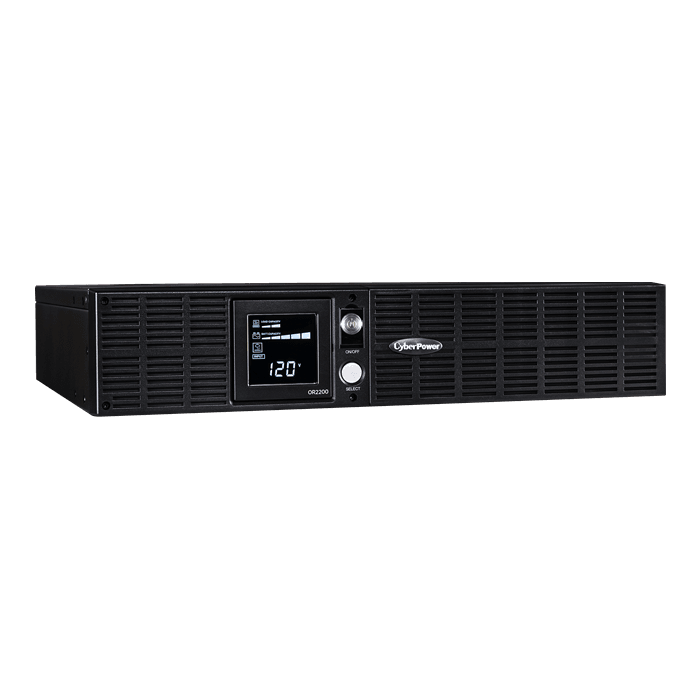

Smart App LCD OR2200LCDRT2U, 2200 VA/1320 W, Simulated Sine Wave, 2U Rackmount/Tower UPS
Quantity:
- SKU: 8435196
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OR2200LCDRT2U
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$604.95
- Capacity: 2200 VA / 1320 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-20P (right angle), 10 ft. cord
- Outlet types: 8 × NEMA 5-20R
- Communication: USB, Serial, SNMP
- Management software: PowerPanel® Business Edition
- Remote management: Yes
- ENERGY STAR® qualified: Yes
- Warranty: 3 year
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| ENERGY STAR® Qualified | Yes |
| Input | |
| Voltage | 90 – 140 VAC |
| Frequency Range | 50/60 Hz ±3 Hz |
| Plug Type | NEMA 5-20P |
| Plug Style | Right Angle |
| Cord Length | 10 ft |
| Output | |
| VA | 2,000 VA |
| Watts | 1,320 W |
| Automatic Voltage Regulation | Yes |
| On Battery Voltage | 120 VAC ± 10% |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | NEMA 5-20R |
| Outlets – Battery & Surge Protected | 8 |
| Overload Protection |
Internal Circuitry Limiting
Circuit Breaker |
| Transfer Time | 10 ms |
| Battery | |
| Runtime at Half Load | 13 minutes |
| Runtime at Full Load | 5 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/9Ah |
| Battery Quantity | 4 |
| User Replaceable | Yes |
| Replacement Battery Cartridge | TBD |
| Replacement Battery Cartridge Quantity | 1 |
| Typical Recharge Time | 8 hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,840 J |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Coax Protection RG6 | 1-In, 1-Out |
| Management & Communications | |
| Multifunction LCD Panel |
Displays:
Current/Load Level Runtime Battery Level AVR In Use Battery In Use Input Voltage Output Voltage Output Frequency Overload Silent Mode |
| HID Compliant USB Port | Yes |
| Serial Port | Yes (2x) |
| Audible Alarms |
On Battery
Low Battery Overload Battery Missing Fault |
| Software | PowerPanel® Business Edition |
| SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
| Cable Management |
USB Cable
Serial Cable Phone Line |
| Physical | |
| Rack Size | 2U |
| Form Factor | Rack/Tower |
| Dimensions – W×H×D (in) | 17.25 × 3.5 × 15.75 inches |
| Weight (lbs) | 52.7 lbs |
| Environmental | |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Humidity | 0 – 95% (non-condensing) |
| Certifications | |
| Safety |
UL1778
cUL CSA C22.2 107.1 FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
