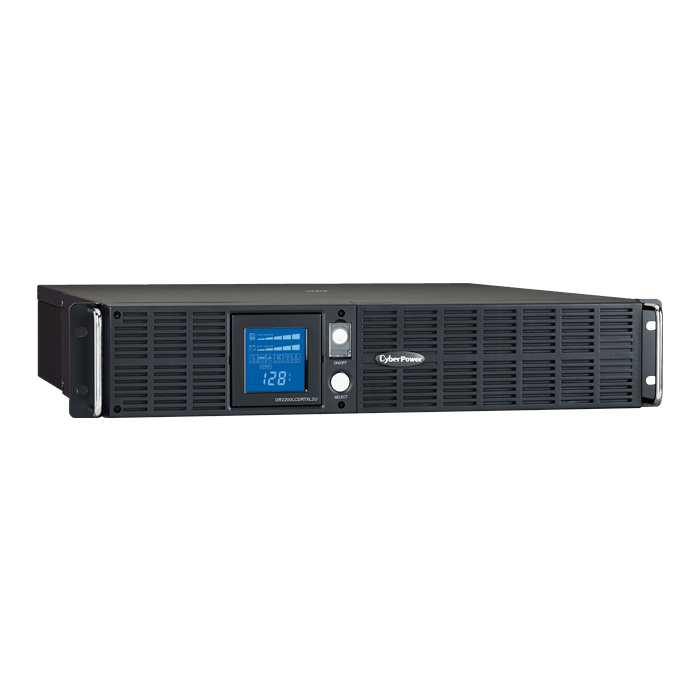

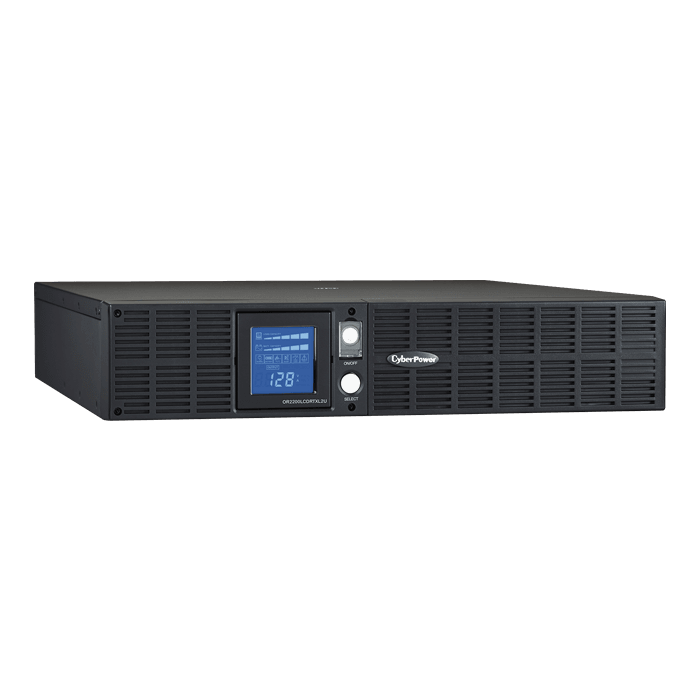

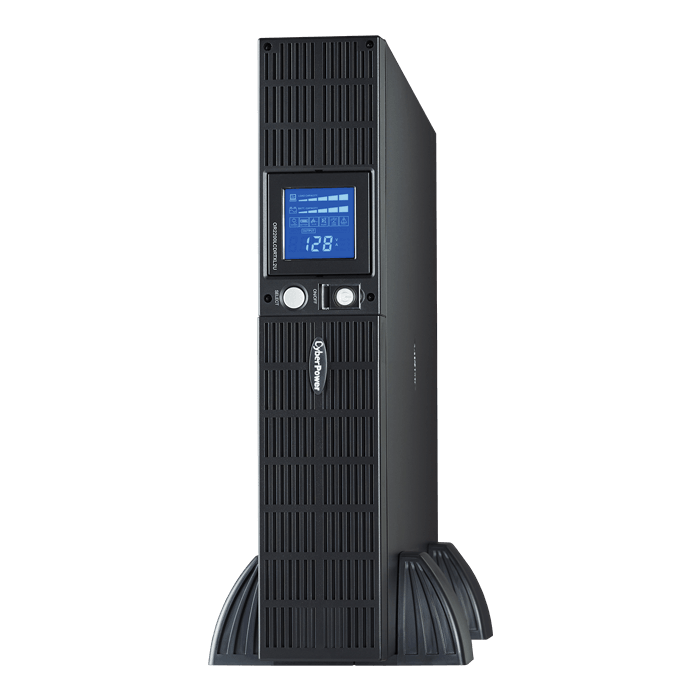

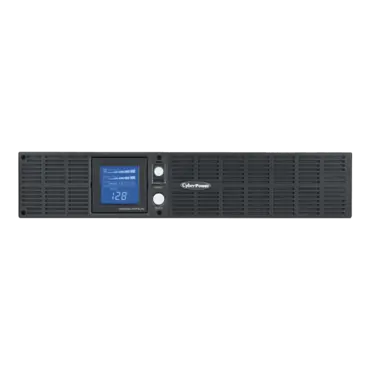

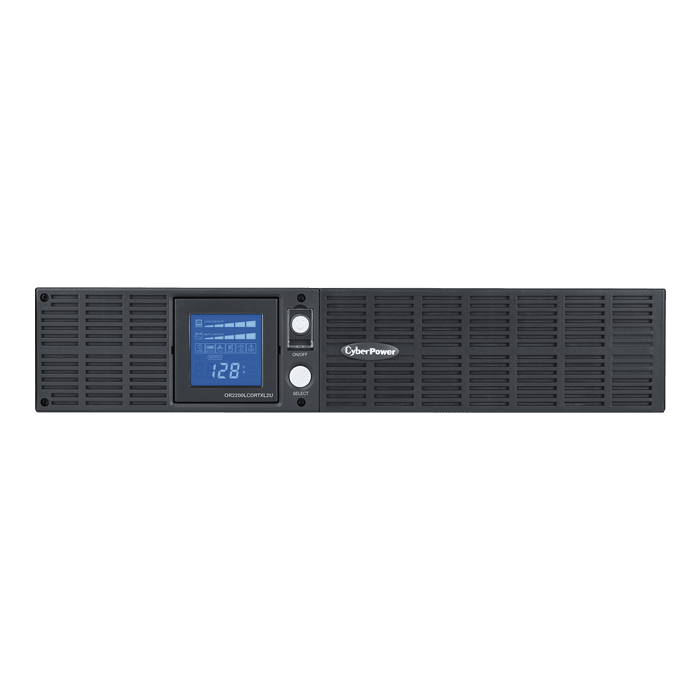

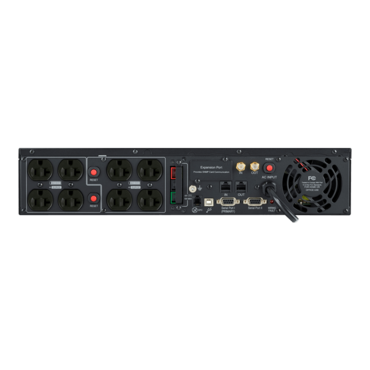

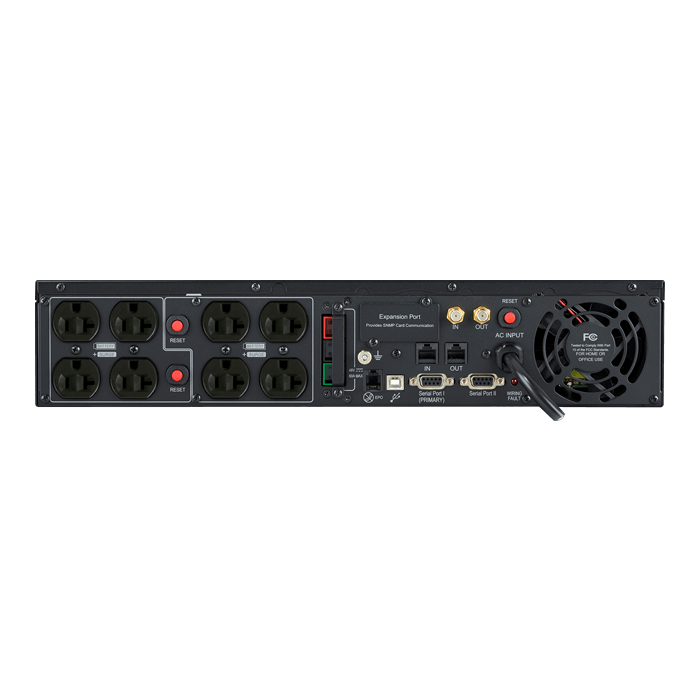

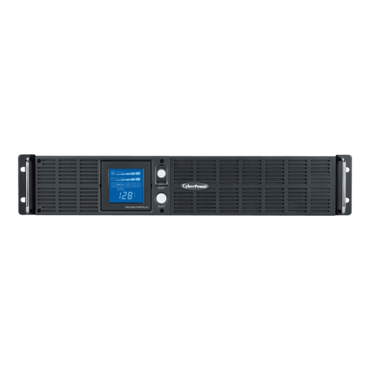

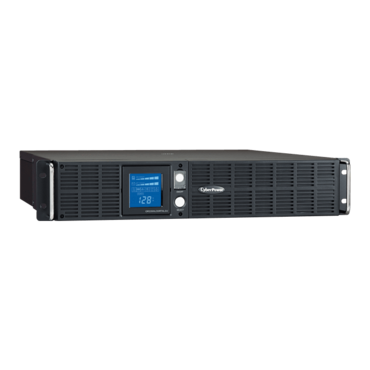

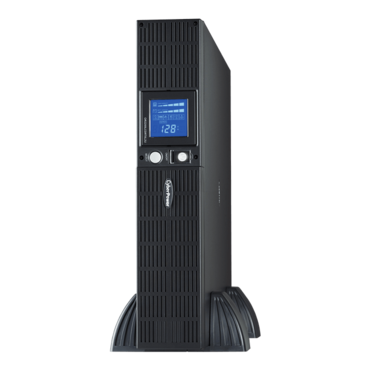

Smart App LCD OR2200LCDRTXL2U, 2100 VA/1650 W, Simulated Sine Wave, 2U Rackmount/Tower UPS
2190VA / 1650W Intelligent, Line-Interactive UPS with Smart App Software, AVR, 2U RM/T, 17.2 AMP, 8 x NEMA 5-20R, RJ11/RJ45/Coax, USB/Serial, SNMP/HTTP (optional), Extended Battery Packs Available
2190VA / 1650W Intelligent, Line-Interactive UPS with Smart App Software, AVR, 2U RM/T, 17.2 AMP, 8 x NEMA 5-20R, RJ11/RJ45/Coax, USB/Serial, SNMP/HTTP (optional), Extended Battery Packs Available
- Capacity: 2100 VA / 1650 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-20P, 10 ft. cord
- Outlet types: 8 × NEMA 5-20R
- Communication: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
General | |
Energy Saving | GreenPower UPS™ Bypass Technology |
UPS Topology | Line Interactive |
Battery | |
Battery Quantity | 4 |
Battery Size | 12 V / 9 Ah |
Battery Type | Sealed Lead-Acid Battery |
Extended Battery Module |
BP48VP2U02 BP48V75ART2U |
Hot Swappable | Yes |
Replacement Battery Cartridge | RB1290X4B |
Replacement Battery Cartridge Quantity | 1 |
Runtime at Full Load | 6 min |
Runtime at Half Load | 15 min |
Typical Recharge Time | 8 Hours |
User Replaceable Battery | Yes |
Input | |
Cord Length | 10 ft (3 m) |
Input Frequency Range | 47 – 63 Hz |
Input Plug Type | NEMA 5-20P |
Plug Style | Straight |
Output | |
Automatic Voltage Regulation | Single Boost |
On Battery Frequency | 60 Hz ± 1% |
On Battery Voltage | 120 VAC ± 5% |
On Battery Waveform | Simulated Sine Wave |
Outlet Type | NEMA 5-20R |
Outlets – Battery & Surge Protected | 8 |
Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
Typical Transfer Time | 4 ms |
VA | 2100 VA |
Watts | 1650 W |
Management & Communications | |
Audible Alarms |
Battery Mode Low Battery Overload |
HID Compliant USB Port | Yes |
LCD | Multifunction LCD |
LED Indicators |
Power On Wiring Fault |
Management Cable |
USB Cable Serial Cable (2) |
SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205 |
Serial Port |
1 Serial 1 Dry Contact |
Software (Free Download) | PowerPanel® Business |
Physical | |
Color | Black |
Form Factor | Rack / Tower |
Rack Height | 2U |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 43.18 x 8.89 x 47.75 (cm) |
Physical Dimensions – (WxHxD) (in) | 17 x 3.5 x 18.8 (in) |
Physical Dimensions – (WxHxD) (mm) | 432 x 89 x 478 (mm) |
Weight (kg) | 40.82 |
Weight (lb) | 90 |
Dimensions – Shipping | |
Shipping Dimensions – (WxHxD) (cm) | 55.25 x 26.67 x 60.96 (cm) |
Shipping Dimensions – (WxHxD) (in) | 21.75 x 10.5 x 24.0 (in) |
Shipping Dimensions – (WxHxD) (mm) | 552.45 x 266.7 x 609.6 (mm) |
Environmental | |
Operating Relative Humidity | 0 – 90 % (non-condensing) |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Certifications | |
Environmental | RoHS Compliant |
Safety | UL1778, CSA C22.2 No 107.3, FCC/DoC Class B |
Warranty | |
Connected Equipment Guarantee | Lifetime |
Extended Warranty Option | WEXT5YR-U4B |
Product Warranty | 3 Years Limited Warranty |
