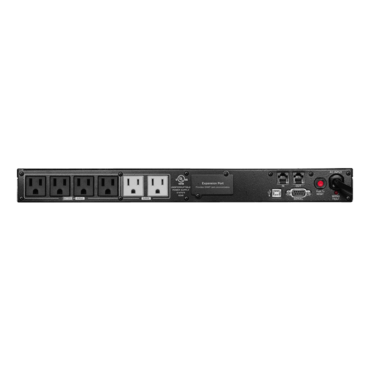

Smart App LCD OR500LCDRM1U, 500 VA/300 W, Simulated Sine Wave, 1U Rackmount UPS
500VA Office Rackmount LCD series UPS
500VA Office Rackmount LCD series UPS
- Capacity:500VA / 300W
- Topology:Line Interactive
- Waveform:Simulated Sine Wave
- Output:120Vac ± 10%
- Plug type & cord:NEMA 5-15P, 10 ft. cord
- Outlet types:6 × NEMA 5-15R
- Communication:USB, Relay, SNMP
- Management software:PowerPanel® Business
- Remote management:Yes, with optional RMCARD205
- ENERGY STAR® certified:Yes
- Warranty:3 year
General | |
---|---|
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS™ Bypass Technology |
ENERGY STAR® Qualified | Yes |
Input | |
Voltage | 90Vac - 140Vac |
Frequency | 57Hz - 63Hz |
Plug Type | NEMA 5-15P |
Plug Style | Straight |
Cord Length | 10' |
Output | |
VA | 500 |
Watts | 300 |
Automatic Voltage Regulation | Yes |
On Battery Voltage | 120Vac ± 10% |
On Battery Frequency | 60Hz ± 1% |
On Battery Waveform | Simulated Sine Wave |
Outlets - Total | 6 |
Outlet Type | NEMA 5-15R |
Outlets - Battery & Surge Protected | 4 |
Outlets - Surge-Only Protected | 2 |
Overload Protection | Internal circuitry limiting / circuit breaker |
Transfer Time | 4ms |
Battery | |
Runtime at Half Load (min) | 12 |
Runtime at Full Load (min) | 3 |
Battery Type | Sealed Lead-Acid |
Battery Size | 6V/7AH |
Replacement Battery | RB0670X2 |
Battery Quantity | 2 |
User Replaceable | Yes |
Typical Recharge Time | 8 Hours |
Surge Protection & Filtering | |
Surge Suppression | 1,030 Joules |
Maximum Surge Current | 6,500 Amps |
Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
Management & Communications | |
Multifunction LCD Panel | Displays: Current/Load Level, Runtime, Battery Level, Input Voltage, Output Voltage, Battery In Use, Overload, Silent Mode, Normal Mode |
HID Compliant USB Port | Yes |
Serial Port | Yes |
Management Cable | USB Cable, Serial Cable |
Audible Alarms | On Battery, Low Battery, Overload |
Software | PowerPanel® Business Edition |
SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD202, RMCARD203 or RMCARD205 |
Physical | |
Rack Size | 1U |
Form Factor | Rack |
Dimensions (WxHxD) (in.) | 17.25 x 1.75 x 9.25 |
Weight (lbs.) | 18.0 |
Environmental | |
Operating Temperature | 32°F to 95°F / 0°C to 35°C |
Operating Relative Humidity | 0% - 95% non-condensing |
Certifications | |
Safety | UL1778, cUL 107.1, FCC DOC Class B |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
