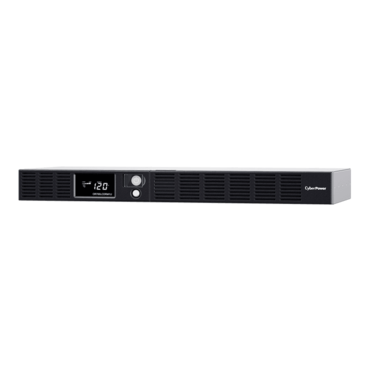

Smart App LCD OR700LCDRM1U, 700 VA/400 W, Simulated Sine Wave, 1U Rackmount UPS
Quantity:
- SKU: 1108553
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OR700LCDRM1U
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$299.95
Smart App LCD OR700LCDRM1U, 700 VA/400 W, Simulated Sine Wave, 1U Rackmount UPS
700VA Office Rackmount LCD series UPS
700VA Office Rackmount LCD series UPS
- Capacity: 700 VA / 400 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 6 × NEMA 5-15R
- Communication: USB, Serial, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- ENERGY STAR® certified: Yes
- Warranty: 3 year
| General | |
| Energy Saving | GreenPower UPS™ Bypass |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 6V/8Ah |
| Battery Type | Sealed Lead-Acid |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB0690X2 |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load (min) | 3 |
| Runtime at Half Load (min) | 11 |
| Typical Recharge Time | 8 Hours |
| User Replaceable | Yes |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 4.45 x 23.5 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 1.75 x 9.25 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 44 x 235 (mm) |
| Weight (kg) | 8.39 |
| Weight (lb) | 18.5 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 9.39 |
| Shipping – Weight (lb) | 20.7 |
| Shipping Dimensions – (WxHxD) (cm) | 53.09 x 15.49 x 31.75 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 20.9 x 6.1 x 12.5 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 530.86 x 154.94 x 317.5 (mm) |
| Input | |
| Adjustable Voltage Range | 88-144Vac |
| Cord Length (ft) | 10 ft |
| Frequency Range | 57-63Hz |
| Input Voltage Range | 90-140Vac |
| Nominal Input Voltage | 120Vac |
| Plug Style | Straight |
| Plug Type | NEMA 5-15P |
| Output | |
| Automatic Voltage Regulation | Yes |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120Vac ± 10% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | NEMA 5-15R |
| Outlets – Battery & Surge Protected | 4 |
| Outlets – Surge-Only Protected | 2 |
| Outlets – Total | 6 |
| Overload Protection | Internal Circuitry Limiting, Circuit Breaker |
| Transfer Time | Typical 8ms |
| VA | 700 |
| Watts | 400 |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Network Protection RJ45 | 1-in, 1-Out (10/100/1000) |
| Surge Suppression (Joules) | 1150 |
| Management & Communications | |
| Audible Alarms | On Battery, Low Battery, Overload, Fault |
| Dry Contact Port | Yes |
| HID Compliant USB Port | Yes |
| Management Cable | USB Cable |
| Multifunction LCD Panel | Yes |
| SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
| Software | PowerPanel® Business |
| Physical | |
| Form Factor | Rackmount |
| Rack Height | 1U |
| Environmental | |
| Operating Elevation | 0-10,000 ft (0-3,000 m) |
| Operating Relative Humidity | 0-95% (non-condensing) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Elevation | 0-50,000 ft (0-15,000 m) |
| Storage Relative Humidity | 0-95% (non-condensing) |
| Storage Temperature | 5 °F to 113 °F (-15 °C to 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778, cUL107.1, FCC Class B |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | 3 Years Limited |
