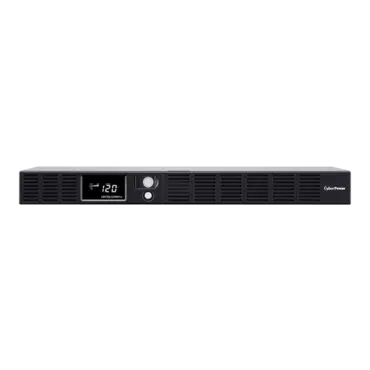

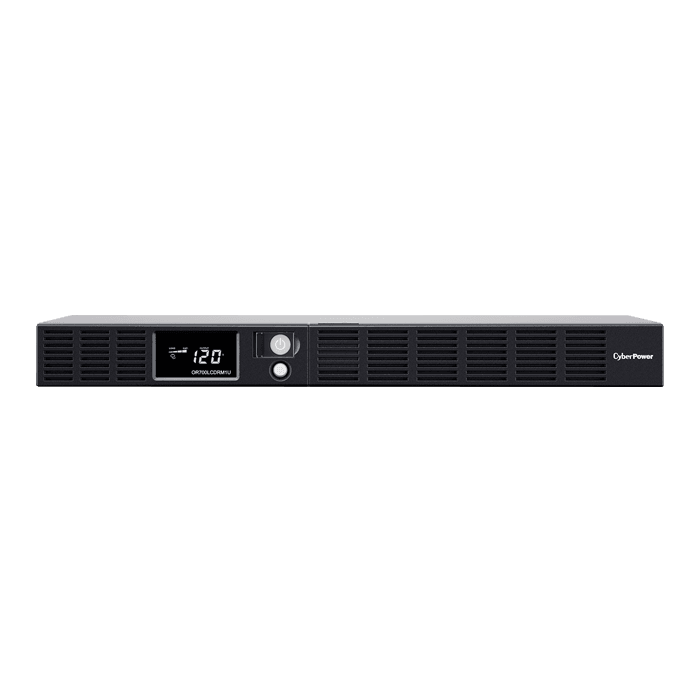

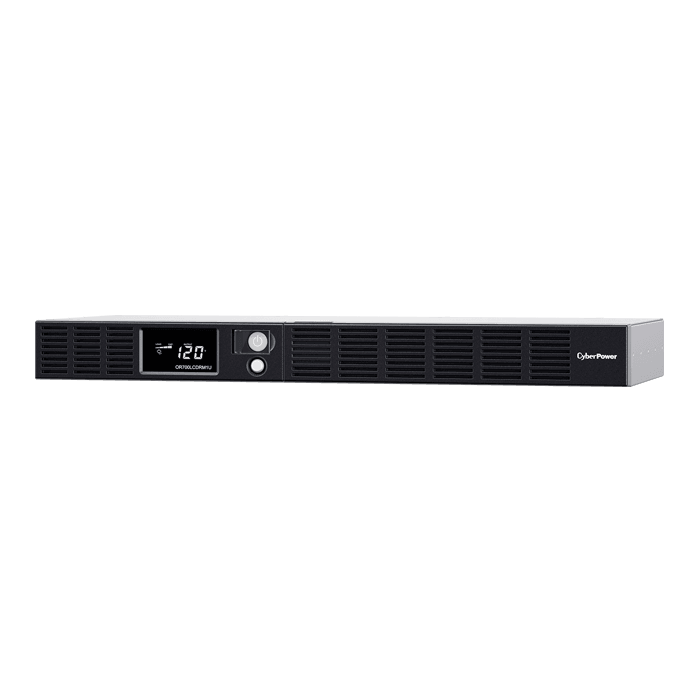

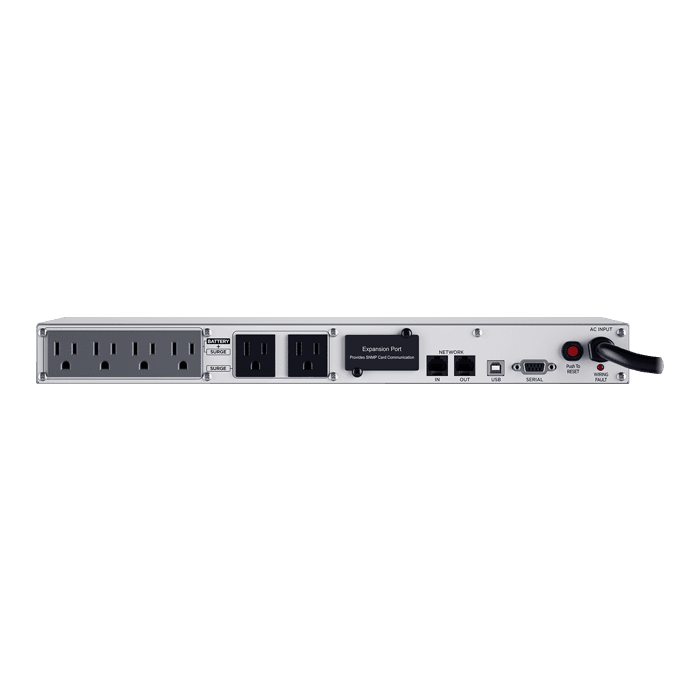

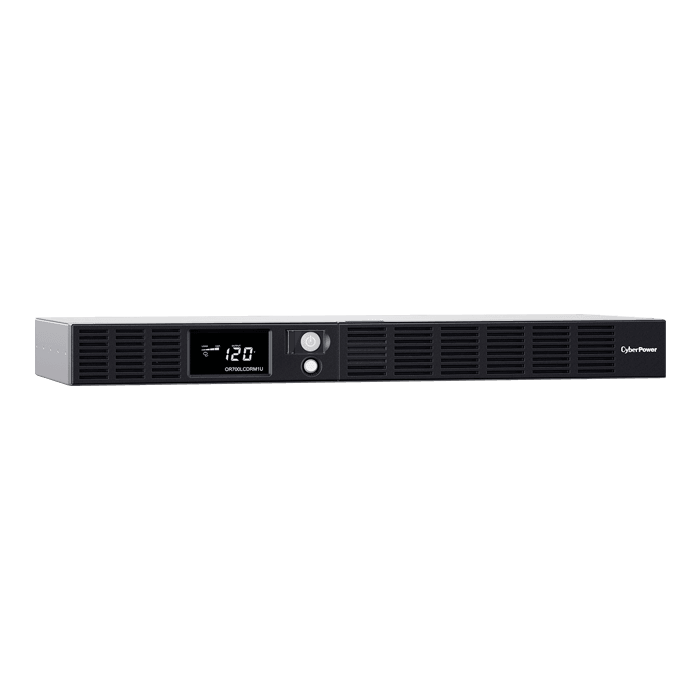

Smart App LCD OR700LCDRM1U, 700VA/400W, 120V, 6 Outlets, Black, 1U Rackmount UPS

SKU: 1108553



Availability: Available

Price: $215.95
or as low as $7/month

700VA Office Rackmount LCD series UPS

  • Capacity: 700 VA / 400 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 10%
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Outlet types: 6 × NEMA 5-15R
  • Communication: USB, Serial, SNMP
  • Management software: PowerPanel® Business
  • Remote management: Yes, with optional RMCARD205
  • ENERGY STAR® certified: Yes
  • Warranty: 3 year
Energy Saving GreenPower UPS™ Bypass
Energy Star Certified Yes
UPS Topology Line Interactive
Battery Quantity 2
Battery Size 6V/8Ah
Battery Type Sealed Lead-Acid
Hot Swappable Yes
Replacement Battery Cartridge RB0690X2
Replacement Battery Cartridge Quantity 1
Runtime at Full Load (min) 3
Runtime at Half Load (min) 11
Typical Recharge Time 8 Hours
User Replaceable Yes
Physical Dimensions – (WxHxD) (cm) 43.31 x 4.45 x 23.5 (cm)
Physical Dimensions – (WxHxD) (in) 17.05 x 1.75 x 9.25 (in)
Physical Dimensions – (WxHxD) (mm) 433 x 44 x 235 (mm)
Weight (kg) 8.39
Weight (lb) 18.5
Dimensions – Shipping
Shipping – Weight (kg) 9.39
Shipping – Weight (lb) 20.7
Shipping Dimensions – (WxHxD) (cm) 53.09 x 15.49 x 31.75 (cm)
Shipping Dimensions – (WxHxD) (in) 20.9 x 6.1 x 12.5 (in)
Shipping Dimensions – (WxHxD) (mm) 530.86 x 154.94 x 317.5 (mm)
Adjustable Voltage Range 88-144Vac
Cord Length (ft) 10 ft
Frequency Range 57-63Hz
Input Voltage Range 90-140Vac
Nominal Input Voltage 120Vac
Plug Style Straight
Plug Type NEMA 5-15P
Automatic Voltage Regulation Yes
On Battery Frequency 60 Hz ± 1%
On Battery Voltage 120Vac ± 10%
On Battery Waveform Simulated Sine Wave
Outlet Type NEMA 5-15R
Outlets – Battery & Surge Protected 4
Outlets – Surge-Only Protected 2
Outlets – Total 6
Overload Protection Internal Circuitry Limiting, Circuit Breaker
Transfer Time Typical 8ms
VA 700
Watts 400
Surge Protection & Filtering
EMI/RFI Filtration Yes
Network Protection RJ45 1-in, 1-Out (10/100/1000)
Surge Suppression (Joules) 1150
Management & Communications
Audible Alarms On Battery, Low Battery, Overload, Fault
Dry Contact Port Yes
HID Compliant USB Port Yes
Management Cable USB Cable
Multifunction LCD Panel Yes
SNMP / HTTP Remote Monitoring Yes, with optional RMCARD205
Software PowerPanel® Business
Form Factor Rackmount
Rack Height 1U
Operating Elevation 0-10,000 ft (0-3,000 m)
Operating Relative Humidity 0-95% (non-condensing)
Operating Temperature 32 °F to 104 °F (0 °C to 40 °C)
Storage Elevation 0-50,000 ft (0-15,000 m)
Storage Relative Humidity 0-95% (non-condensing)
Storage Temperature 5 °F to 113 °F (-15 °C to 45 °C)
Environmental RoHS Compliant
Safety UL1778, cUL107.1, FCC Class B
Connected Equipment Guarantee Lifetime
Product Warranty 3 Years Limited
