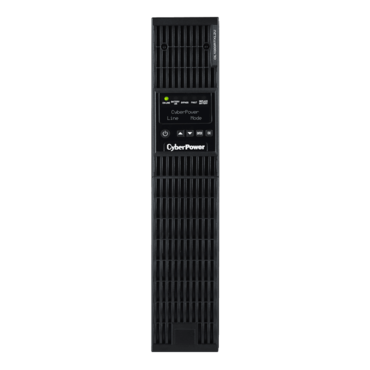

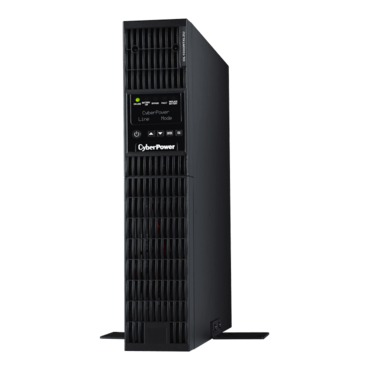

Smart App Online OL1000RTXL2UN, LCD, 1000 VA/900 W, Sine Wave, 2U Rackmount/Tower UPS

Quantity:
  • SKU: 12588392
  • Manufacturer: CYBERPOWER SYSTEMS
  • MPN: OL1000RTXL2UN
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$1,079.95
Quantity:
  • Capacity: 1000 VA / 900 W
  • Power Factor (PF): 0.9
  • Topology: Double-Conversion
  • Waveform: Sine Wave
  • Output: 100, 110, 115, 120, 125 V ± 2% (configurable)
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Outlet types: 8 × NEMA 5-15R
  • Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
  • Data line surge protection: Telephone, Network
  • Management software: PowerPanel® Business Edition
  • Warranty: 3 year
General
Energy Saving Yes, ECO Mode Efficiency >94%
UPS Topology Double Conversion
Battery
Battery Quantity 3
Battery Size 12V/9Ah
Battery Type Sealed Lead-Acid
Extended Battery Option BP36V60ART2U
Hot Swappable Yes
Replacement Battery Cartridge RB1290X3L
Replacement Battery Cartridge Quantity 1
Runtime at Full Load 7.4 minutes
Runtime at Half Load 20 minutes
Smart Battery Management (SBM) Mode Yes
Typical Recharge Time 4 h (0% to 90%)
Dimensions
Physical Dimensions – (WxHxD) (cm) 43.18 x 8.89 x 42.93 (cm)
Physical Dimensions – (WxHxD) (in) 17 x 3.5 x 16.9 (in)
Physical Dimensions – (WxHxD) (mm) 432 x 89 x 429 (mm)
Weight (kg) 17.96
Weight (lb) 39.6
Dimensions – Shipping
Shipping – Weight (kg) 24.27
Shipping – Weight (lb) 53.5
Shipping Dimensions – (WxHxD) (cm) 54.61 x 23.55 x 57.15 (cm)
Shipping Dimensions – (WxHxD) (in) 21.5 x 9.27 x 22.5 (in)
Shipping Dimensions – (WxHxD) (mm) 546.1 x 235.46 x 571.5 (mm)
Input
Cold Start Yes
Cord Length (ft) 10
Cord Length (m) 3
Frequency Range 40 – 70 Hz (auto sensing)
Input Power Factor 0.99
Input Voltage Range 60 – 69 VAC for 0–60% load
70 – 79 VAC for 0–70% load
80 – 89 VAC for 0–80% load
90 – 95 VAC for 0–90% load
96 – 150 VAC for 0–100% load
Plug Type NEMA 5-15P
Output
Bypass Internal Bypass (Automatic and Manual)
Crest Factor 3:1
Harmonic Distortion THD < 3% at Linear Load, < 5% at Non-linear Load
On Battery Frequency 50/60 Hz ± 0.25 Hz (auto-sensing or configurable)
On Battery Voltage 100, 110, 115, 120, 125 V ± 2% (configurable)
On Battery Waveform Sine wave
Outlet Type NEMA 5-15R (8)
Outlets – Total 8
Overload Protection Line Mode:
105% to 125% load for 1 min
126% to 150% load for 10 sec
Battery Mode:105% to 130% load for 10 sec
131% to 150% load for 2 sec
Rated Power Factor 0.9
Transfer Time 0 ms
VA 1,000 VA
Watts 900 W
Surge Protection & Filtering
EMI/RFI Filtration Yes
Phone RJ11 / Ethernet RJ45 1-In / 1-Out (Combo)
Surge Protection 1780 Joules, per IEC 61000-4-5 Level 3
Management & Communications
Audible Alarms Battery Mode
Battery Low
Overload
UPS Fault
Cables Included USB cable, Serial cable, Phone cable
Dry Contacts Yes
EPO Port Yes
Expansion Slot RMCARD205 pre-installed
HID Compliant USB Port Yes
LCD Control Panel Supports: Multi-Language Interface, 25 Types of Function Setting, 24 Types of Read Out and 5 Event Logs.
LED Indicators Power On (white)
Line Mode (green)
Battery Mode (yellow)
Bypass Mode (yellow)
Fault (red)
Replace Battery (red)
Removable LCD Control Panel Option Yes – Requires a separate DB26 Cable
Rotatable LCD Control Panel Option Yes
Serial Port Yes
Software PowerPanel® Business Edition
Upgradeable firmware Yes
Physical
Color Black
Enclosure Construction Steel
Form Factor Rack/Tower
Mounting Hardware Included
Rack Size 2U
Weight (lbs) 39.6
Environmental
Audible noise at 1m from surface of unit 38 to 55 dBA (0 to 100% load)
ECO Mode Thermal Dissipation (100% Load) 108 BTU/h
Operating Elevation 0 – 10,000 ft (0 – 3,000 m)
Operating Relative Humidity 0 – 90% (non-condensing)
Operating Temperature 32 – 104 °F (0 – 40 °C)
Storage Elevation 0 – 50,000 ft (0 – 15,000 m)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Temperature -4°F to 113 °F (-20°C to 45 °C)
UPS Online Thermal Dissipation 274 BTU/hr
Certifications
Environmental ROHS compliant
Safety UL 1778 5th Ed.CSA C22.2 NO.107.3-05FCC Part 15 Class A
CSA C22.2 NO.107.3-05
FCC Part 15 Class B
Warranty
Connected Equipment Guarantee Lifetime
Extended 2-Year Warranty WEXT5YR-U4A
Product Warranty 3 Years Limited
