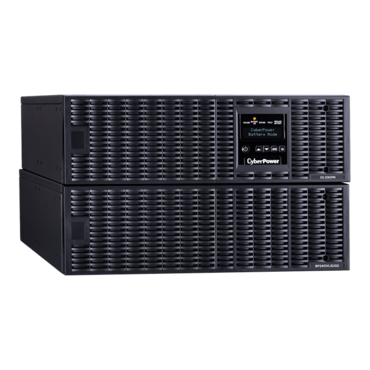

- Capacity: 10,000 VA / 10,000 W
- Output Power Factor (PF): 1
- Topology: Double Conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 V ±2% User Configurable
- Plug type: Hardwire

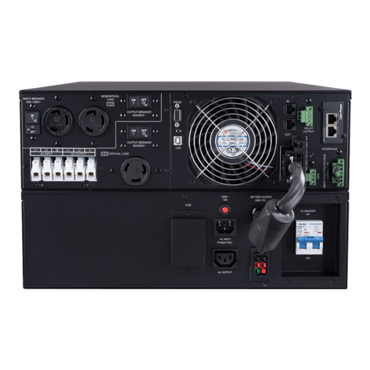

- Outlet types: 3 × NEMA L6-30R, 1 × Hardwire Terminal Block
- Communication ports: USB, Serial, Ethernet, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes, RMCARD205 pre-installed
- Energy saving: ECO Mode Efficiency up to 97%
- Warranty: Three-Year Limited
General | |
UPS Topology | Double Conversion |
Energy Saving | Yes – ECO Mode Efficiency up to 97% |
Input | |
Nominal Voltage | 200 V to 240 V |
Voltage Range |
120 V to 139 V, 0% to 25% load 140 V to 159 V, 0% to 50% load 160 V to 179 V, 0% to 75% load 180 V to 280 V, 0% to 100% load |
Frequency Range | 40 Hz to 70 Hz (auto-sensing) |
Power Factor | 0.99 |
Cold Start | Yes |
Backfeed Protection | Yes |
Plug Type | Hardwire |
Cord Length (ft) | NA |
Cord Length (m) | NA |
Output | |
VA | 10,000 (10 kVA) |
Watts | 10,000 (10 kW) |
Power Factor | 1 |
Waveform (Battery Mode) | Sine wave |
Nominal Voltage (Battery Mode) | 200, 208, 220, 230, 240 V ±2% (configurable) |
Frequency | 50/60 Hz ±0.25 Hz (auto-sensing/configurable) |
ECO Mode Bypass Voltage Range | ±10%, ±15% (configurable) |
Harmonic Distortion | <3% at linear load,<5% at non-linear load |
Crest Factor | 3:1 |
Outlets – Total | 4 |
Outlet Type | (3) NEMA L6-30R, (1) Hardwire Terminal Block |
Overload Protection |
Line Mode: 105% to 125% load for 1 min 126% to 150% load for 10 sBattery Mode: 105% to 130% load for 10 s 131% to 150% load for 2 s |
Short Circuit Protection | UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection |
Bypass | Internal Bypass (Automatic and Manual) |
Transfer Time | 0 ms |
Battery | |
Runtime at Half Load | 10 min |
Runtime at Full Load | 3.6 min |
Battery Type | Sealed lead acid |
Battery Size | 12 V/9 Ah |
Battery Quantity | 20 |
Replaceable | Yes |
Replacement Battery | (2) RB1290X10 |
Hot Swappable | Yes |
Typical Recharge Time | 5 h (0% to 90%) |
Smart Battery Management (SMB) Mode | Yes |
Extended Battery Module (EBM) | Optional BP240VL3U01 |
Surge Protection & Filtering | |
Surge Protection | 2430 Joules, per IEC 61000-4-5 Level 3 |
Phone RJ-11 / Ethernet Surge Protection RJ-45 | 1-In / 1-Out (Combo) |
EMI/RFI Filtration | Yes |
Management & Communications | |
LCD Control Panel | Access 50 information status and configuration settings via the Information and Configuration Menus, in addition to an Event Log Menu. |
Rotatable LCD Control Panel Option | Yes |
Removable LCD Control Panel Option | Yes – Requires DB26 cable (not included) |
HID Compliant USB Port | Yes |
Serial Port | Yes |
Emergency Power Off (EPO) Port | Yes |
Dry Contact Port | Yes |
Cables Included | USB cable, serial cable, phone cable |
LED Indicators |
Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red) |
Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault |
Software | PowerPanel® Business Edition |
Upgradeable Firmware | Yes |
Expansion Slot | Yes – RMCARD205 pre-installed |
Physical | |
Form Factor | Rack / Tower |
Enclosure Contruction | Steel |
Rack Mounting Hardware | Included |
Physical Dimensions | |
Dimensions (WxHxD, in) | 17 x 10.5 x 26 |
Dimensions (WxHxD, mm) | 433 x 266 x 660 |
Weight (lb) | 226.6 |
Weight (kg) | 103 |
Rack Units | 6U |
Max. Mounting Rail Depth (in) | 36.02 |
Min. Mounting Rail Depth (in) | 20.47 |
Environmental | |
Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
Operating Relative Humidity | 0% to 90% non-condensing |
Operating Elevation | 0 ft to 10,000 ft (0 to 3,000 m) |
Storage Temperature | -4 °F to 113 °F (-20 °C to 45 °C) |
Storage Relative Humidity | 0% to 95% non-condensing |
Storage Elevation | 0 ft to 50,000 ft (0 m to 15,000 m) |
UPS Online Thermal Dissipation (100% load) | 3211 BTU/h |
ECO Mode Thermal Dissipation (100% load) | 1019 BTU/h |
Audible noise at 1 m from surface of unit | 38 dBA to 65 dBA (0% to 100% load) |
Certifications | |
Safety |
UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A |
Environmental | ROHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Extended 2-Year Warranty | Optional WEXT5YR-U20C |
Connected Equipment Guarantee | Lifetime |
