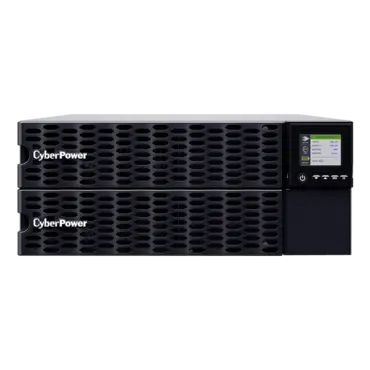

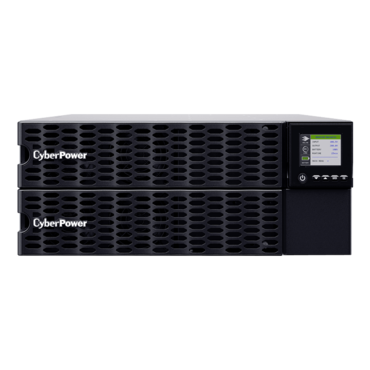

Smart App Online OL10KRTHD, LCD, 10000 VA/10000 W, Sine Wave, 4U Rackmount/Tower UPS
Quantity:
- SKU: 15721796
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OL10KRTHD
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$8,849.95
| General | |
| Energy Saving | ECO Mode Efficiency >98% |
| Energy Star Certified | Yes |
| UPS Topology | Online Double Conversion |
| Battery | |
| Battery Equalization Technology | Yes |
| Battery Quantity | 16 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Extended Battery Module | BP192VL2U01 |
| Field-serviceable Battery | Replaceable by qualified technician |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | (2) RB1290X8 |
| Runtime at Full Load | 2.4 min |
| Runtime at Half Load | 8.3 min |
| Smart Battery Management (SBM) Mode | Yes |
| Typical Recharge Time | 4 Hours (0% to 90% charged) |
| Input | |
| Backfeed Protection | Yes |
| Circuit Breaker | 70 A |
| Cold Start | Yes |
| Input Frequency Range | 40 Hz – 70 Hz |
| Input Plug Type | Hardwire |
| Input Power Factor | 0.99 |
| Input Voltage Range |
120 VAC – 139 VAC for 0–25% Load 140 VAC – 159 VAC for 0-50% Load 160 VAC – 179 VAC for 0–75% Load 180 VAC – 280 VAC for 0–100% Load |
| Nominal Input Voltage | 200 – 240 VAC |
| Output | |
| Bypass | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| ECO Mode Voltage Regulation | ±10%, ±15% (configurable) |
| Harmonic Distortion |
< 3% at Linear Load < 5% at Non-Linear Load |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 0.25Hz (auto-sensing or configurable) |
| On Battery Voltage | 200/208/220/230/240 VAC ± 2% (configurable) |
| On Battery Waveform | Sine Wave |

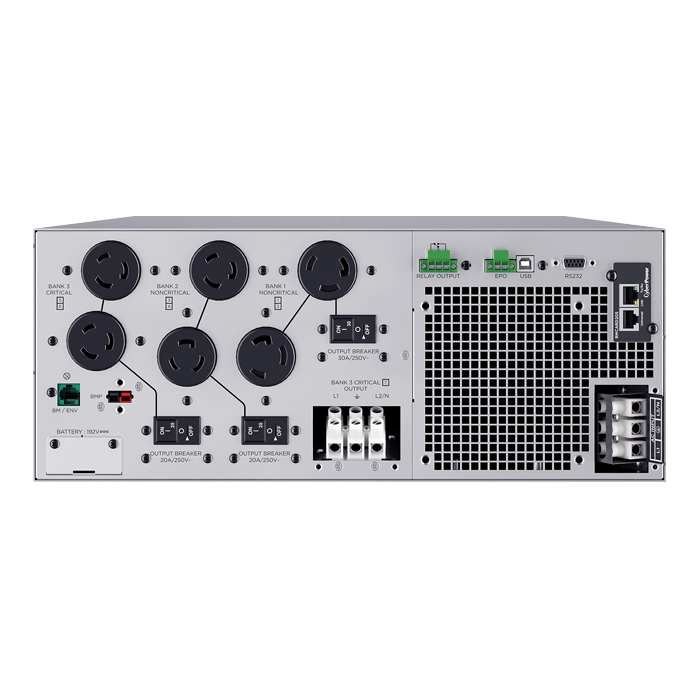

| Outlet Type |
4 – NEMA L6-20R 2 – NEMA L6-30R 1 – Hardwire Terminal Block |
| Outlets – Total | 6 |
| Output Power Factor | 1 |
| Short Circuit Protection |
UPS Output Cut off Immediately Input Fuse / Circuit Breaker Protection |
| Typical Transfer Time | 0 ms |
| USB Charge Port | No |
| VA | 10000 VA |
| Watts | 10000 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 2430 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload UPS Fault |
| Dry Contacts | No |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On (White) |
| Management Cable | USB Cable |
| Removable LCD Control Panel Option | No |
| Rotatable LCD Control Panel Option | Yes |
| SNMP / HTTP Remote Monitoring | Yes – RMCARD205 pre-installed |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Chassis Color | Unpainted |
| Form Factor | Rack / Tower |
| Front Panel Color | Black |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 17.27 x 72.01 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 6.8 x 28.35 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 173 x 720 (mm) |
| Physical Weight (kg) | 71.21 |
| Physical Weight (lb) | 157 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 90.72 |
| Shipping – Weight (lb) | 200 |
| Shipping Dimensions – (WxHxD) (cm) | 59.94 x 45.21 x 88.9 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 23.6 x 17.8 x 35 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 599.44 x 452.12 x 889.0 (mm) |
| Environmental | |
| Audible noise at 1m from surface of unit | 35 dBA to 66 dBA (0% to 100% load) |
| Online Thermal Dissipation | 2044 BTU/hr |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | -4 – 113 °F (-20 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL1778 CSA C22.2 No.107.3 FCC Part 15 Class A |
| Warranty | |
| CEG Amount | $300000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U20C |
| Product Warranty | 3 Year Limited Warranty |
