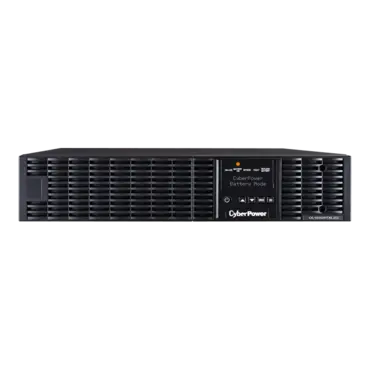

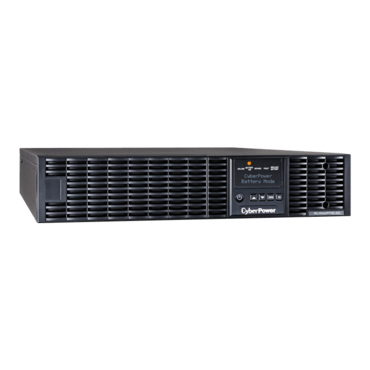

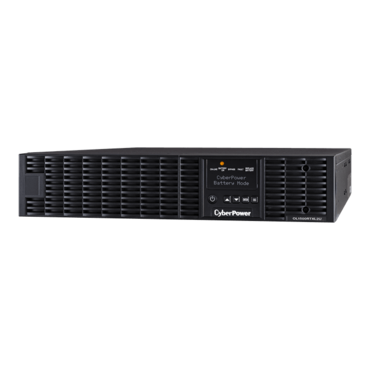

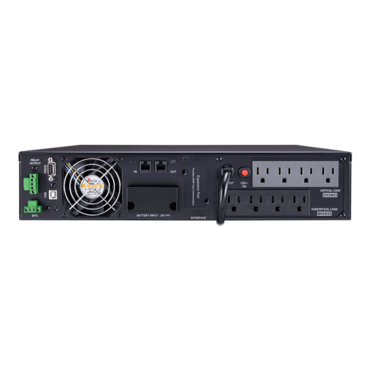

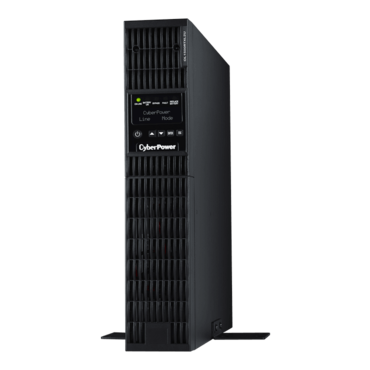

Smart App Online OL1500RTXL2U, 1500VA/1350W, 125V, 8 Outlets, Black, Tower/2U Rackmount UPS

SKU: 7248690

Manufacturer: CYBERPOWER SYSTEMS

MPN: OL1500RTXL2U

Availability: Available


Price: $799.95
or as low as $26/month
Quantity:

1.5KVA SMART APP ONLINE UPS PURESINE 100-125V LCD 5-15P 2U RT 3YR

  • Capacity: 1500 VA / 1350 W
  • Power Factor (PF): 0.9
  • Topology: Double-Conversion
  • Waveform: Sine Wave
  • Output: 100, 110, 115, 120, 125 V ±2% (configurable)
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Outlet types: 8 × NEMA 5-15R
  • Monitoring & Management: USB, Serial, Network, Relay, EPO
  • Data line surge protection: Telephone, Network
  • Management software: PowerPanel® Business Edition
General
UPS Topology Double Conversion
Energy Saving Yes, ECO Mode Efficiency >95%
Input
Voltage 100-125Vac
Input Voltage Range 60 – 69 VAC for 0–60% load
70 – 79 VAC for 0–70% load
80 – 89 VAC for 0–80% load
90 – 95 VAC for 0–90% load
96 – 150 VAC for 0–100% load
Frequency Range 40 – 70 Hz
Input Power Factor 0.99
Cold Start Yes
Plug Type NEMA 5-15P
Cord Length (ft) 10
Cord Length (m) 3
Output
VA 1,500 VA at 120, 125 V
1,350 VA at 115, 110 V
1,200 VA at 100 V
Watts 1,350 W at 120, 125 V
1,215 W at 115, 110 V
1,080 W at 100 V
On Battery Voltage 100, 110, 115, 120, 125 V ± 2% (configurable)
On Battery Frequency 50/60 Hz ± 0.25 Hz (auto-sensing or configurable)
On Battery Waveform Sine wave
Outlet Type NEMA 5-15R (8)
Outlets – Total 8
Rated Power Factor 0.9
Crest Factor 3:1
Harmonic Distortion THD < 3% at Linear Load, < 5% at Non-linear Load
ECO Mode Bypass Voltage Range ±10%, ±15% (Configurable)
Bypass Internal Bypass (Automatic and Manual)
Overload Protection Line Mode:
105% to 125% load for 1 min
126% to 150% load for 10 sec
Battery Mode:105% to 130% load for 10 sec
131% to 150% load for 2 sec
Transfer Time 0ms
Battery
Runtime at Half Load 11 minutes
Runtime at Full Load 3.4 minutes
Battery Type Sealed Lead-Acid
Battery Size 12V/9Ah
Battery Quantity 3
Hot Swappable Yes
Replaceable Yes
Replacement Battery Cartridge RB1290X3L
Replacement Battery Cartridge Quantity 1
Typical Recharge Time 4 h (0% to 90%)
Extended Battery Option BP36V60ART2U
Smart Battery Management (SMB) Mode Yes
Surge Protection & Filtering
Surge Protection 1780 Joules, per IEC 61000-4-5 Level 3
Phone RJ11 / Ethernet RJ45 1-In / 1-Out (Combo)
EMI/RFI Filtration Yes
Management & Communications
LCD Control Panel Access 23 scrollable system metrics, 25 configuration settings, and an events log.
Rotatable LCD Control Panel Option Yes
Removable LCD Control Panel Option Yes – Requires a separate DB26 Cable
HID Compliant USB Port Yes
Serial Port Yes
EPO Port Yes
Dry Contacts Yes
Cables Included USB cable, Serial cable, Phone cable
LED Indicators Power On (white)
Line Mode (green)
Battery Mode (yellow)
Bypass Mode (yellow)
Fault (red)
Replace Battery (red)
Audible Alarms Battery Mode
Battery Low
Overload
UPS Fault
Software PowerPanel® Business Edition
Upgradeable UPS Firmware Yes, requires RMCARD2051
Expansion Slot Yes, optional RMCARD205 or RELAYIO500
Physical
Rack Size 2U
Form Factor Rack/Tower
Enclosure Construction Steel
Mounting Hardware Included
Dimensions – W×H×D (in.) 17 x 3.5 x 16.9
Dimensions – W×H×D (mm.) 433 x 88 x430
Weight (lbs) 39.6
Weight (kg) 18
Shipping Dimensions – W×H×D (in.) 21.65 x 9.45 x 23.23
Shipping Dimensions – W×H×D (mm.) 550 x 240 x 590
Shipping Weight (lbs) 53.9
Shipping Weight (kg) 24.4
Environmental
Operating Temperature 32 – 104 °F (0 – 40 °C)
Operating Relative Humidity 0 – 90% (non-condensing)
Operating Elevation 0 – 10,000 ft (0 – 3,000 m)
Storage Temperature -4°F to 113 °F (-20°C to 45 °C)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Elevation 0 – 50,000 ft (0 – 15,000 m)
Online Thermal Dissipation 529 BTU/h
ECO Mode Thermal Dissipation (100% Load) 232 BTU/h
Audible noise at 1 m from surface of unit 38 dBA to 55 dBA (0% to 100% load)
Certifications
Safety UL 1778 5th Ed.
CSA C22.2 NO.107.3-05
FCC Part 15 Class B
Environmental ROHS Compliant
Warranty
Product Warranty 3 Years Limited
Connected Equipment Guarantee Lifetime
