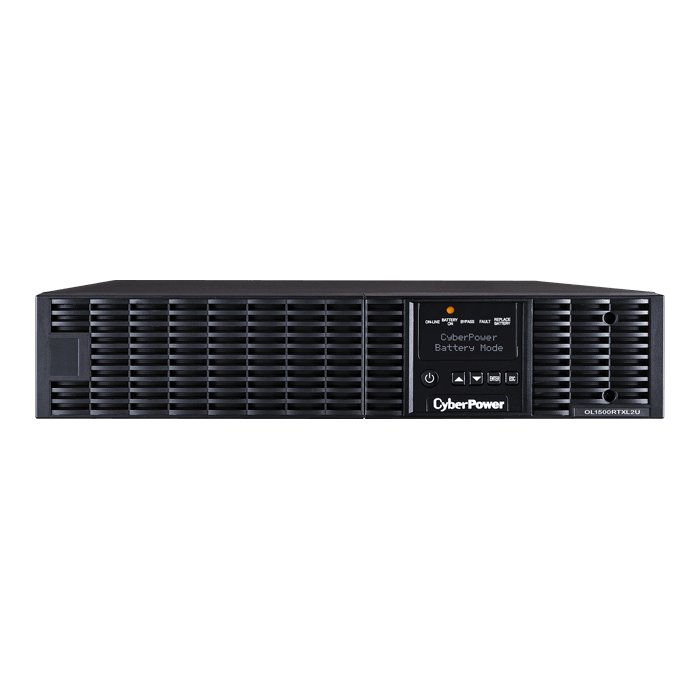

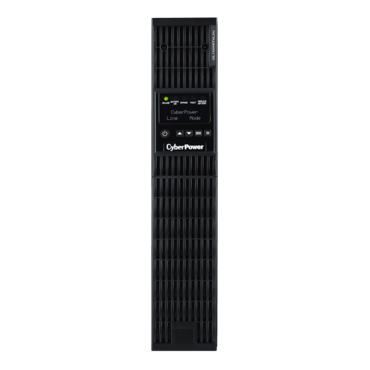

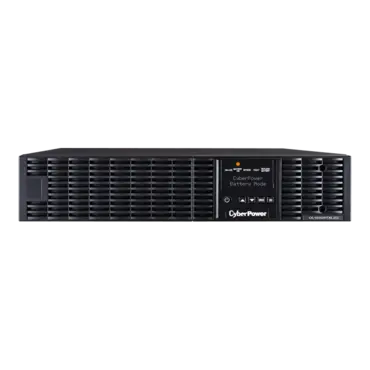

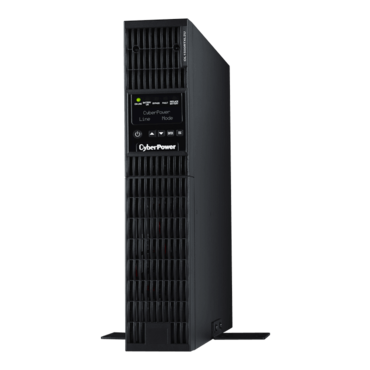

Smart App Online OL1500RTXL2UN, 1500 VA/1350 W, 125V, Black, Sine Wave, 3U Rackmount/Tower UPS
- SKU: 10449574
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OL1500RTXL2UN
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$1,463.95
- Capacity: 1500 VA / 1350 W
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ±2% (configurable)
- Plug type & cord: NEMA 5-15P, 10 ft. cord

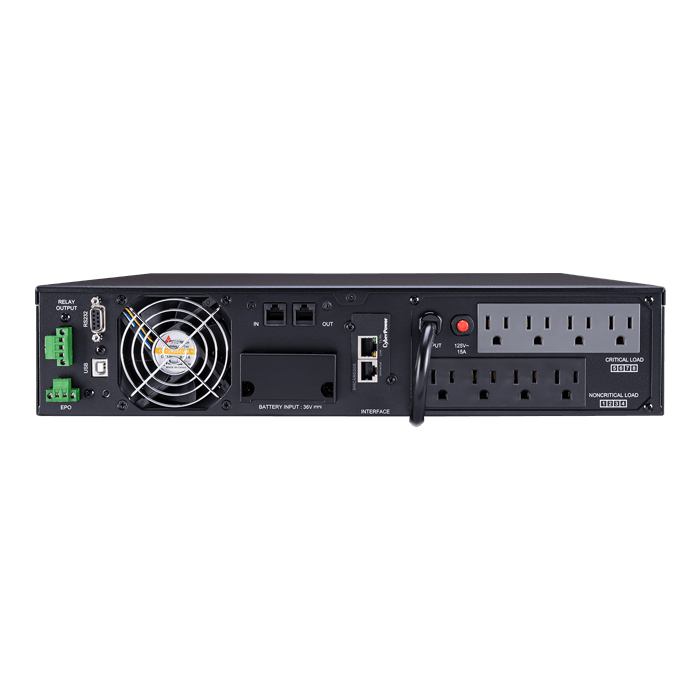

- Outlet types: 8 × NEMA 5-15R
- Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
- Warranty: 3 year
| General | |
| UPS Topology | Double Conversion |
| Energy Saving | Yes, ECO Mode Efficiency >95% |
| Input | |
| Input Voltage Range |
60 – 69 VAC for 0–60% load 70 – 79 VAC for 0–70% load 80 – 89 VAC for 0–80% load 90 – 95 VAC for 0–90% load 96 – 150 VAC for 0–100% load |
| Frequency Range | 40 – 70 Hz (auto sensing) |
| Input Power Factor | 0.99 |
| Cold Start | Yes |
| Plug Type | NEMA 5-15P |
| Cord Length (ft) | 10 |
| Cord Length (m) | 3 |
| Output | |
| VA |
1,500 VA at 120, 125 V 1,350 VA at 115, 110 V 1,200 VA at 100 V |
| Watts |
1,350 W at 120, 125 V 1,215 W at 115, 110 V 1,080 W at 100 V |
| Rated Power Factor | 0.9 |
| On Battery Waveform | Sine wave |
| On Battery Voltage | 100, 110, 115, 120, 125 V ± 2% (configurable) |
| On Battery Frequency | 50/60 Hz ± 0.25 Hz (auto-sensing or configurable) |
| Harmonic Distortion | THD < 3% at Linear Load, < 5% at Non-linear Load |
| Crest Factor | 3:01 |
| Outlets – Total | 8 |
| Outlet Type | NEMA 5-15R (8) |
| Overload Protection |
Line Mode: 105% to 125% load for 1 min 26% to 150% load for 10 sec Battery Mode: 105% to 130% load for 10 sec 131% to 150% load for 2 sec |
| Bypass | Internal Bypass (Automatic and Manual) |
| Transfer Time | 0 ms |
| Battery | |
| Runtime at Half Load | 11 minutes |
| Runtime at Full Load | 3.4 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/9Ah |
| Battery Quantity | 3 |
| Replacement Battery Cartridge | RB1290X3L |
| Replacement Battery Cartridge Quantity | 1 |
| Hot Swappable | Yes |
| Typical Recharge Time | 4 h (0% to 90%) |
| Smart Battery Management (SBM) Mode | Yes |
| Extended Battery Option | BP36V60ART2U |
| Surge Protection & Filtering | |
| Surge Protection | 1780 Joules, per IEC 61000-4-5 Level 3 |
| Phone RJ11 / Ethernet RJ45 | 1-In / 1-Out (Combo) |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| LCD Control Panel | Supports: Multi-Language Interface, 25 Types of Function Setting, 24 Types of Read Out and 5 Event Logs. |
| Rotatable LCD Control Panel Option | Yes |
| Removable LCD Control Panel Option | Yes – Requires a separate DB26 Cable |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| Dry Contacts | Yes |
| Cables Included |
USB cable Serial cable Phone cable |
| LED Indicators |
Power On (white) Line Mode (green) Battery Mode (yellow) Bypass Mode (yellow) Fault (red) Replace Battery (red) |
| Audible Alarms |
Battery Mode Battery Low Overload UPS Fault |
| Software | PowerPanel® Business Edition |
| Upgradeable Firmware | Yes |
| Expansion Slot | RMCARD205 pre-installed |
| Physical | |
| Form Factor | Rack/Tower |
| Color | Black |
| Enclosure Construction | Steel |
| Mounting Hardware Included | Yes |
| Dimensions (WxHxD) (in.) | 17 x 3.5 x 16.9 (in) |
| Dimensions (WxHxD) (mm.) | 432 x 89 x 429 (mm) |
| Weight (lbs) | 39.6 |
| Weight (kg) | 17.96 |
| Rack Size | 2U |
| Shipping Dimensions | |
| Dimensions (WxHxD) (in.) | 9.14 x 22.5 x 21.5 (in) |
| Dimensions (WxHxD) (mm.) | 232.16 x 571.5 x 546.1 (mm) |
| Weight (lbs) | 55 |
| Weight (kg) | 24.95 |
| Environmental | |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Relative Humidity | 0 – 95% (non-condensing) |
| Operating Elevation | 0 – 10,000 ft (0 – 3,000 m) |
| Storage Temperature | -4°F to 113 °F (-20°C to 45 °C) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Elevation | 0 – 50,000 ft (0 – 15,000 m) |
| UPS Online Thermal Dissipation (100% load) | 478 BTU/hr |
| ECO Mode Thermal Dissipation (100% Load) | 207 BTU/h |
| Audible noise at 1m from surface of unit | 38 to 55 dBA (0 to 100% load) |
| Certifications | |
| Safety |
UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class B |
| Environmental | RoHS compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Extended 2-Year Warranty | Optional WEXT5YR-U4A |
| Connected Equipment Guarantee | Lifetime |
