- Capacity: 2200 VA / 1800 W
- Power Factor (PF): 0.82
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ±2% (configurable)
- Plug type & cord: NEMA 5-20P, 10 ft. cord

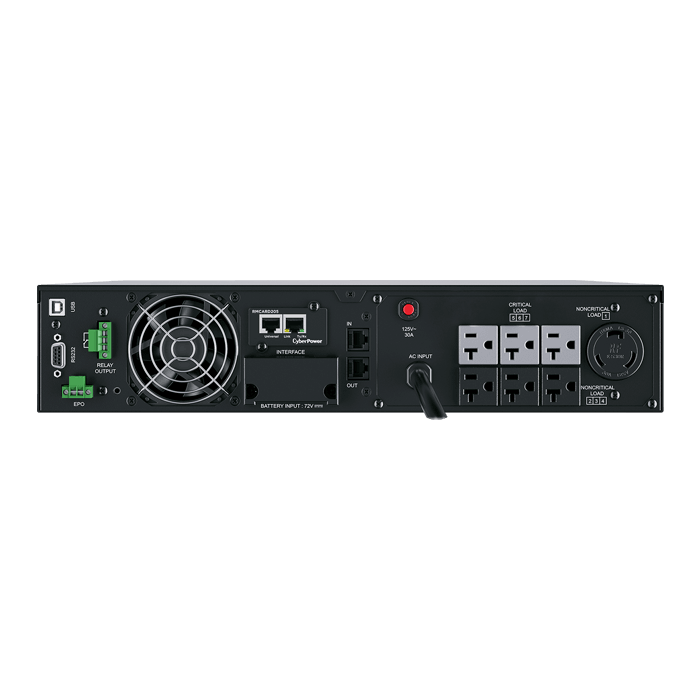

- Outlet types: 6 × NEMA 5-20R, 1 × L5-20R
- Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
- Warranty: 3 year
General | |
Energy Saving | Yes, ECO Mode Efficiency >95% |
UPS Topology | Double Conversion |
Battery | |
Battery Quantity | 6 |
Battery Size | 12V/9Ah |
Battery Type | Sealed Lead-Acid |
Extended Battery Option | BP72V60ART2U |
Hot Swappable | Yes |
Replacement Battery Cartridge | RB1290X6A |
Replacement Battery Cartridge Quantity | 1 |
Runtime at Full Load | 6.5 minutes |
Runtime at Half Load | 20 minutes |
Smart Battery Management (SBM) Mode | Yes |
Typical Recharge Time | 4 h (0% to 90%) |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 43.18 x 8.89 x 59.99 (cm) |
Physical Dimensions – (WxHxD) (in) | 17 x 3.5 x 23.62 (in) |
Physical Dimensions – (WxHxD) (mm) | 432 x 89 x 600 (mm) |
Weight (kg) | 30.93 |
Weight (lb) | 68.2 |
Dimensions – Shipping | |
Shipping – Weight (kg) | 35.24 |
Shipping – Weight (lb) | 77.7 |
Shipping Dimensions – (WxHxD) (cm) | 55.88 x 23.5 x 88.27 (cm) |
Shipping Dimensions – (WxHxD) (in) | 22 x 9.25 x 34.75 (in) |
Shipping Dimensions – (WxHxD) (mm) | 558.8 x 234.95 x 882.65 (mm) |
Input | |
Cold Start | Yes |
Cord Length (ft) | 10 |
Cord Length (m) | 3 |
Frequency Range | 40 – 70 Hz (auto sensing) |
Input Power Factor | 0.99 |
Input Voltage Range |
60 – 69 VAC for 0–60% load 70 – 79 VAC for 0–70% load 80 – 89 VAC for 0–80% load 90 – 95 VAC for 0–90% load 96 – 150 VAC for 0–100% load |
Plug Type | NEMA 5-20P |
Output | |
Bypass | Internal Bypass (Automatic and Manual) |
Crest Factor | 3:1 |
Harmonic Distortion | THD < 3% at Linear Load, < 5% at Non-linear Load |
On Battery Frequency | 50/60 Hz ± 0.25 Hz (auto-sensing or configurable) |
On Battery Voltage | 100, 110, 115, 120, 125 V ± 2% (configurable) |
On Battery Waveform | Sine wave |

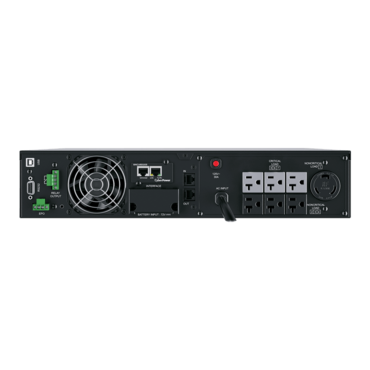

Outlet Type | NEMA 5-20R (6), NEMA L5-20R (1) |
Outlets – Total | 7 |
Overload Protection |
Line Mode: 105% to 125% load for 1 min 126% to 150% load for 10 sec Battery Mode:105% to 130% load for 10 sec 131% to 150% load for 2 sec |
Rated Power Factor | 0.82 |
Transfer Time | 0ms |
VA |
2,200 VA at 120, 125 V 1,980 VA at 115, 110 V 1,760 VA at 100 V |
Watts |
1,800 W at 120, 125 V 1,620 W at 115, 110 V 1,440 W at 100 V |
Surge Protection & Filtering | |
EMI/RFI Filtration | Yes |
Phone RJ11 / Ethernet RJ45 | 1-In / 1-Out (combo) |
Surge Protection | 1335 Joules, per IEC 61000-4-5 Level 3 |
Management & Communications | |
Audible Alarms |
Battery Mode Battery Low Overload UPS Fault |
Cables Included | USB cable, Serial cable, Phone cable |
Dry Contacts | Yes |
EPO Port | Yes |
Expansion Slot | RMCARD205 pre-installed |
HID Compliant USB Port | Yes |
LCD Control Panel | Supports: Multi-Language Interface, 25 Types of Function Setting, 24 Types of Read Out and 5 Event Logs. |
LED Indicators |
Power On (white) Line Mode (green) Battery Mode (yellow) Bypass Mode (yellow) Fault (red) Replace Battery (red) |
Removable LCD Control Panel Option | Yes – Requires a separate DB26 Cable |
Rotatable LCD Control Panel Option | Yes |
Serial Port | Yes |
Software | PowerPanel® Business Edition |
Upgradeable firmware | Yes |
Physical | |
Color | Black |
Enclosure Construction | Steel |

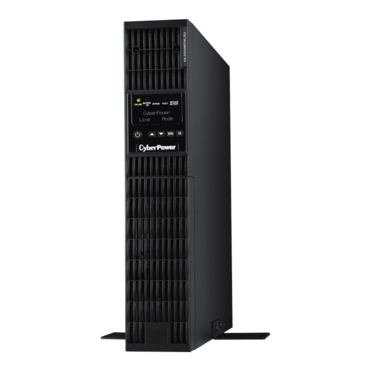

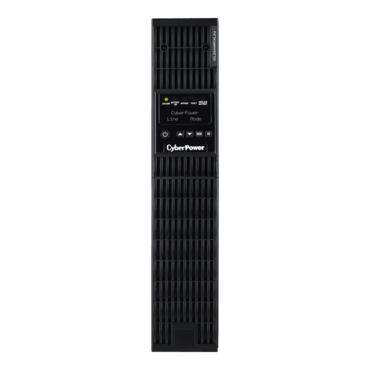

Form Factor | Rack/Tower |
Mounting Hardware | Included |
Rack Size | 2U |
Weight (lbs) | 68.2 |
Environmental | |
Audible noise at 1m from surface of unit | 38 to 55 dBA (0 to 100% load) |
ECO Mode Thermal Dissipation (100% Load) | 249 BTU/h |
Operating Elevation | 0 – 10,000 ft (0 – 3,000 m) |
Operating Relative Humidity | 0 – 90% (non-condensing) |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Storage Elevation | 0 – 50,000 ft (0 – 15,000 m) |
Storage Relative Humidity | 0 – 95% (non-condensing) |
Storage Temperature | -4°F to 113 °F (-20°C to 45 °C) |
UPS Online Thermal Dissipation (100% load) | 541 BTU/hr |
Certifications | |
Environmental | ROHS Compliant |
Safety |
UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A |
Warranty | |
Connected Equipment Guarantee | Lifetime |
Extended 2-Year Warranty | WEXT5YR-U4B |
Product Warranty | 3 Years Limited |
