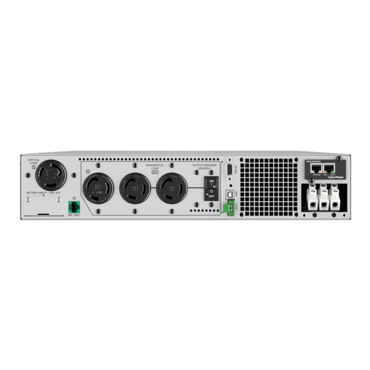

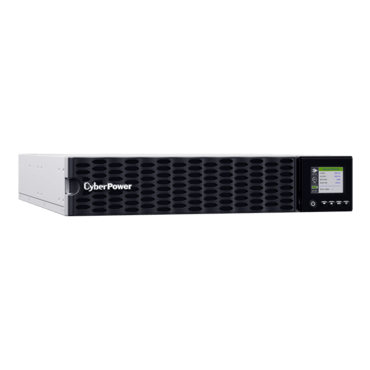

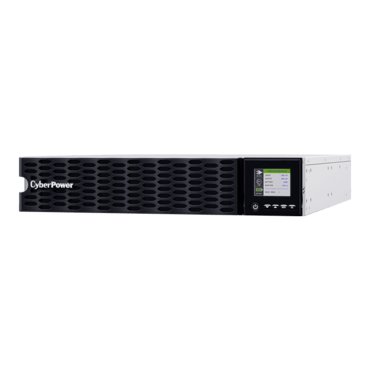

Smart App Online OL5KRTHD, 5000VA/5000W, 240V, 4 Outlets, Black, Tower/2U Rackmount UPS

SKU: 12843219

Manufacturer: CYBERPOWER SYSTEMS

MPN: OL5KRTHD

Availability: Low Stock


Price: $3,679.95
or as low as $119/month
Quantity:
  • Capacity: 5000 VA / 5000 W
  • High Density: 2U Size
  • Power Factor (PF): 1
  • Topology: Double-conversion
  • Waveform: Sine Wave
  • Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
  • Plug type & cord: Hardwire with NEMA L6-30P Power Cord Option
  • Outlet types: 2 × NEMA L6-20R, 2 x NEMA L6-30R
  • Communication ports: USB, Serial, SNMP, EPO
  • Management software: PowerPanel® Business Edition
  • Energy saving: ECO Mode Efficiency >96%
  • Warranty: 3 year
General
Energy Saving Yes – ECO Mode Efficiency >96%
Energy Star Certified Yes
UPS Topology Double Conversion
Battery
Battery Equalization Technology Yes
Battery Quantity 12
Battery Size 12V/6Ah
Battery Type Sealed lead acid
Extended Battery Module Option BP144VL2U01
Hot Swappable Yes
Replacement Battery (1) RB1260X12
Runtime at Full Load (min) 2.3
Runtime at Half Load (min) 6.4
Smart Battery Management (SBM) Mode Yes
Typical Recharge Time 4 Hours (0-90%)
User Replaceable Yes – Qualified Personnel Only
Dimensions
Physical Dimensions – (WxHxD) (cm) 43.18 x 8.64 x 71.88 (cm)
Physical Dimensions – (WxHxD) (in) 17 x 3.4 x 28.3 (in)
Physical Dimensions – (WxHxD) (mm) 432 x 86 x 719 (mm)
Weight (kg) 41.91
Weight (lb) 92.4
Dimensions – Shipping
Shipping – Weight (kg) 51.98
Shipping – Weight (lb) 114.6
Shipping Dimensions – (WxHxD) (cm) 59.94 x 21.59 x 109.98 (cm)
Shipping Dimensions – (WxHxD) (in) 23.6 x 8.5 x 43.3 (in)
Shipping Dimensions – (WxHxD) (mm) 599.44 x 215.9 x 1099.82 (mm)
Input
Backfeed Protection Yes
Cold Start Yes
Cord Length (ft) 10
Cord Length (m) 3
Input Frequency Range 40Hz-70Hz (auto-sensing)
Input Power Factor 0.99
Input Voltage 200-240VAC
Input Voltage Range 120-139VAC for 0-25% Load
140-159VAC for 0-50% Load
160-179VAC for 0-75% Load
180-280VAC for 0-100% Load
Plug Type Hardwire with NEMA L6-30P Power Cord Option
Output
Bypass Internal Bypass (Automatic and Manual)
Crest Factor 3:1
ECO Mode Bypass Voltage Range ±10%, ±15% (Configurable)
Harmonic Distortion THD < 3% at Linear Load, < 5% at Non-linear Load
On Battery Frequency 50/60Hz (Auto-Sensing or Configurable) ±0.25Hz
On Battery Voltage 200, 208, 220, 230, 240Vac (Configurable) ±2%
On Battery Waveform Sine wave
Outlet Type (2) NEMA L6-20R, (2) NEMA L6-30R
Outlets – Total 4
Overload Protection Line Mode:
105~125% Load for 1 min
126~150% Load for 10 sec
Battery Mode:
105~130% Load for 10 sec
131~150% Load for 2 sec
Rated Power Factor 1
Short Circuit Protection UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection
Transfer Time 0ms
VA 5,000 (5 kVA) →w/ Hardwire Terminal
5,000 (5 kVA) – 240VAC →w/ Power cord
5,000 (5 kVA) – 230VAC →w/ Power cord
5,000 (5 kVA) – 220VAC →w/ Power cord
4,850 (4.85 kVA) – 208VAC →w/ Power cord
4,500 (4.5 kVA) – 200VAC →w/ Power cord
Watts 5,000 (5 kW) →w/ Hardwire Terminal
5,000 (5 kW) – 240VAC →w/ Power cord
5,000 (5 kW) – 230VAC →w/ Power cord
5,000 (5 kW) – 220VAC →w/ Power cord
4,850 (4.85 kW) – 208VAC →w/ Power cord
4,500 (4.5 kW) – 200VAC →w/ Power cord
Surge Protection & Filtering
EMI/RFI Filtration Yes
Surge Suppression 2430 Joules, per IEC 61000-4-5 Level 3
Management & Communications
Audible Alarms Battery Mode, Battery Low, Overload, UPS Fault
Auto Rotatable LCD Control Panel Option Yes
Dry Contacts No
Emergency Power Off (EPO) Port Yes
HID Compliant USB Port Yes
LCD Control Panel Multi-Function Color TFT-LCD Readout that Supports:
(15) Types of UPS status, (7) Types of Controls, (20) Types of Set Up,
(12) Event Logs, (11) Types of About, (4) Types of Diagnostics
LED Indicators Power On (White)
Management Cable USB cable, Serial cable
Removable LCD Control Panel Option No
SNMP / HTTP Remote Monitoring Yes – RMCARD205 pre-installed
Serial Port Yes
Software PowerPanel Business Edition
Physical
Enclosure Construction Steel
Form Factor Rack / Tower Convertible (Rotatable LCD)
Mounting Hardware Included Yes
Rack Height 2U
Environmental
Audible noise at 1m from surface of unit 43 dBA to 66 dBA (0% to 100% load)
Operating Elevation 0-10000 feet (0-3000 meters)
Operating Relative Humidity 0% – 90% non condensing
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Elevation 0-50000 feet (0-15000 meters)
Storage Relative Humidity 0% – 95% non condensing
Storage Temperature -4°F to 113 °F (-20°C to 45 °C)
UPS Online Thermal Dissipation (100% load) 1186 BTU/hr
Certifications
Environmental RoHS Compliant
Safety UL 1778 5th Ed.
CSA C22.2 NO.107.3-05
FCC Part 15 Class A
Warranty
Connected Equipment Guarantee Lifetime
Extended 2-Year Warranty Optional WEXT5YR-U20A
Product Warranty 3 Years Limited
