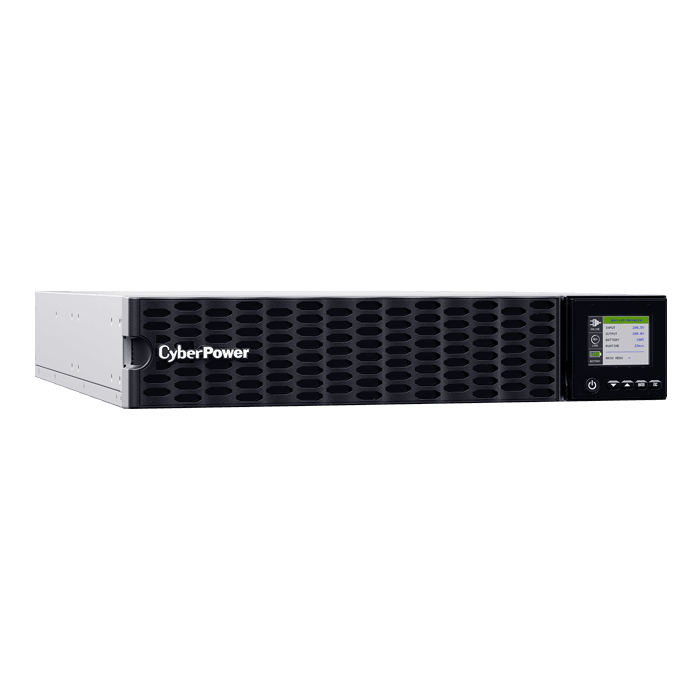

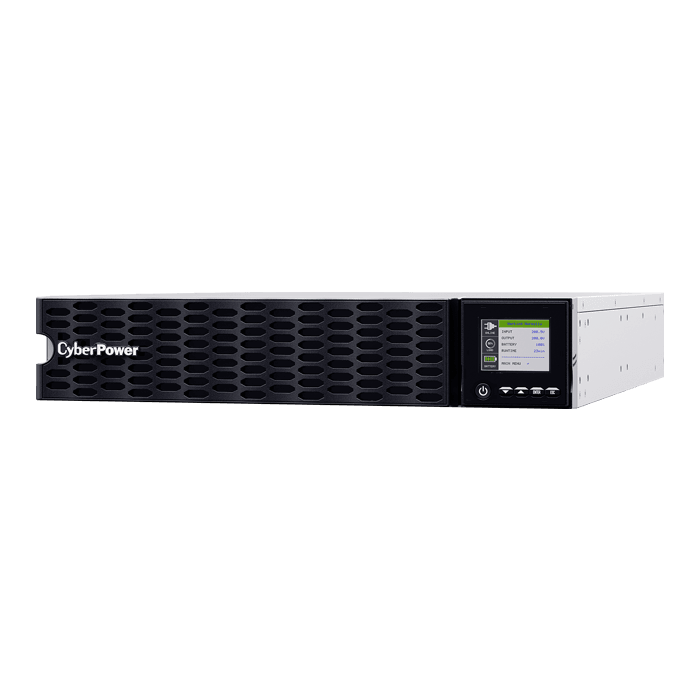

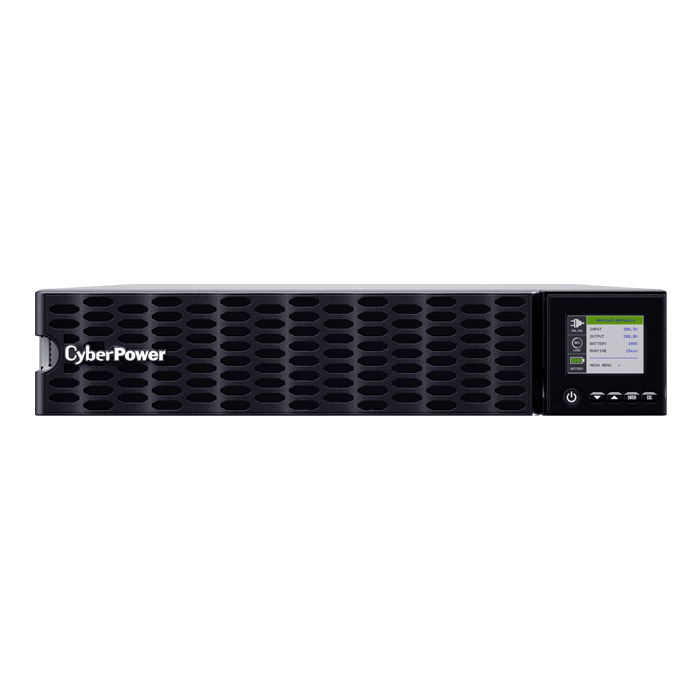

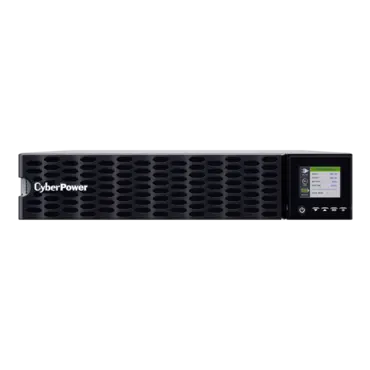

Smart App Online OL5KRTHD, LCD, 5000 VA/5000 W, Sine Wave, 2U Rackmount/Tower UPS
Quantity:
- SKU: 12843219
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OL5KRTHD
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$4,809.95
- Capacity: 5000 VA / 5000 W
- High Density: 2U Size
- Power Factor (PF): 1
- Topology: Double-conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
- Plug type & cord: Hardwire with NEMA L6-30P Power Cord Option
- Outlet types: 2 × NEMA L6-20R, 2 x NEMA L6-30R
- Communication ports: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business Edition
- Energy saving: ECO Mode Efficiency >96%
- Warranty: 3 year
| General | |
| Energy Saving | Yes – ECO Mode Efficiency >96% |
| Energy Star Certified | Yes |
| UPS Topology | Double Conversion |
| Battery | |
| Battery Equalization Technology | Yes |
| Battery Quantity | 12 |
| Battery Size | 12V/6Ah |
| Battery Type | Sealed lead acid |
| Extended Battery Module Option | BP144VL2U01 |
| Hot Swappable | Yes |
| Replacement Battery | (1) RB1260X12 |
| Runtime at Full Load (min) | 2.3 |
| Runtime at Half Load (min) | 6.4 |
| Smart Battery Management (SBM) Mode | Yes |
| Typical Recharge Time | 4 Hours (0-90%) |
| User Replaceable | Yes – Qualified Personnel Only |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.18 x 8.64 x 71.88 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17 x 3.4 x 28.3 (in) |
| Physical Dimensions – (WxHxD) (mm) | 432 x 86 x 719 (mm) |
| Weight (kg) | 41.91 |
| Weight (lb) | 92.4 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 51.98 |
| Shipping – Weight (lb) | 114.6 |
| Shipping Dimensions – (WxHxD) (cm) | 59.94 x 21.59 x 109.98 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 23.6 x 8.5 x 43.3 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 599.44 x 215.9 x 1099.82 (mm) |
| Input | |
| Backfeed Protection | Yes |
| Cold Start | Yes |
| Cord Length (ft) | 10 |
| Cord Length (m) | 3 |
| Input Frequency Range | 40Hz-70Hz (auto-sensing) |
| Input Power Factor | 0.99 |
| Input Voltage | 200-240VAC |
| Input Voltage Range |
120-139VAC for 0-25% Load 140-159VAC for 0-50% Load 160-179VAC for 0-75% Load 180-280VAC for 0-100% Load |
| Plug Type | Hardwire with NEMA L6-30P Power Cord Option |
| Output | |
| Bypass | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| ECO Mode Bypass Voltage Range | ±10%, ±15% (Configurable) |
| Harmonic Distortion | THD < 3% at Linear Load, < 5% at Non-linear Load |
| On Battery Frequency | 50/60Hz (Auto-Sensing or Configurable) ±0.25Hz |
| On Battery Voltage | 200, 208, 220, 230, 240Vac (Configurable) ±2% |
| On Battery Waveform | Sine wave |

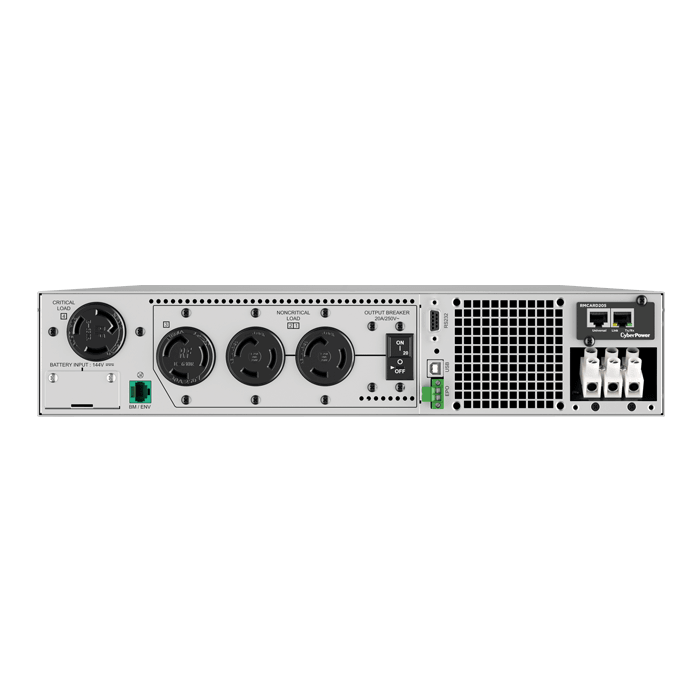

| Outlet Type | (2) NEMA L6-20R, (2) NEMA L6-30R |
| Outlets – Total | 4 |
| Overload Protection |
Line Mode: 105~125% Load for 1 min 126~150% Load for 10 sec Battery Mode: 105~130% Load for 10 sec 131~150% Load for 2 sec |
| Rated Power Factor | 1 |
| Short Circuit Protection | UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection |
| Transfer Time | 0ms |
| VA |
5,000 (5 kVA) →w/ Hardwire Terminal 5,000 (5 kVA) – 240VAC →w/ Power cord 5,000 (5 kVA) – 230VAC →w/ Power cord 5,000 (5 kVA) – 220VAC →w/ Power cord 4,850 (4.85 kVA) – 208VAC →w/ Power cord 4,500 (4.5 kVA) – 200VAC →w/ Power cord |
| Watts |
5,000 (5 kW) →w/ Hardwire Terminal 5,000 (5 kW) – 240VAC →w/ Power cord 5,000 (5 kW) – 230VAC →w/ Power cord 5,000 (5 kW) – 220VAC →w/ Power cord 4,850 (4.85 kW) – 208VAC →w/ Power cord 4,500 (4.5 kW) – 200VAC →w/ Power cord |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression | 2430 Joules, per IEC 61000-4-5 Level 3 |
| Management & Communications | |
| Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault |
| Auto Rotatable LCD Control Panel Option | Yes |
| Dry Contacts | No |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LCD Control Panel |
Multi-Function Color TFT-LCD Readout that Supports: (15) Types of UPS status, (7) Types of Controls, (20) Types of Set Up, (12) Event Logs, (11) Types of About, (4) Types of Diagnostics |
| LED Indicators | Power On (White) |
| Management Cable | USB cable, Serial cable |
| Removable LCD Control Panel Option | No |
| SNMP / HTTP Remote Monitoring | Yes – RMCARD205 pre-installed |
| Serial Port | Yes |
| Software | PowerPanel Business Edition |
| Physical | |
| Enclosure Construction | Steel |
| Form Factor | Rack / Tower Convertible (Rotatable LCD) |
| Mounting Hardware Included | Yes |
| Rack Height | 2U |
| Environmental | |
| Audible noise at 1m from surface of unit | 43 dBA to 66 dBA (0% to 100% load) |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Operating Relative Humidity | 0% – 90% non condensing |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Storage Relative Humidity | 0% – 95% non condensing |
| Storage Temperature | -4°F to 113 °F (-20°C to 45 °C) |
| UPS Online Thermal Dissipation (100% load) | 1186 BTU/hr |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Extended 2-Year Warranty | Optional WEXT5YR-U20A |
| Product Warranty | 3 Years Limited |
