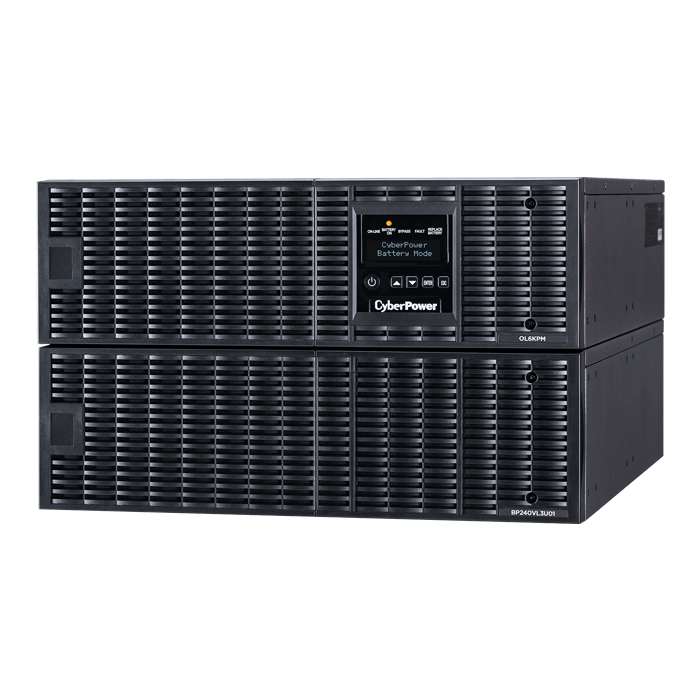

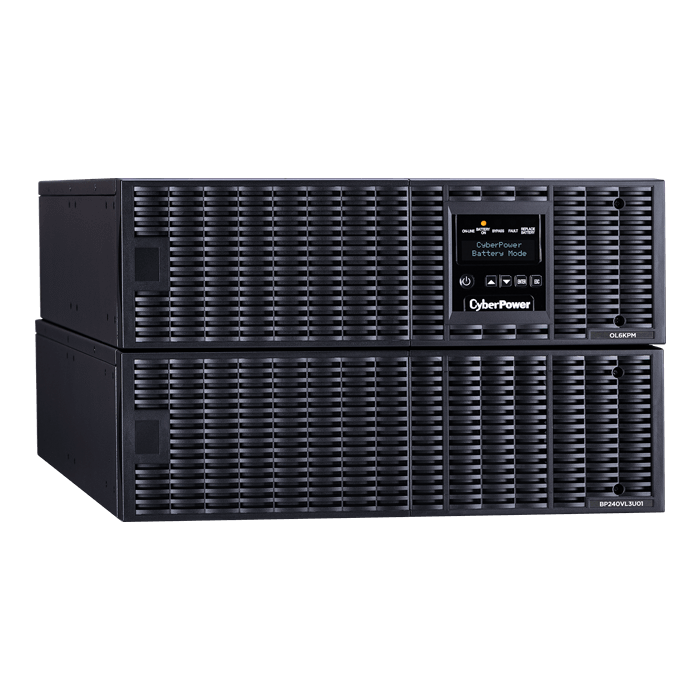

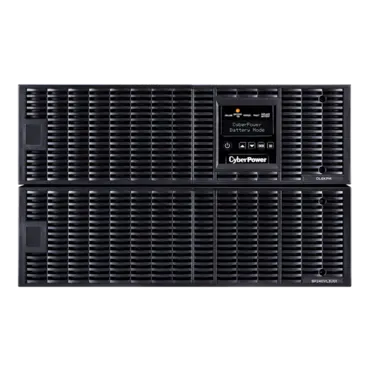

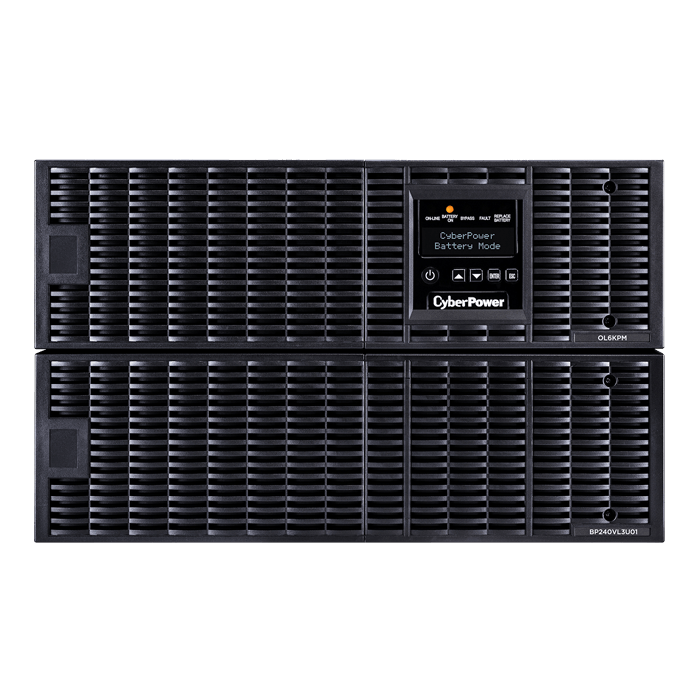

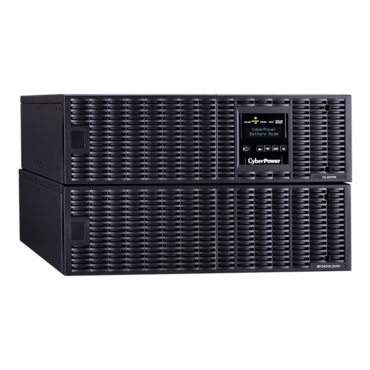

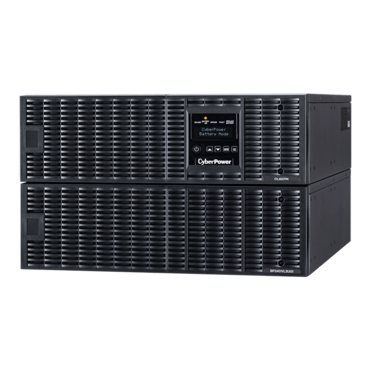

Smart App Online OL6KRT, LCD, 6000 VA/5400 W, Sine Wave, 6U Rackmount/Tower UPS

Quantity:
  • SKU: 11781663
  • Manufacturer: CYBERPOWER SYSTEMS
  • MPN: OL6KRT
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$4,559.95
Quantity:
  • Capacity: 6,000 VA / 5,400 W
  • Output Power Factor (PF): 0.9
  • Topology: Double-Conversion
  • Waveform: Sine Wave
  • Output: 200, 208, 220, 230, 240 V ±2% User Configurable
  • Plug type & cord: NEMA L6-30P, 10 ft cord
  • Outlet types: 2 x NEMA L6-20R, 2 x NEMA L6-30R
  • Communication ports: USB, Serial, Ethernet, Relay, EPO
  • Management software: PowerPanel® Business Edition
  • Remote management: Yes, RMCARD205 pre-installed
  • Energy saving: ECO Mode Efficiency up to 96%
  • Warranty: Three-Year Limited
General
UPS Topology Double Conversion
Energy Saving Yes – ECO Mode Efficiency up to 96%
Input
Nominal Voltage 200 V to 240 V
Voltage Range 120 V to 139 V, 0% to 25% load
140 V to 159 V, 0% to 50% load
160 V to 179 V, 0% to 75% load
180 V to 280 V, 0% to 100% load
40 Hz to 70 Hz (auto-sensing)
Power Factor 0.99
Cold Start Yes
Backfeed Protection Yes
Plug Type NEMA L6-30P
Cord Length (ft) 10
Cord Length (m) 3
Output
VA 6,000 (6 kVA)
Watts 5,400 (5.4 kW)
Rated Power Factor 0.9
Waveform (Battery Mode) Sine wave
Nominal Voltage (Battery Mode) 200, 208, 220, 230, 240 V ±2% (configurable)
Frequency 50/60 Hz ±0.25 Hz (auto-sensing/configurable)
ECO Mode Bypass Voltage Range ±10%, ±15% (configurable)
Harmonic Distortion <3% at linear load,<5% at non-linear load
Crest Factor 3:1

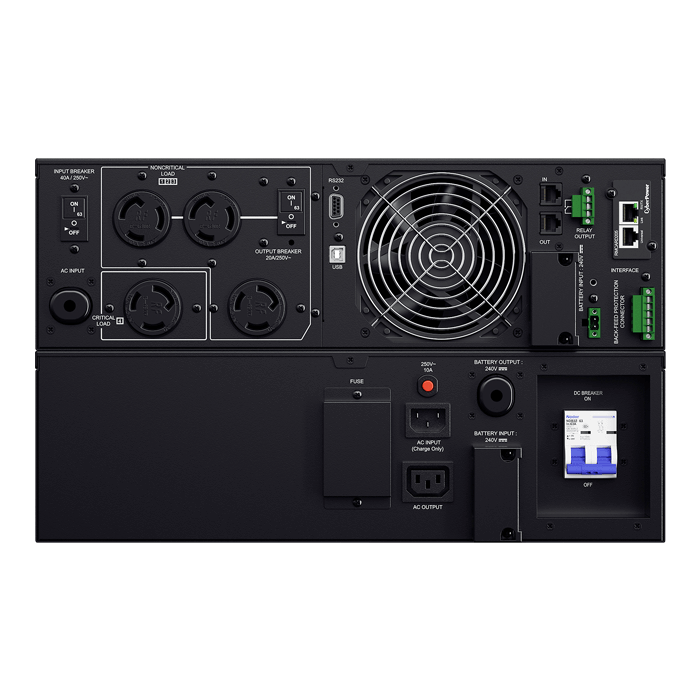

Outlets – Total 4
Outlet Type (2) NEMA L6-20R, (2) NEMA L6-30R
Overload Protection Line Mode:
105% to 125% load for 1 min
126% to 150% load for 10 s
Battery Mode:
105% to 130% load for 10 s
131% to 150% load for 2 s
UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection
Bypass Internal Bypass (Automatic and Manual)
Transfer Time 0 ms
Battery
Runtime at Half Load 15 min
Runtime at Full Load 5.4 min
Battery Type Sealed lead acid
Battery Size 12 V/7 Ah
Battery Quantity 20
Replaceable Yes
Replacement Battery (2) RB1270X10
Hot Swappable Yes
Typical Recharge Time 4 h (0% to 90%)
Smart Battery Management (SMB) Mode Yes
Extended Battery Module (EBM) Optional BP240V30ART3U or BP240VL3U01
Surge Protection & Filtering
Surge Protection 2430 Joules, per IEC 61000-4-5 Level 3
Phone RJ-11 / Ethernet Surge Protection RJ-45 1-In / 1-Out (Combo)
EMI/RFI Filtration Yes
Management & Communications
LCD Control Panel Access 50 information status and configuration settings via the Information and Configuration Menus, in addition to an Event Log Menu.
Rotatable LCD Control Panel Option Yes
Removable LCD Control Panel Option Yes – Requires DB26 cable (not included)
HID Compliant USB Port Yes
Serial Port Yes
Emergency Power Off (EPO) Port Yes
Dry Contact Port Yes
Cables Included USB cable, serial cable, phone cable
LED Indicators Power On (White)
Line Mode (Green)
Battery Mode (Yellow)
Bypass Mode (Yellow)
Fault (Red)
Replace Battery (Red)
Audible Alarms Battery Mode, Battery Low, Overload, UPS Fault
Software PowerPanel® Business Edition
Upgradeable Firmware Yes
Expansion Slot Yes – RMCARD205 pre-installed
Physical
Form Factor Rack / Tower convertible (rotatable LCD)
Enclosure Contruction Steel
Rack Mounting Hardware Included
Physical Dimensions
Dimensions (WxHxD, in) 17 x 10.5 x 26
Dimensions (WxHxD, mm) 433 x 266 x 660
Weight (lb) 222.2
Weight (kg) 100
Rack Units 6U
Max. Mounting Rail Depth (in) 36.02
Max. Mounting Rail Depth (mm) 915
Min. Mounting Rail Depth (in) 20.47
Min. Mounting Rail Depth (mm) 520
Physical Dimensions – Power Module
Dimensions (WxHxD, in) 17 x 5.25 x 26
Dimensions (WxHxD, mm) 433 x 132 x 660
Weight (lb) 55
Weight (kg) 24.95
Rack Units 3U
Physical Dimensions – Battery Module
Dimensions (WxHxD, in) 17 x 5.25 x 26
Dimensions (WxHxD, mm) 433 x 132 x 660
Weight (lb) 167.2
Weight (kg) 76
Rack Units 3U
Shipping Dimensions
Dimensions (WxHxD, in) 23.62 x 25.12 x 35.43
Dimensions (WxHxD, mm) 600 x 638 x 900
Weight (lb) 275
Weight (kg) 124.75
Environmental
Operating Temperature 32 °F to 104 °F (0 °C to 40 °C)
Operating Relative Humidity 0% to 90% non-condensing
Operating Elevation 0 ft to 10,000 ft (0 to 3,000 m)
Storage Temperature -4 °F to 113 °F (-20 °C to 45 °C)
Storage Relative Humidity 0% to 95% non-condensing
Storage Elevation 0 ft to 50,000 ft (0 m to 15,000 m)
UPS Online Thermal Dissipation (100% load) 1912 BTU/h
ECO Mode Thermal Dissipation (100% load) 728 BTU/h
Audible noise at 1 m from surface of unit 38 dBA to 65 dBA (0% to 100% load)
Certifications
Safety UL 1778 5th Ed.
CSA C22.2 NO.107.3-05
FCC Part 15 Class A
Environmental ROHS Compliant
Warranty
Product Warranty 3 Years Limited
Extended 2-Year Warranty Optional WEXT5YR-U20A
Connected Equipment Guarantee Lifetime
