- Capacity: 6000 VA / 6000 W
- High Density: 2U Size
- Power Factor (PF): 1
- Topology: Double-conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
- Plug type & cord: Hardwire with NEMA L6-30P Power Cord Option

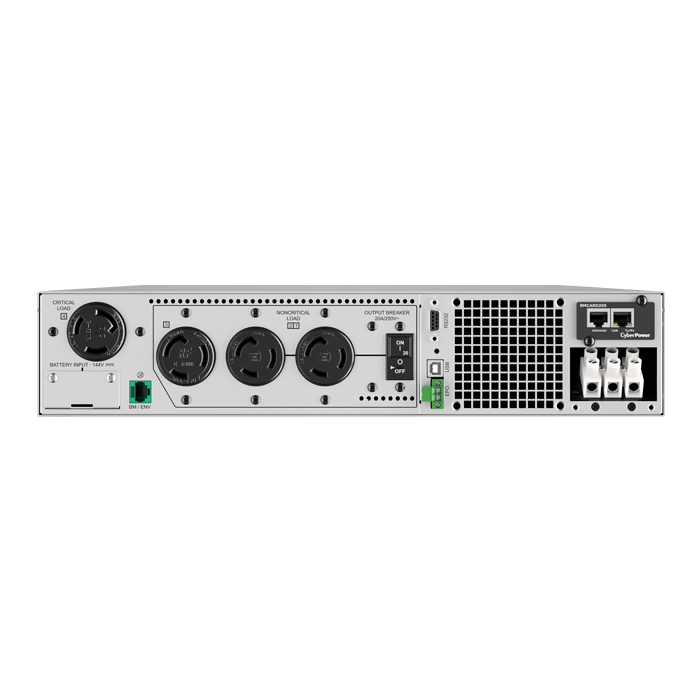

- Outlet types: 2 × NEMA L6-20R, 2 x NEMA L6-30R
- Communication ports: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business Edition
- Energy saving: ECO Mode Efficiency >96%
- Warranty: 3 year
General | |
Energy Saving | Yes – ECO Mode Efficiency >96% |
Energy Star Certified | Yes |
UPS Topology | Double Conversion |
Battery | |
Battery Equalization Technology | Yes |
Battery Quantity | 12 |
Battery Size | 12V/6Ah |
Battery Type | Sealed lead acid |
Extended Battery Module Option | BP144VL2U01 |
Hot Swappable | Yes |
Replacement Battery | (1) RB1260X12 |
Runtime at Full Load (min) | 1.4 |
Runtime at Half Load (min) | 4.9 |
Smart Battery Management (SBM) Mode | Yes |
Typical Recharge Time | 4 Hours (0-90%) |
User Replaceable | Yes – Qualified Personnel Only |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 43.18 x 8.64 x 71.88 (cm) |
Physical Dimensions – (WxHxD) (in) | 17 x 3.4 x 28.3 (in) |
Physical Dimensions – (WxHxD) (mm) | 432 x 86 x 719 (mm) |
Weight (kg) | 41.91 |
Weight (lb) | 92.4 |
Dimensions – Shipping | |
Shipping – Weight (kg) | 51.98 |
Shipping – Weight (lb) | 114.6 |
Shipping Dimensions – (WxHxD) (cm) | 59.94 x 21.59 x 109.98 (cm) |
Shipping Dimensions – (WxHxD) (in) | 23.6 x 8.5 x 43.3 (in) |
Shipping Dimensions – (WxHxD) (mm) | 599.44 x 215.9 x 1099.82 (mm) |
Input | |
Backfeed Protection | Yes |
Cold Start | Yes |
Cord Length (ft) | 10 |
Cord Length (m) | 3 |
Input Frequency Range | 40Hz-70Hz (auto-sensing) |
Input Power Factor | 0.99 |
Input Voltage | 200-240VAC |
Input Voltage Range |
120-139VAC for 0-25% Load 140-159VAC for 0-50% Load 160-179VAC for 0-75% Load 180-280VAC for 0-100% Load |
Plug Type | Hardwire with NEMA L6-30P Power Cord Option |
Output | |
Bypass | Internal Bypass (Automatic and Manual) |
Crest Factor | 3:1 |
ECO Mode Bypass Voltage Range | ±10%, ±15% (Configurable) |
Harmonic Distortion | THD < 3% at Linear Load, < 5% at Non-linear Load |
On Battery Frequency | 50/60Hz (Auto-Sensing or Configurable) ±0.25Hz |
On Battery Voltage | 200, 208, 220, 230, 240Vac (Configurable) ±2% |
On Battery Waveform | Sine wave |
Outlet Type | (2) NEMA L6-20R, (2) NEMA L6-30R |
Outlets – Total | 4 |
Overload Protection |
Line Mode: 105~125% Load for 1 min 126~150% Load for 10 sec Battery Mode: 105~130% Load for 10 sec 131~150% Load for 2 sec |
Rated Power Factor | 1 |
Short Circuit Protection | UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection |
Transfer Time | 0ms |
VA |
6,000 (6 kVA) →w/ Hardwire Terminal 5,400 (5.4 kVA) – 240VAC →w/ Power cord 5,400 (5.4 kVA) – 230VAC →w/ Power cord 5,100 (5.1 kVA) – 220VAC →w/ Power cord 4,850 (4.85 kVA) – 208VAC →w/ Power cord 4,500 (4.5 kVA) – 200VAC →w/ Power cord |
Watts |
6,000 (6 kW) →w/ Hardwire Terminal 5,400 (5.4 kW) – 240VAC →w/ Power cord 5,400 (5.4 kW) – 230VAC →w/ Power cord 5,100 (5.1 kW) – 220VAC →w/ Power cord 4,850 (4.85 kW) – 208VAC →w/ Power cord 4,500 (4.5 kW) – 200VAC →w/ Power cord |
Surge Protection & Filtering | |
EMI/RFI Filtration | Yes |
Surge Suppression | 2430 Joules, per IEC 61000-4-5 Level 3 |
Management & Communications | |
Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault |
Auto Rotatable LCD Control Panel Option | Yes |
Dry Contacts | No |
Emergency Power Off (EPO) Port | Yes |
HID Compliant USB Port | Yes |
LCD Control Panel |
Multi-Function Color TFT-LCD Readout that Supports: (15) Types of UPS status, (7) Types of Controls, (20) Types of Set Up, (12) Event Logs, (11) Types of About, (4) Types of Diagnostics |
LED Indicators | Power On (White) |
Management Cable | USB cable, Serial cable |
Removable LCD Control Panel Option | No |
SNMP / HTTP Remote Monitoring | Yes – RMCARD205 pre-installed |
Serial Port | Yes |
Software | PowerPanel Business Edition |
Physical | |
Enclosure Construction | Steel |
Form Factor | Rack / Tower Convertible (Rotatable LCD) |
Mounting Hardware Included | Yes |
Rack Height | 2U |
Environmental | |
Audible noise at 1m from surface of unit | 43 dBA to 66 dBA (0% to 100% load) |
Operating Elevation | 0-10000 feet (0-3000 meters) |
Operating Relative Humidity | 0% – 90% non condensing |
Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Storage Elevation | 0-50000 feet (0-15000 meters) |
Storage Relative Humidity | 0% – 95% non condensing |
Storage Temperature | -4°F to 113 °F (-20°C to 45 °C) |
UPS Online Thermal Dissipation (100% load) | 1613 BTU/hr |
Certifications | |
Environmental | RoHS Compliant |
Safety |
UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A |
Warranty | |
Connected Equipment Guarantee | Lifetime |
Extended 2-Year Warranty | Optional WEXT5YR-U20B |
Product Warranty | 3 Years Limited |
