- Capacity: 6000 VA / 6000 W
- Power Factor (PF): 1.0
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
- Plug type & cord: Hardwire
- Outlet types: 1 x Hardwire Terminal Block
- Maintenance Bypass Switch: Yes
- Communication ports: USB, Serial, SNMP, Relay, EPO
- Data line protection: Telephone, Network
- Management software: PowerPanel® Business Edition
- Energy saving: ECO Mode Efficiency >96%
- Warranty: 3 year
General | |
UPS Topology | Double Conversion |
Energy Saving | Yes – ECO Mode Efficiency up to 96% |
Input | |
Nominal Voltage | 200 V to 240 V |
Voltage Range |
120 V to 139 V, 0% to 25% load 140 V to 159 V, 0% to 50% load 160 V to 179 V, 0% to 75% load 180 V to 280 V, 0% to 100% load |
Frequency Range | 40 Hz to 70 Hz (auto-sensing) |
Input Power Factor | 0.99 |
Cold Start | Yes |
Backfeed Protection | Yes |
Plug Type | Hardwire |
Output | |
VA | 6,000 (6 kVA) |
Watts | 6,000 (6 kW) |
Output Power Factor | 1 |
Rated Power Factor | 1 |
Waveform (Battery Mode) | Sine wave |
Nominal Voltage (Battery Mode) | 200, 208, 220, 230, 240 V ±2% (configurable) |
Output Frequency | 50/60 Hz ±0.25 Hz (auto-sensing/configurable) |
ECO Mode Bypass Voltage Range | ±10%, ±15% (configurable) |
Harmonic Distortion | <3% at linear load,<5% at non-linear load |
Crest Factor | 3:1 |
Outlets – Total | 1 |
Outlets – Type | (1) Hardwire Terminal Block |
Overload Protection |
Line Mode: 105% to 125% load for 1 min 126% to 150% load for 10 sBattery Mode: 105% to 130% load for 10 s 131% to 150% load for 2 s |
Short Circuit Protection | UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection |

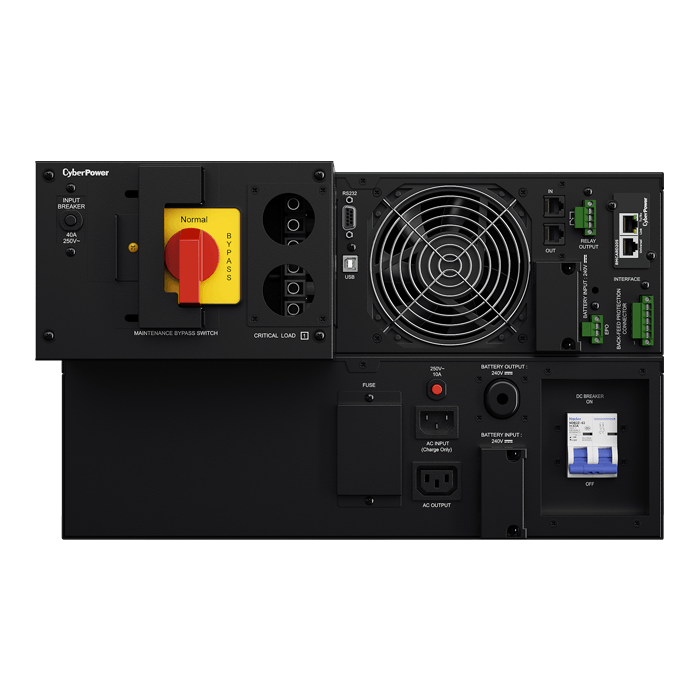

Bypass | Internal Bypass (Automatic and Manual), Maintenance Bypass |
Maintenance Bypass | Yes |
Transfer Time | 0 ms |
Battery | |
Runtime at Half Load | 13 min |
Runtime at Full Load | 4.4 min |
Battery Type | Sealed lead acid |
Battery Size | 12 V/7 Ah |
Battery Quantity | 20 |
User Replaceable | Yes |
Replaceable Battery | Yes |
Replacement Battery | (2) RB1270X10 |
Replacement Battery Cartridge Quantity | 2 |
Hot Swappable | Yes |
Typical Recharge Time | 4 h (0% to 90%) |
Smart Battery Management (SMB) Mode | Yes |
Extended Battery Module | Optional BP240VL3U01 |
Surge Protection & Filtering | |
Surge Protection | 2430 Joules, IEC 61000-4-5 Level 3 |
Phone / Network Surge Protection RJ11/RJ45 | 1-In / 1-Out (Combo) |
EMI/RFI Filtration | Yes |
Management & Communication | |
LCD Control Panel |
Access 51 information status and configuration settings via the Information and Configuration Menus, in addition to an Event Log Menu. |
Rotatable LCD Control Panel Option | Yes |
Removable LCD Control Panel Option | Yes – Requires DB26 cable (not included) |
HID Compliant USB Port | Yes |
Serial Port | Yes |
Emergency Power Off (EPO) Port | Yes |
Dry Contact Port | Yes |
Cables Included |
USB Cable Serial Cable Phone Cable |
LED Indicators |
Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red) |
Audible Alarms |
Battery Mode Battery Low Overload UPS Fault |
Software | PowerPanel® Business Edition |
Expansion Slot | Yes – RMCARD205 pre-installed |
Physical | |

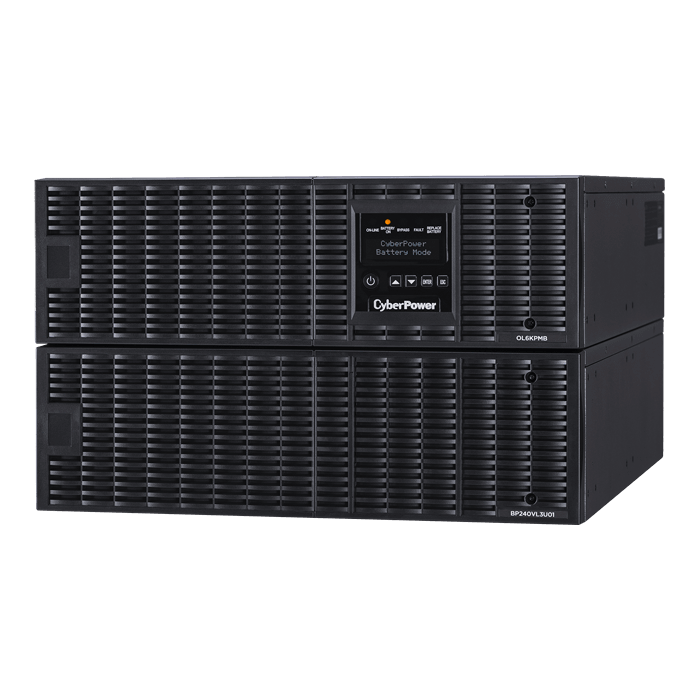

Form Factor | Rack / Tower convertible (rotatable LCD) |
Enclosure Construction | Steel |
Color | Black |
Mounting Hardware Included | Yes |
Rack Mounting Hardware | Included |
Rack Units | 6U |
Weight (lb) | 230.56 |
Weight (kg) | 104.58 |
Dimensions – (WxHxD) (in) | 17.05 x 10.4 x 32.3 (in) |
Dimensions – (WxHxD) (mm) | 433 x 264 x 820 (mm) |
Rail Depth – Max. Mounting (in) | 36.02 |
Rail Depth – Max. Mounting (mm) | 915 |
Rail Depth – Min. Mounting (in) | 20.47 |
Rail Depth – Min. Mounting (mm) | 520 |
Physical – Power Module | |
Dimensions (WxHxD, in) | 17.05 x 5.2 x 26 |
Dimensions (WxHxD, mm) | 433 x 132 x 660 |
Rack Units | 3U |
Weight (lb) | 52.8 |
Weight (kg) | 24 |
Physical – Battery Module | |
Dimensions (WxHxD, in) | 17.05 x 5.2 x 26 |
Dimensions (WxHxD, mm) | 433 x 132 x 660 |
Rack Units | 3U |
Weight (lb) | 167.2 |
Weight (kg) | 76 |
Physical – Maintenance Bypass Module | |
Dimensions (WxHxD, in) | 7.8 x 10.4 x 6.3 |
Dimensions (WxHxD, mm) | 198 x 264 x 160 |
Rack Units | 3U |
Weight (lb) | 4.9 |
Weight (kg) | 2.2 |
Shipping Dimensions | |
Dimensions (WxHxD, in) | 25.6 x 44.1 x 24.4 (in) |
Dimensions (WxHxD, mm) | 650.24 x 1120.14 x 619.76 (mm) |
Weight (lb) | 284.9 |
Weight (kg) | 129.23 |
Environmental | |
Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
Operating Relative Humidity | 0% to 90% non-condensing |
Operating Elevation | 0 ft to 10,000 ft (0 to 3,000 m) |
Storage Temperature | -4 °F to 113 °F (-20 °C to 45 °C) |
Storage Relative Humidity | 0% to 95% non-condensing |
Storage Elevation | 0 ft to 50,000 ft (0 m to 15,000 m) |
ECO Mode Thermal Dissipation (100% Load) | 809 BTU/h |
UPS Online Thermal Dissipation (100% load) | 2125 BTU/h |
Audible noise at 1m from surface of unit | 38 dBA to 65 dBA (0% to 100% load) |
Certifications | |
Safety |
CSA C22.2 NO.107.3-05 FCC Part 15 Class A UL 1778 5th Ed. |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Extended 2-Year Warranty | Optional WEXT5YR-U20A |
Connected Equipment Guarantee | Lifetime |
