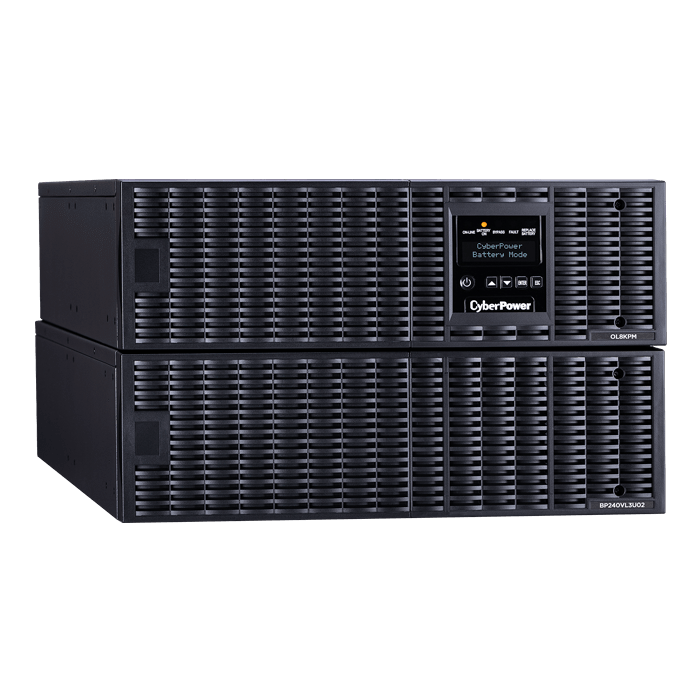

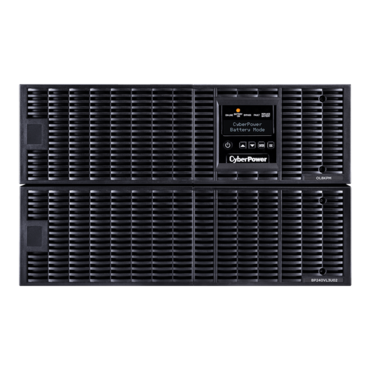

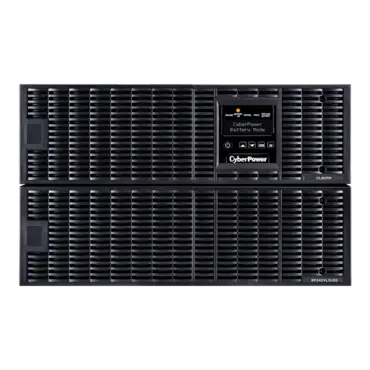

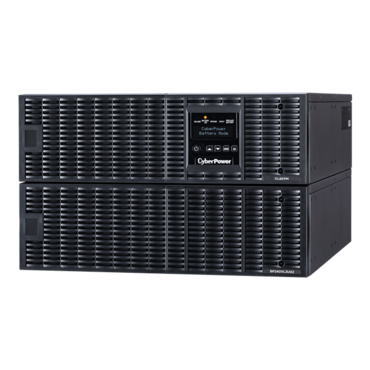

Smart App Online OL8KRT, LCD, 8000 VA/8000 W, Sine Wave, 6U Rackmount/Tower UPS
- SKU: 12235218
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OL8KRT
- Availability: TEMPORARILY OUT OF STOCK
Price
$6,864.95
- Capacity: 8,000 VA / 8,000 W
- Output Power Factor (PF): 1
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 V ±2% User Configurable
- Plug type: Hardwire

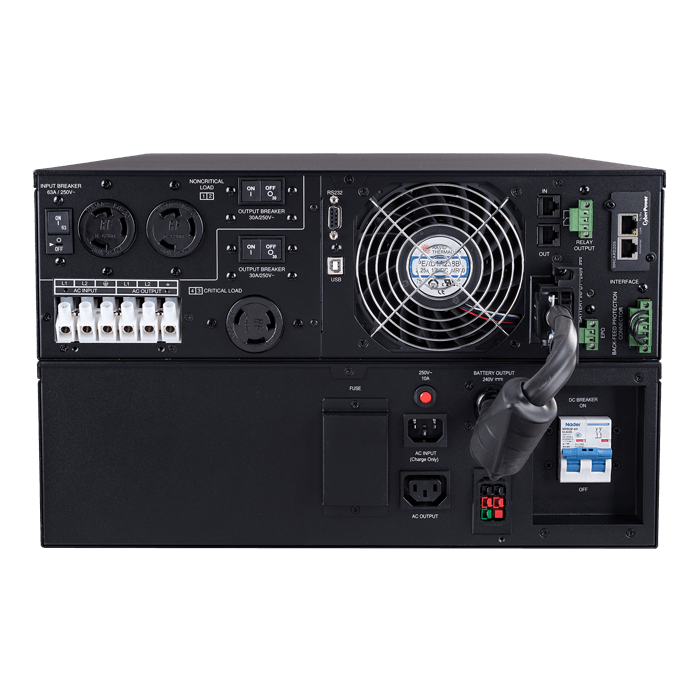

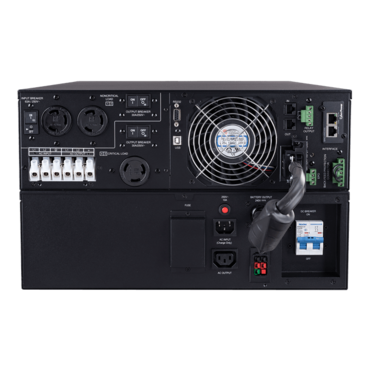

- Outlet types: 3 x NEMA L6-30R, 1 x Hardwire
- Communication ports: USB, Serial, Ethernet, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes, RMCARD205 pre-installed
- Energy saving: ECO Mode Efficiency up to 96%
- Warranty: Three-Year Limited
| General | |
| UPS Topology | Double Conversion |
| Energy Saving | Yes – ECO Mode Efficiency up to 96% |
| Input | |
| Nominal Voltage | 200 V to 240 V |
| Voltage Range |
120 V to 139 V, 0% to 25% load 140 V to 159 V, 0% to 50% load 160 V to 179 V, 0% to 75% load 180 V to 280 V, 0% to 100% load |
| Frequency Range | 40 Hz to 70 Hz (auto-sensing) |
| Power Factor | 0.99 |
| Cold Start | Yes |
| Backfeed Protection | Yes |
| Plug Type | Hardwire |
| Cord Length (ft) | NA |
| Cord Length (m) | NA |
| Output | |
| VA | 8,000 (8 kVA) |
| Watts | 8,000 (8 kW) |
| Power Factor | 1 |
| Waveform (Battery Mode) | Sine wave |
| Nominal Voltage (Battery Mode) | 200, 208, 220, 230, 240 V ±2% (configurable) |
| Frequency | 50/60 Hz ±0.25 Hz (auto-sensing/configurable) |
| ECO Mode Bypass Voltage Range | ±10%, ±15% (configurable) |
| Harmonic Distortion | <3% at linear load,<5% at non-linear load |
| Crest Factor | 3:1 |
| Outlets – Total | 4 |
| Outlet Type | (3) NEMA L6-30R, (1) Hardwire Terminal Block |
| Overload Protection |
Line Mode: 105% to 125% load for 1 min 126% to 150% load for 10 sBattery Mode: 105% to 130% load for 10 s 131% to 150% load for 2 s |
| Short Circuit Protection | UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection |
| Bypass | Internal Bypass (Automatic and Manual) |
| Transfer Time | 0 ms |
| Battery | |
| Runtime at Half Load | 12 min |
| Runtime at Full Load | 4.7 min |
| Battery Type | Sealed lead acid |
| Battery Size | 12 V/9 Ah |
| Battery Quantity | 20 |
| Replaceable | Yes |
| Replacement Battery | (2) RB1290X10 |
| Hot Swappable | Yes |
| Typical Recharge Time | 5 h (0% to 90%) |
| Smart Battery Management (SMB) Mode | Yes |
| Extended Battery Module (EBM) | Optional BP240V30ART3U or BP240VL3U01 |
| Surge Protection & Filtering | |
| Surge Protection | 2430 Joules, per IEC 61000-4-5 Level 3 |
| Phone RJ-11 / Ethernet Surge Protection RJ-45 | 1-In / 1-Out (Combo) |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| LCD Control Panel | Access 50 information status and configuration settings via the Information and Configuration Menus, in addition to an Event Log Menu. |
| Rotatable LCD Control Panel Option | Yes |
| Removable LCD Control Panel Option | Yes – Requires DB26 cable (not included) |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| Emergency Power Off (EPO) Port | Yes |
| Dry Contact Port | Yes |
| Cables Included | USB cable, serial cable, phone cable |
| LED Indicators |
Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red) |
| Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault |
| Software | PowerPanel® Business Edition |
| Upgradeable Firmware | Yes |
| Expansion Slot | Yes – RMCARD205 pre-installed |
| Physical | |
| Form Factor | Rack / Tower |
| Enclosure Contruction | Steel |
| Rack Mounting Hardware | Included |
| Physical Dimensions | |
| Dimensions (WxHxD, in) | 17 x 10.5 x 26 |
| Dimensions (WxHxD, mm) | 433 x 266 x 660 |
| Weight (lb) | 226.6 |
| Weight (kg) | 103 |
| Rack Units | 6U |
| Max. Mounting Rail Depth (in) | 36.02 |
| Min. Mounting Rail Depth (in) | 20.47 |
| Environmental | |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Operating Relative Humidity | 0% to 90% non-condensing |
| Operating Elevation | 0 ft to 10,000 ft (0 to 3,000 m) |
| Storage Temperature | -4 °F to 113 °F (-20 °C to 45 °C) |
| Storage Relative Humidity | 0% to 95% non-condensing |
| Storage Elevation | 0 ft to 50,000 ft (0 m to 15,000 m) |
| UPS Online Thermal Dissipation (100% load) | 2536 BTU/h |
| ECO Mode Thermal Dissipation (100% load) | 932 BUT/h |
| Audible noise at 1 m from surface of unit | 38 dBA to 65 dBA (0% to 100% load) |
| Certifications | |
| Safety |
UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A |
| Environmental | ROHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Extended 2-Year Warranty | Optional WEXT5YR-U20B |
| Connected Equipment Guarantee | Lifetime |
