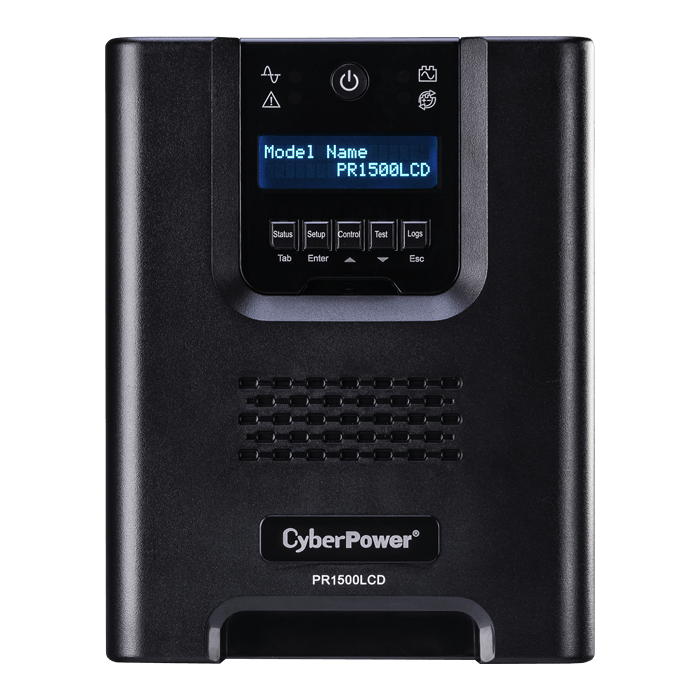

Smart App Sinewave PR1500LCD, LCD, 1500 VA/1500 W, Sine Wave, Tower UPS

Quantity:
  • SKU: 6891947
  • Manufacturer: CYBERPOWER SYSTEMS
  • MPN: PR1500LCD
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$545.95
Quantity:
  • Capacity: 1500 VA / 1500 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlet types: 8 × NEMA 5-15R
  • Communication: USB, Serial, SNMP, Relay, EPO
  • Management software: PowerPanel® Business Edition
  • Remote management: Yes, with optional RMCARD205
  • Warranty: 3 year
General
Active PFC Compatible Yes
Energy Saving GreenPower UPS™ Bypass
UPS Topology Line Interactive
Battery
Battery Quantity 2
Battery Size 12V/17Ah
Battery Type Sealed Lead-Acid
Hot Swappable Yes
Replacement Battery Cartridge RB12170X2A
Replacement Battery Cartridge Quantity 1
Runtime at Full Load 4.7 minutes
Runtime at Half Load 15.1 minutes
Typical Recharge Time 3 hours – Quick Charge Mode, 8 hours – Eco Mode
User Replaceable Yes
Dimensions
Physical Dimensions – (WxHxD) (cm) 17.02 x 22.1 x 43.18 (cm)
Physical Dimensions – (WxHxD) (in) 6.7 x 8.7 x 17 (in)
Physical Dimensions – (WxHxD) (mm) 170 x 221 x 432 (mm)
Weight (kg) 24.49
Weight (lb) 54
Dimensions – Shipping
Shipping – Weight (kg) 27.49
Shipping – Weight (lb) 60.6
Shipping Dimensions – (WxHxD) (cm) 31.75 x 35.56 x 57.79 (cm)
Shipping Dimensions – (WxHxD) (in) 12.5 x 14 x 22.75 (in)
Shipping Dimensions – (WxHxD) (mm) 317.5 x 355.6 x 577.85 (mm)
Input
Adjustable Voltage Range 75Vac – 154Vac
Circuit Breaker 15A
Cord Length (ft) 6
Input Frequency 50/60Hz ± 3Hz
Input Voltage Range 78Vac – 149Vac
Nominal Input Voltage 120Vac
Plug Style Straight
Plug Type NEMA 5-15P
Output
Automatic Voltage Regulation Double Boost, Single Buck
On Battery Frequency 50/60Hz ± 0.1Hz
On Battery Voltage 120Vac ± 5%
On Battery Waveform Sine Wave
Outlet Type NEMA 5-15R
Outlets – Battery & Surge Protected 8
Outlets – Critical Load 4
Outlets – Total 8
Overload Protection Internal Circuitry Limiting, Circuit Breaker
Transfer Time 4 ms
VA 1,500
Watts 1,500
Surge Protection & Filtering
Surge Suppression 1,030 J
Management & Communications
Audible Alarms On Battery, Low Battery, Overload, Fault, Replace Battery
EPO Port Yes
HID Compliant USB Port Yes
LED Indicators Power On, Online, On Battery, Wiring fault, Replace Battery
Management Cable USB Cable, Serial Cable, EPO Cable
Multifunction LCD Panel 41 different settings or status options via the UPS Status menu, UPS Setup & Control menus, and Testing/Battery Calibration menus.
SNMP / HTTP Remote Monitoring Yes, with optional RMCARD205
Serial Port Yes
Software PowerPanel® Business Edition
Physical
Color Black
Dimensions – W×H×D (in) 6.7 × 8.7 × 17 inches
Form Factor Mini-Tower
Weight (lbs) 54.0 lbs
Environmental
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Operating Relative Humidity 0 – 95% (non-condensing)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Temperature 5°F to 113°F (-15°C to 45°C)
Certifications
Environmental RoHS Compliant
Safety UL1778, cUL 107.3, FCC DOC Class A
Warranty
Connected Equipment Guarantee Lifetime
Product Warranty 3 Years Limited
