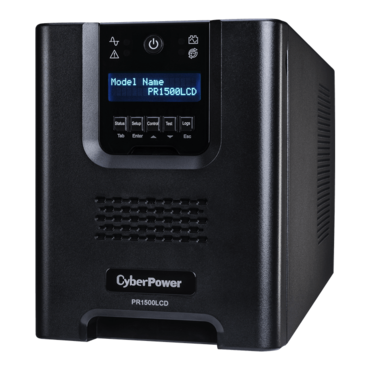

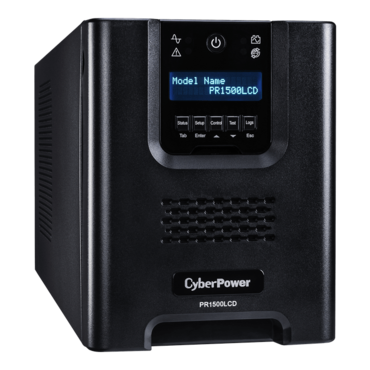

Smart App Sinewave PR1500LCDN, LCD, 1500 VA/1500 W, Sine Wave, Tower UPS
Quantity:
- SKU: 10235767
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PR1500LCDN
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$725.95
- Capacity: 1500 VA / 1500 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: RMCARD205 included
- Warranty: 3 year
| General | |
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS™ Bypass |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 12V/17Ah |
| Battery Type | Sealed Lead-Acid |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB12170X2A |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 4.7 minutes |
| Runtime at Half Load | 15.1 minutes |
| Typical Recharge Time | 3 hours – Quick Charge Mode, 8 hours – Eco Mode |
| User Replaceable | Yes |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 17.02 x 22.1 x 43.18 (cm) |
| Physical Dimensions – (WxHxD) (in) | 6.7 x 8.7 x 17 (in) |
| Physical Dimensions – (WxHxD) (mm) | 170 x 221 x 432 (mm) |
| Weight (kg) | 24.49 |
| Weight (lb) | 54 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 26.54 |
| Shipping – Weight (lb) | 58.5 |
| Shipping Dimensions – (WxHxD) (cm) | 31.75 x 36.2 x 57.79 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 12.5 x 14.25 x 22.75 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 317.5 x 361.95 x 577.85 (mm) |
| Input | |
| Adjustable Voltage Range | 75Vac – 154Vac |
| Circuit Breaker | 15A |
| Cord Length (ft) | 6 |
| Frequency Range | 50/60Hz ± 3Hz |
| Input Voltage Range | 78Vac – 149Vac |
| Nominal Input Voltage | 120Vac |
| Plug Style | Straight |
| Plug Type | NEMA 5-15P |
| Output | |
| Automatic Voltage Regulation | Double Boost, Single Buck |
| On Battery Frequency | 50/60 Hz ± 0.1Hz |
| On Battery Voltage | 120Vac ± 5% |
| On Battery Waveform | Sine Wave |

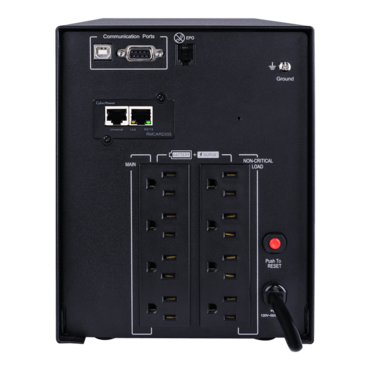

| Outlet Type | NEMA 5-15R |
| Outlets – Battery & Surge Protected | 8 |
| Outlets – Critical Load | 4 |
| Outlets – Total | 8 |
| Overload Protection | Internal Circuitry Limiting, Circuit Breaker |
| Transfer Time | 4 ms |
| VA | 1,500 |
| Watts | 1,500 |
| Surge Protection & Filtering | |
| Surge Suppression | 1,030 J |
| Management & Communications | |
| Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
| EPO Port | Yes |
| HID Compliant USB Port | Yes |
| LCD Control Panel | 41 different settings or status options via the UPS Status menu, UPS Setup & Control menus, and run Testing/Battery Calibration menus. |
| LED Indicators | Power On, Online, On Battery, Wiring fault, Replace Battery |
| Management Cable | USB Cable, Serial Cable, EPO Cable |
| Removable LCD Control Panel Option | Yes – Standard with 4.5 ft Cable |
| SNMP / HTTP Remote Monitoring | Yes – pre-installed RMCARD205 |
| Serial Port | Yes |
| Software | PowerPanel® Business Edition |
| Physical | |
| Color | Black |
| Dimensions – W×H×D (in) | 6.7 × 8.7 × 17 inches |
| Form Factor | Mini-Tower |
| Weight (lbs) | 54.0 lbs |
| Environmental | |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| Operating Relative Humidity | 0 – 95% (non-condensing) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778, cUL 107.3, FCC DOC Class A |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | 3 Years Limited |
