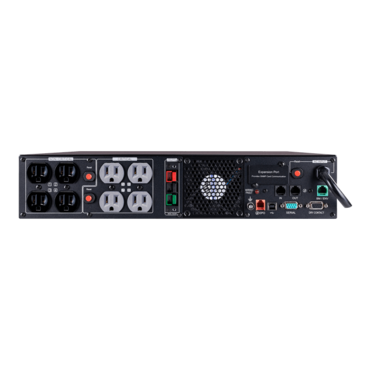

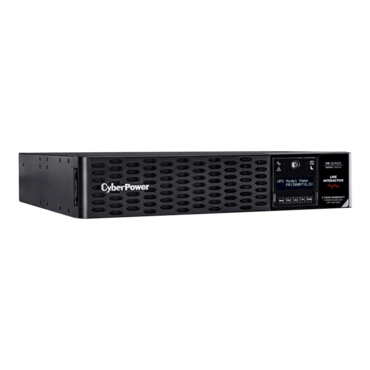

Smart App Sinewave PR1500RTXL2U, LCD, 1500 VA/1500 W, Sine Wave, 2U Rackmount/Tower UPS
- SKU: 12361416
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PR1500RTXL2U
- Availability: TEMPORARILY OUT OF STOCK
Price
$869.95
- Capacity: 1500 VA / 1500 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-125 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes
- Warranty: 3 year
- ENERGY STAR® qualified: Yes
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| ENERGY STAR® Qualified | Yes |
| Active PFC Compatible | Yes |
| Input | |
| Voltage | 100 – 125 Vac |
| Frequency | 47 – 63 Hz |
| Input Voltage Range | 70 – 155 Vac |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle, 45° Offset Right |
| Cord Length | 10 ft. |
| Output | |
| VA | 1500 |
| Watts | 1500 |
| Automatic Voltage Regulation | Double Boost, Single Buck |
| On Battery Voltage | 100/110/120/125 Vac ± 5% |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Waveform | Sine Wave |
| Outlets – Total | 8 |
| Outlet Type | NEMA 5-15R |
| Outlets – Critical Load | 4 |
| Outlets – Battery & Surge Protected | 8 |
| Rated Power Factor | 1 |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker |
| Transfer Time | 4 ms typical |
| Battery | |
| Extended Battery Module | BP48VP2U02 |
| Runtime at Half Load (min) | 17.9 |
| Runtime at Full Load (min) | 6.5 |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12 V/9 AH |
| Hot-Swappable | Yes |
| Replacement Battery | RB1290X4J |
| Battery Quantity | 4 |
| User Replaceable | Yes |
| Typical Recharge Time | 3 hrs |
| External Battery Pack Option | Yes |
| Surge Protection & Filtering | |
| RJ11/RJ45 | 1-in, 1-out |
| Surge Suppression | 2430 |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| Multifunction LCD Panel | 47 Settings (27 setup and control items + 20 status updates and log menus) |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| Contact Closure | Yes |
| Management Cable | USB Cable, Serial Cable, EPO Cable |
| LED Indicators | Power On, Line Mode, Battery Mode, Fault, Night Mode, Wiring Fault |
| Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat |
| Software | PowerPanel® Business Edition |
| SNMP/HTTP Remote Monitoring | Yes – with optional RMCARD205 |
| Physical | |
| Rack Size | 2U |
| Color | Black |
| Form Factor | Rack/Tower |
| Dimensions – W×H×D (in) | 17.1 x 3.4 x 19.7 |
| Weight (lbs) | 67.7 |
| Shipping Dimensions (WxHxD) (in.) | 22.1 x 10.8 x 24.4 |
| Shipping Weight (lbs.) | 81.1 |
| Environmental | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| AC Mode Thermal Dissipation | 71.7 |
| Certifications | |
| Safety | UL1778, cUL107.1, FCC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | Three-Years Limited |
| Connected Equipment Guarantee | Lifetime |
