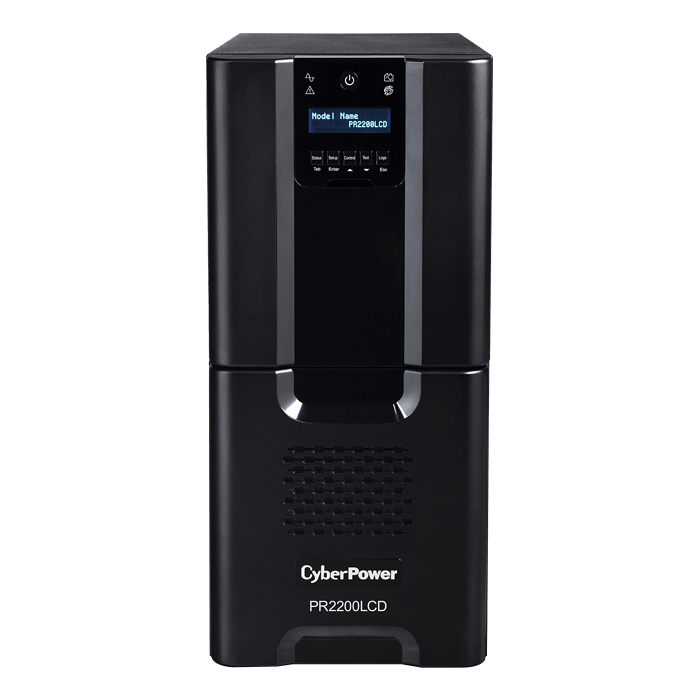

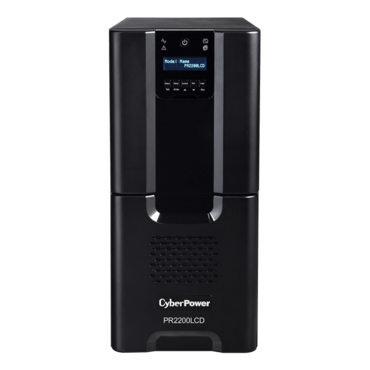

Smart App Sinewave PR2200LCD, LCD, 2200 VA/1980 W, Sine Wave, Tower UPS
Quantity:
- SKU: 7439550
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PR2200LCD
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$1,029.95
Technical Information
- Receptacles: 2 x NEMA 5-20R, 8 x NEMA 5-15R
Power Description
- Load Capacity (VA): 2200 VA
- Load Capacity (Watt): 1980 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
Battery Information
- Backup/Run Time (Full Load): 7.80 Minute
- Maximum Battery Recharge Time: 8 Hour
Physical Characteristics
- Height: 17"
- Width: 7.7"
- Depth: 20.2"
- Form Factor: Tower
- Weight (Approximate): 116 lb
Miscellaneous
- Package Contents:
- Smart App Sinewave PR2200LCD 2200VA Pure Sine Wave Tower LCD UPS
- PowerPanel Business Edition Software CD
- User Manual
- Functional Setup Guide
- USB Cable
- Serial Cable
- Emergency Power Off (EPO) Cable
- Registration Card
- Green Compliant: Yes
- Green Compliance Certificate/Authority: ENERGY STAR, RoHS
Warranty
- Limited Warranty: 3 Year
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| Active PFC Compatible | Yes |
| Input | |
| Voltage | 120 VAC |
| Frequency Range | 47 – 63 Hz |
| Plug Type | NEMA L5-30P |
| Plug Style | Straight |
| Cord Length | 10 ft |
| Input Voltage Range | 75 – 154 VAC |
| Output | |
| VA | 2,200 VA |
| Watts | 1,980 W |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 50/60 Hz ± 1% |
| Automatic Voltage Regulation (AVR) | Yes |
| On Battery Waveform | Sine Wave |
| Outlet Type | NEMA 5-15R (8), NEMA 5-20R (2) |
| Outlets – Total | 10 |
| Outlets – Battery & Surge Protected | 10 |
| Overload Protection |
Internal Circuitry Limiting
Circuit Breaker |
| Transfer Time | 4 ms |
| Battery | |
| Runtime at Half Load | 26 minutes |
| Runtime at Full Load | 8 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/17Ah |
| Battery Quantity | 4 |
| Hot-Swappable | Yes |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB12170X4 |
| Replacement Battery Cartridge Quantity | 1 |
| Typical Recharge Time | 8 hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,030 J |
| Management & Communications | |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| LED Indicators |
Power On
On-Line On-Battery Wiring fault Replace Battery |
| Audible Alarms |
On Battery
Low Battery Overload Fault |
| Software | PowerPanel® Business Edition |
| SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
| LCD Control Panel |
41 different settings or status options via the UPS Status menu,
UPS Setup & Control menus, and run Testing/Battery Calibration menus. |
| Removable LCD Control Panel Option | Yes – Standard with 4.5 ft Cable |
| Management Cable | USB Cable, Serial Cable, EPO Cable |
| EPO Port | Yes |
| Physical | |
| Form Factor | Tower |
| Dimensions – W×H×D (in) | 7.7 × 17 × 20.2 inches |
| Weight (lbs) | 116 lbs |
| Environmental | |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Humidity | 0 – 90% (non-condensing) |
| Certifications | |
| Safety |
UL1778
cUL CSA C22.2 No. 107.3 FCC DOC Class A |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $375,000 |
