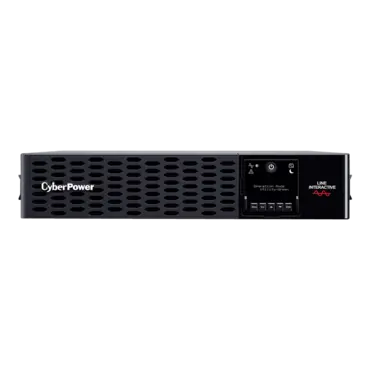

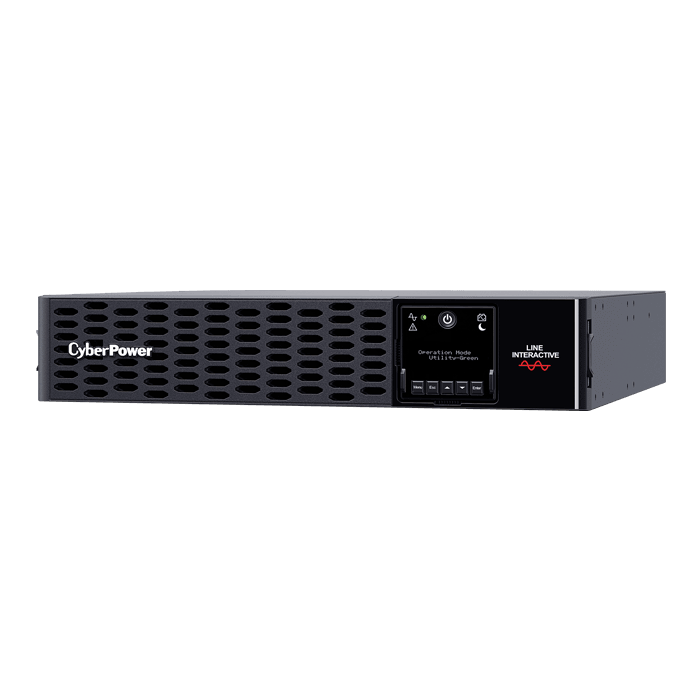

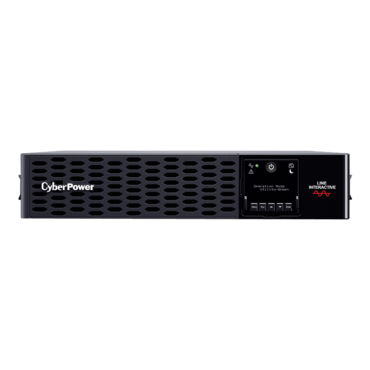

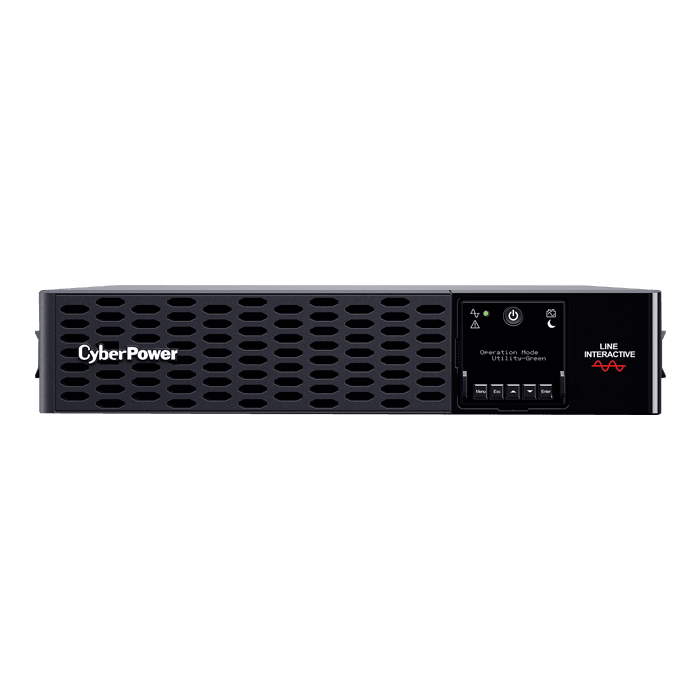

Smart App Sinewave PR2200RTXL2UHVAN, 2200 VA/2200 W, Sine Wave, 2U Rackmount/Tower UPS
Quantity:
- SKU: 12843225
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PR2200RTXL2UHVAN
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,549.95
- Capacity: 2200 VA / 2200 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 200-240 VAC ± 5%
- Plug type & cord: NEMA L6-20P, 10 ft. cord
- Outlet types: 4 × NEMA 6-20R; 2 x NEMA L6-20R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes, pre-installed RMCARD205
- Warranty: 3 year
- ENERGY STAR® certified: Yes
| General | |
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line-Interactive |
| Battery | |
| Battery Quantity | 8 |
| Battery Size | 12V/6Ah |
| Battery Type | Sealed Lead-Acid |
| Extended Battery Module | BP48VP2U03 |
| Extended Battery Option | Yes |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1260X8 |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 5.3 minutes |
| Runtime at Half Load | 15.2 minutes |
| Typical Recharge Time | 3 hrs |
| User Replaceable | Yes |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.43 x 8.64 x 62.99 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.1 x 3.4 x 24.8 (in) |
| Physical Dimensions – (WxHxD) (mm) | 434 x 86 x 630 (mm) |
| Weight (kg) | 42.0 |
| Weight (lb) | 92.6 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 50.8 |
| Shipping – Weight (lb) | 112.0 |
| Shipping Dimensions – (WxHxD) (cm) | 57.15 x 26.67 x 75.57 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 22.5 x 10.5 x 29.75 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 571.5 x 266.7 x 755.65 (mm) |
| Input | |
| Adjustable Voltage Range | 148 – 288 Vac |
| Circuit Breaker | 20A |
| Cord Length (ft) | 10 |
| Frequency Range | 47 – 63 Hz |
| Input Voltage | 200-240Vac |
| Input Voltage Range | 131 – 302 Vac |
| Plug Style | Straight, Twist Lock |
| Plug Type | NEMA L6-20P |
| Output | |
| Automatic Voltage Regulation | Double boost, single buck |
| On Battery Frequency | 50/60Hz ± 1% |
| On Battery Voltage | 200/208/220/230/240Vac ± 5% |
| On Battery Waveform | Sine wave |
| Outlet Type | 4 x NEMA 6-20R; 2 x NEMA L6-20R |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Critical Load | 2 |
| Outlets – Total | 6 |
| Overload Protection | Internal Circuitry Limiting, Circuit Breaker |
| Rated Power Factor | 1 |
| Transfer Time | 4ms typical |
| VA | 2200 |
| Watts | 2200 |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Network Protection RJ45 | 1-in, 1-out |
| Surge Suppression | 2430 J |
| Management & Communications | |
| Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat |
| Dry Contacts | Yes |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LED Indicators | Power on, Line mode, Battery mode, Fault, Night mode |
| Management Cable | USB Cable, EPO Cable |
| Multifunction LCD Panel | 47 Settings (27 setup and control items + 20 status updates and log menus) |
| SNMP / HTTP Remote Monitoring | Yes – pre-installed RMCARD205 |
| Serial Port | Yes |
| Software | PowerPanel® Business Edition |
| Physical | |
| Color | Black |
| Enclosure Construction | Metal |
| Form Factor | Rack/Tower |
| Rack Size | 2U |
| Environmental | |
| Audible noise at 1m from surface of unit | 57.5 dBA |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| Online Thermal Dissipation | 83.1 BTU/hr |
| Operating Relative Humidity | 0 – 95% (non-condensing) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | CE, UL1778, FCC Class A, VCCI |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | 3 Years Limited |
