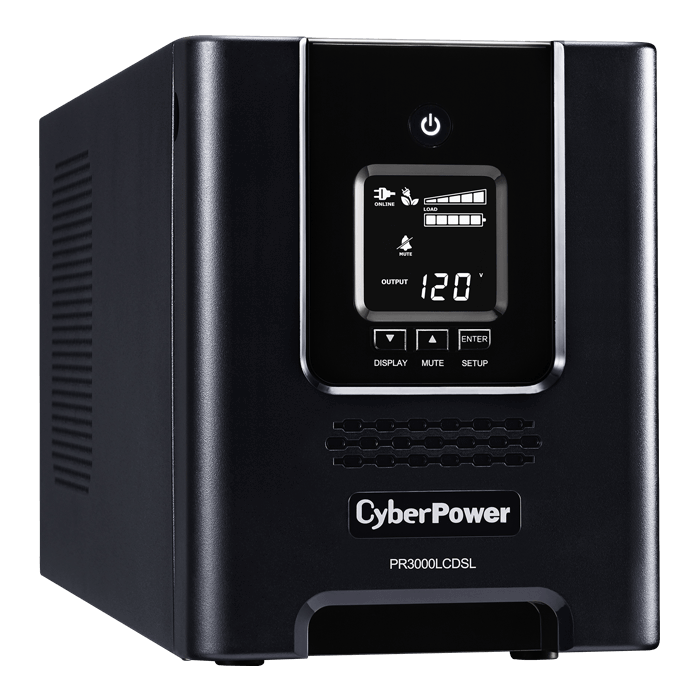

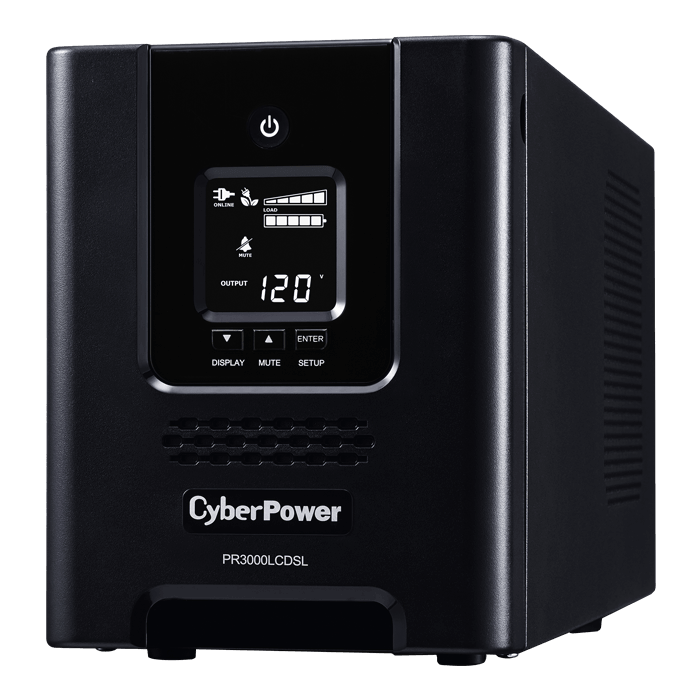

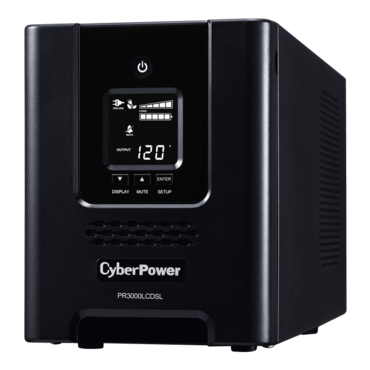

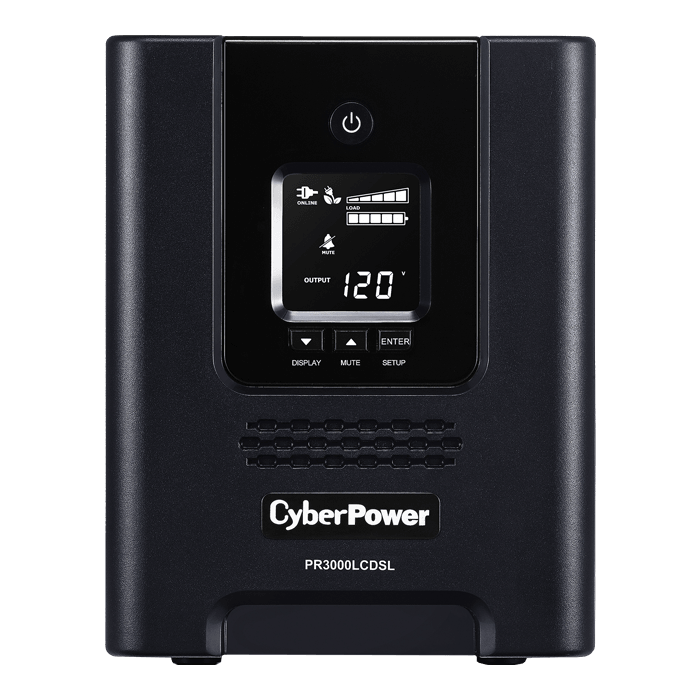

Smart App Sinewave PR3000LCDSL, LCD, 3000 VA/2700 W, Sine Wave, Tower UPS
Quantity:
- SKU: 8376435
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PR3000LCDSL
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$1,173.95
- Capacity: 3000 VA / 2700 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA L5-30P (straight), 10 ft.

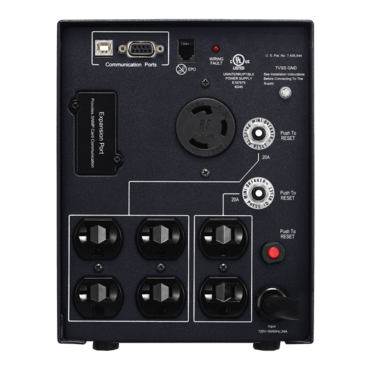

- Outlet types: 6 × NEMA 5-20R, 1 × NEMA L5-30R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes
- ENERGY STAR® qualified: Yes
- Warranty: 3 year
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| ENERGY STAR® Qualified | Yes |
| Active PFC Compatible | Yes |
| Input | |
| Voltage | 120 VAC |
| Frequency Range | 47 – 63 Hz |
| Plug Type | NEMA L5-30P |
| Plug Style | Straight |
| Cord Length | 10 ft |
| Input Voltage Range | 75 – 154 VAC |
| Output | |
| VA | 3,000 VA |
| Watts | 2,700 W |
| Automatic Voltage Regulation |
Boost 1 +30%
Boost 2 +14% Buck -12% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Sine Wave |
| Outlet Type | NEMA L5-30R (1) & NEMA 5-20R (6) |
| Outlets – Total | 7 |
| Outlets – Battery & Surge Protected | 7 |
| Overload Protection |
Internal Circuitry Limiting
Circuit Breaker |
| Transfer Time | 10 ms |
| Rated Power Factor | 0.9 |
| Battery | |
| Runtime at Half Load | 7.5 minutes |
| Runtime at Full Load | 2 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/9Ah |
| Battery Quantity | 4 |
| Hot-Swappable | Yes |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB1290X4K |
| Replacement Battery Cartridge Quantity | 1 |
| Typical Recharge Time | 8 hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,030 J |
| Management & Communications | |
| Multifunction LCD Panel |
Displays:
Current/Load Level Runtime Battery Level AVR In Use Battery In Use Input Voltage Output Voltage Output Frequency Overload Silent Mode |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| LED Indicators | Power On |
| Audible Alarms |
On Battery
Low Battery Overload Battery Missing Fault |
| Software | PowerPanel® Business Edition |
| SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
| Cable Management | USB Cable, Serial Cable, EPO Cable |
| EPO Port | Yes |
| Physical | |
| Form Factor | Mini-Tower |
| Dimensions – W×H×D (in) | 6.7 × 8.7 × 17 inches |
| Weight (lbs) | 55.7 lbs |
| Environmental | |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Humidity | 0 – 90% (non-condensing) |
| Certifications | |
| Safety |
UL1778 4th
cUL CSA C22.2 No 107.3-05 FCC/DOC Class A |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
