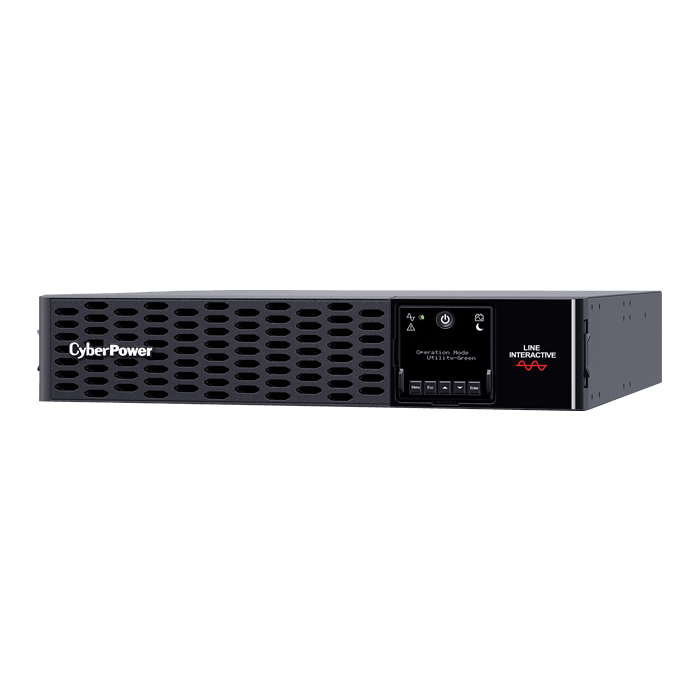

Smart App Sinewave PR3000RTXL2UAN, 3000 VA/3000 W, Sine Wave, 2U Rackmount/Tower UPS

Quantity:
  • SKU: 12843224
  • Manufacturer: CYBERPOWER SYSTEMS
  • MPN: PR3000RTXL2UAN
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,640.95
Quantity:
  • Capacity: 3000 VA / 3000 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 100-120 VAC ± 5%
  • Plug type & cord: NEMA L5-30P, 10 ft. cord
  • Outlet types: 8 × NEMA 5-20R; 1 x NEMA L5-30R
  • Communication: USB, Serial, SNMP, Relay, EPO
  • Management software: PowerPanel® Business Edition
  • Remote management: Yes, pre-installed RMCARD205
  • Warranty: 3 year
General
Active PFC Compatible Yes
Energy Saving GreenPower UPS™ Bypass Technology
Energy Star Certified Yes
UPS Topology Line-Interactive
Battery
Battery Quantity 8
Battery Size 12V/6Ah
Battery Type Sealed Lead-Acid
Extended Battery Module BP48VP2U03
Extended Battery Option Yes
Hot Swappable Yes
Replacement Battery Cartridge RB1260X8
Replacement Battery Cartridge Quantity 1
Runtime at Full Load 3.7 minutes
Runtime at Half Load 11.7 minutes
Typical Recharge Time 3 hrs
User Replaceable Yes
Dimensions
Physical Dimensions – (WxHxD) (cm) 43.43 x 8.64 x 62.99 (cm)
Physical Dimensions – (WxHxD) (in) 17.1 x 3.4 x 24.8 (in)
Physical Dimensions – (WxHxD) (mm) 434 x 86 x 630 (mm)
Weight (kg) 40.1
Weight (lb) 88.4
Dimensions – Shipping
Shipping – Weight (kg) 48.49
Shipping – Weight (lb) 106.9
Shipping Dimensions – (WxHxD) (cm) 56.13 x 27.43 x 76.45 (cm)
Shipping Dimensions – (WxHxD) (in) 22.1 x 10.8 x 30.1 (in)
Shipping Dimensions – (WxHxD) (mm) 561.34 x 274.32 x 764.54 (mm)
Input
Adjustable Voltage Range 70 – 155 Vac
Circuit Breaker 30A
Cord Length (ft) 10
Frequency Range 47 – 63 Hz
Input Voltage 100-120Vac
Input Voltage Range 75 – 149 Vac
Plug Style Straight, Twist Lock
Plug Type NEMA L5-30P
Output
Automatic Voltage Regulation Double boost, single buck
On Battery Frequency 50/60Hz +/- 1%
On Battery Voltage 100/110/120Vac ± 5%
On Battery Waveform Sine wave
Outlet Type 8 x NEMA 5-20R; 1 x NEMA L5-30R
Outlets – Battery & Surge Protected 9
Outlets – Critical Load 4
Outlets – Total 9
Overload Protection Internal Circuitry Limiting, Circuit Breaker
Rated Power Factor 1
Transfer Time 4ms typical
VA 3000
Watts 3000
Surge Protection & Filtering
EMI/RFI Filtration Yes
Network Protection RJ45 1-in, 1-out
Surge Suppression 2430 J
Management & Communications
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat
Dry Contacts Yes
Emergency Power Off (EPO) Port Yes
HID Compliant USB Port Yes
LED Indicators Power on, Line mode, Battery mode, Fault, Night mode, Wiring Fault
Management Cable USB Cable, EPO Cable
Multifunction LCD Panel 47 Settings (27 setup and control items + 20 status updates and log menus)
SNMP / HTTP Remote Monitoring Yes – pre-installed RMCARD205
Serial Port Yes
Software PowerPanel® Business Edition
Physical
Color Black
Enclosure Construction Metal
Form Factor Rack/Tower
Rack Size 2U
Environmental
Audible noise at 1m from surface of unit 57.5 dBA
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Online Thermal Dissipation 151.5 BTU/hr
Operating Relative Humidity 0 – 95% (non-condensing)
Operating Temperature 32 °F to 104°F (0°C to 40°C)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Temperature 5°F to 113°F (-15°C to 45°C)
Certifications
Environmental RoHS Compliant
Safety UL1778, cUL107.1, FCC Class A
Warranty
Connected Equipment Guarantee Lifetime
Product Warranty 3 Years Limited
