General |
Active PFC Compatible |
Yes |
Energy Saving |
GreenPower UPS™ Bypass Technology |
Energy Star Certified |
Yes |
UPS Topology |
Line-Interactive |
Battery |
Battery Quantity |
8 |
Battery Size |
12V/6Ah |
Battery Type |
Sealed Lead-Acid |
Extended Battery Module |
BP48VP2U03 |
Extended Battery Option |
Yes |
Hot Swappable |
Yes |
Replacement Battery Cartridge |
RB1260X8 |
Replacement Battery Cartridge Quantity |
1 |
Runtime at Full Load |
3.6 minutes |
Runtime at Half Load |
10.7 minutes |
Typical Recharge Time |
3 hrs |
User Replaceable |
Yes |
Dimensions |
Physical Dimensions – (WxHxD) (cm) |
43.43 x 8.64 x 62.99 (cm) |
Physical Dimensions – (WxHxD) (in) |
17.1 x 3.4 x 24.8 (in) |
Physical Dimensions – (WxHxD) (mm) |
434 x 86 x 630 (mm) |
Weight (kg) |
39.69 |
Weight (lb) |
87.5 |
Dimensions – Shipping |
Shipping – Weight (kg) |
46.99 |
Shipping – Weight (lb) |
103.6 |
Shipping Dimensions – (WxHxD) (cm) |
57.4 x 27.43 x 76.45 (cm) |
Shipping Dimensions – (WxHxD) (in) |
22.6 x 10.8 x 30.1 (in) |
Shipping Dimensions – (WxHxD) (mm) |
574.04 x 274.32 x 764.54 (mm) |
Input |
Adjustable Voltage Range |
148 – 288 Vac |
Circuit Breaker |
20A |
Cord Length (ft) |
10 |
Frequency Range |
47 – 63 Hz |
Input Voltage |
200-240Vac |
Input Voltage Range |
131 – 302 Vac |
Plug Style |
Straight, Twist Lock |
Plug Type |
NEMA L6-20P |
Output |
Automatic Voltage Regulation |
Double boost, single buck |
On Battery Frequency |
50/60Hz ± 1% |
On Battery Voltage |
200/208/220/230/240Vac ± 5% |
On Battery Waveform |
Sine wave |

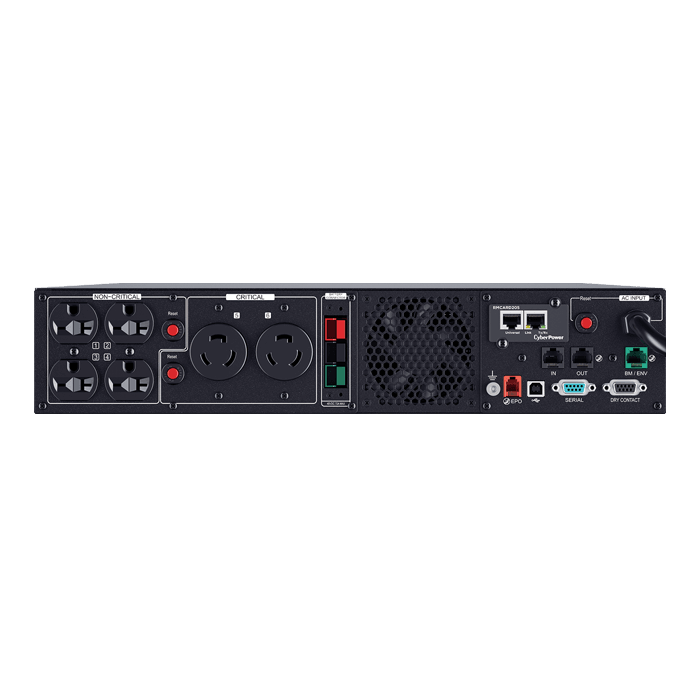

Outlet Type |
4 x NEMA 6-20R; 2 x NEMA L6-20R |
Outlets – Battery & Surge Protected |
6 |
Outlets – Critical Load |
2 |
Outlets – Total |
6 |
Overload Protection |
Internal Circuitry Limiting, Circuit Breaker |
Rated Power Factor |
1 |
Transfer Time |
4ms typical |
VA |
3000 |
Watts |
3000 |
Surge Protection & Filtering |
EMI/RFI Filtration |
Yes |
Network Protection RJ45 |
1-in, 1-out |
Surge Suppression |
2430 J |
Management & Communications |
Audible Alarms |
Battery Mode, Low Battery, Overload, Overcharge, Overheat |
Dry Contacts |
Yes |
Emergency Power Off (EPO) Port |
Yes |
HID Compliant USB Port |
Yes |
LED Indicators |
Power on, Line mode, Battery mode, Fault, Night mode |
Management Cable |
USB Cable, EPO Cable |
Multifunction LCD Panel |
47 Settings (27 setup and control items + 20 status updates and log menus) |
SNMP / HTTP Remote Monitoring |
Yes – pre-installed RMCARD205 |
Serial Port |
Yes |
Software |
PowerPanel® Business Edition |
Physical |
Color |
Black |
Enclosure Construction |
Metal |
Form Factor |
Rack/Tower |
Rack Size |
2U |
Environmental |
Audible noise at 1m from surface of unit |
57.5 dBA |
Maximum Operating Elevation |
10,000 ft (3,000 m) |
Maximum Storage Elevation |
50,000 ft (15,000 m) |
Online Thermal Dissipation |
120.1 BTU/hr |
Operating Relative Humidity |
0 – 95% (non-condensing) |
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
Storage Relative Humidity |
0 – 95% (non-condensing) |
Storage Temperature |
5°F to 113°F (-15°C to 45°C) |
Certifications |
Environmental |
RoHS Compliant |
Safety |
CE, UL1778, FCC Class A, VCCI |
Warranty |
CEG Amount |
$400,000 |
Connected Equipment Guarantee |
Lifetime |
Product Warranty |
3 Years Limited |
