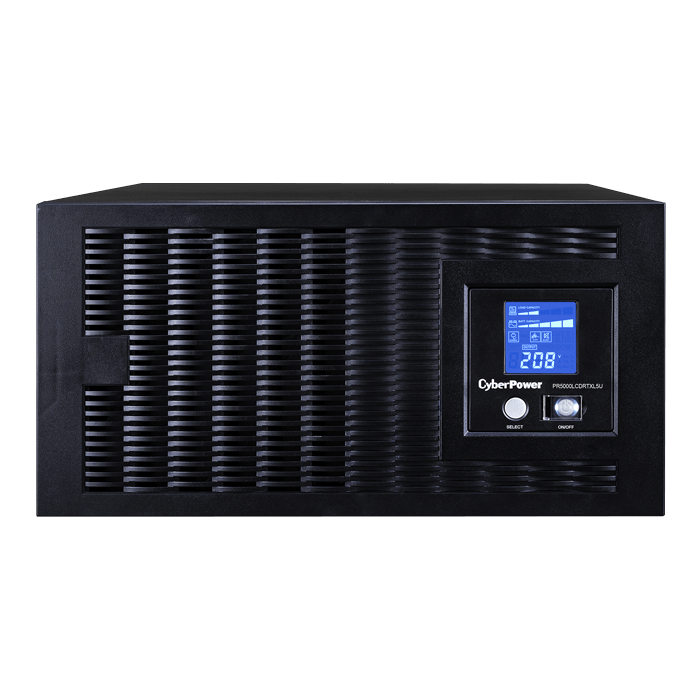

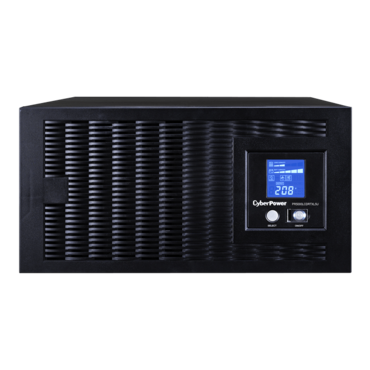

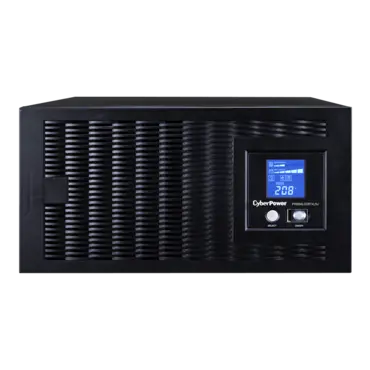

Smart App Sinewave PR5000LCDRTXL5U, LCD, 5000 VA/4500 W, Sine Wave, 5U Rackmount/Tower UPS
Quantity:
- SKU: 3921673
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PR5000LCDRTXL5U
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$3,093.95
Smart App Sinewave PR5000LCDRTXL5U, LCD, 5000 VA/4500 W, Sine Wave, 5U Rackmount/Tower UPS
5000VA UPS SMART APP. PURESINE LCD AVR XL RMT 5U 208V 5OUT L6-20/30R 3YR
5000VA UPS SMART APP. PURESINE LCD AVR XL RMT 5U 208V 5OUT L6-20/30R 3YR
- Capacity: 5000 VA / 4500 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 208Vac ± 5%
- Plug type & cord: NEMA L6-30P, 10 ft. cord
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes
- ENERGY STAR® qualified: Yes
- Warranty: 3 year
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| Input | |
| Voltage | 208 – 240 VAC |
| Frequency | 47 – 63 Hz |
| Plug Type | NEMA L6-30P |
| Plug Style | Straight |
| Cord Length | 10 ft |
| Adjustable Voltage Range | 131 – 268 VAC |
| Voltage Range | 148Vac – 254Vac |
| Cold Start | Yes |
| Output | |
| VA | 5,000 VA |
| Watts | 4,500 W |
| On Battery Voltage | 208 VAC ± 5% |
| On Battery Frequency | 50/60 Hz ± 0.1% |
| On Battery Waveform | Sine Wave |

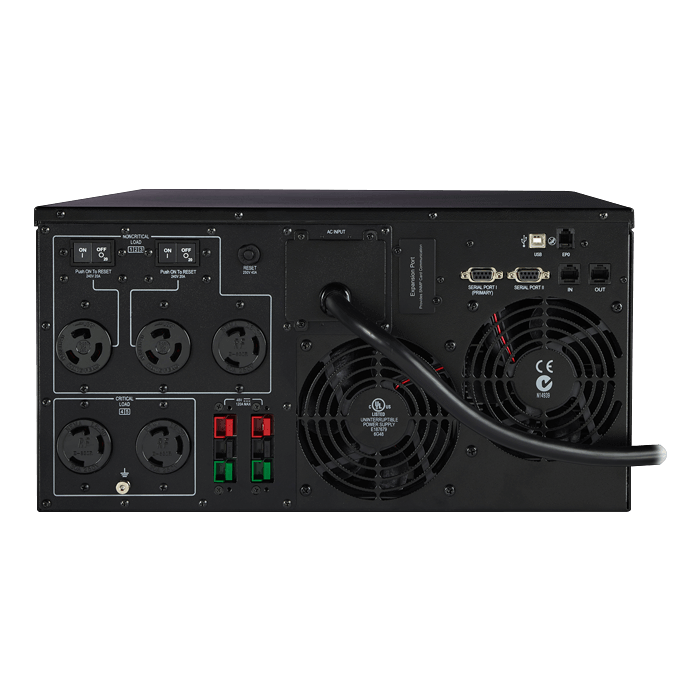

| Outlet Type | NEMA L6-30R (3) & NEMA L6-20R (2) |
| Outlets – Total | 5 |
| Outlets – Battery & Surge Protected | 5 |
| Overload Protection |
On Utility: Circuit Breaker
On Battery: Internal Current Limiting |
| Transfer Time | 4 ms |
| Automatic Voltage Regulation | Yes |
| Outlets – Critical Load | 2 |
| Battery | |
| Runtime at Half Load (min) | 26 |
| Runtime at Full Load (min) | 10 |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/9Ah |
| Battery Quantity | 16 |
| Hot-Swappable | Yes |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB1290X16 |
| Replacement Battery Cartridge Quantity | 1 |
| Typical Recharge Time | 8 hours |
| Extended Battery Option | BPL48V75ART2U |
| Surge Protection & Filtering | |
| Surge Suppression | 2,430 J |
| EMI/RFI Filtration | Yes |
| Coax Protection RG6 | None |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Management & Communications | |
| HID Compliant USB Port | Yes |
| Serial Port | Yes (2x) |
| LED Indicators | Power On |
| Audible Alarms |
On Battery
Low Battery Overload |
| Software | PowerPanel® Business Edition |
| Multifunction LCD Panel |
Displays: Load/Current LevelRuntimeBattery LevelTemperature (F & C) Battery In Use Input Voltage Output Voltage Output Frequency Overload Wiring Fault Battery Shutdown Voltage Static Frequency Tolerance Slew Rate Silent Mode Normal Mode |
| Emergency Power Off (EPO) Port | Yes |
| SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
| AS400 Management | None |
| On-Device Management Features |
Self Test
Auto-Charge Auto-Restart |
| Physical | |
| Form Factor | Rack |
| Dimensions – W×H×D (in) | 17 × 8.75 × 24.25 inches |
| Weight (lbs) | 222.0 lbs |
| Rack Size | 5U |
| Environmental | |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| Certifications | |
| Safety |
UL 1778
FCC Class A Certified CSA C22.2 No. 107.3-05 |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
