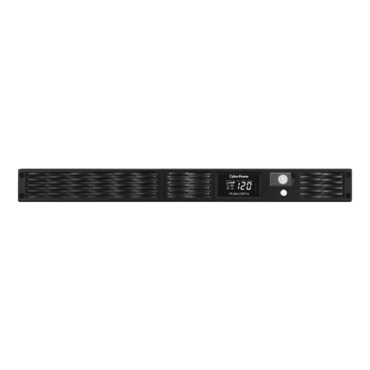

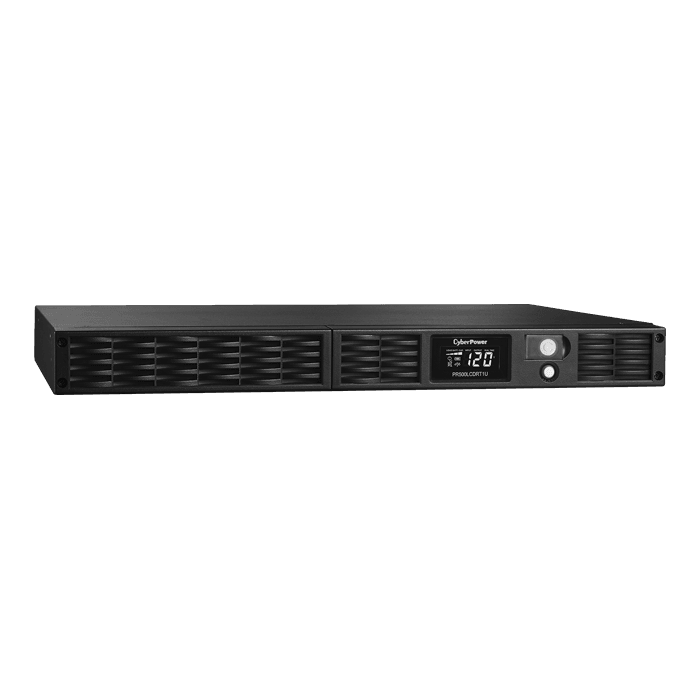

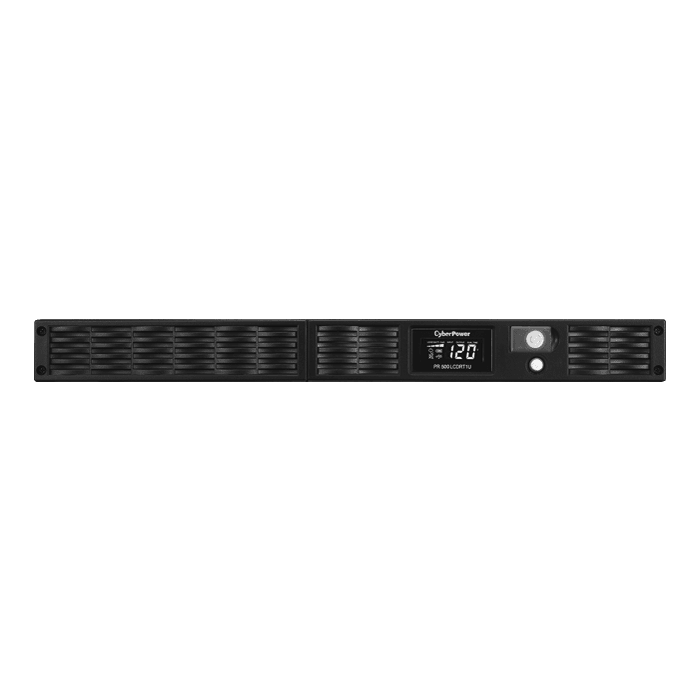

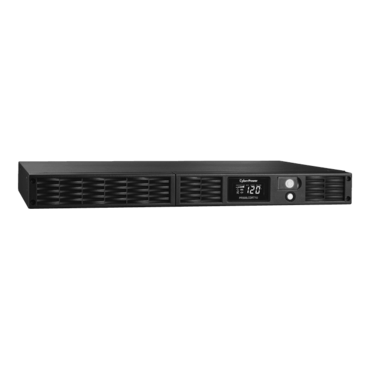

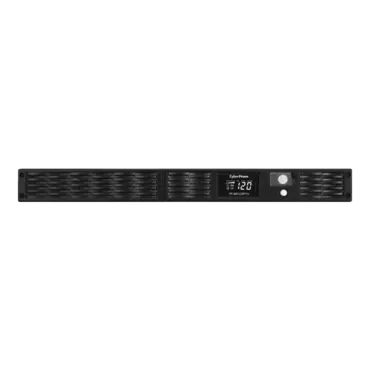

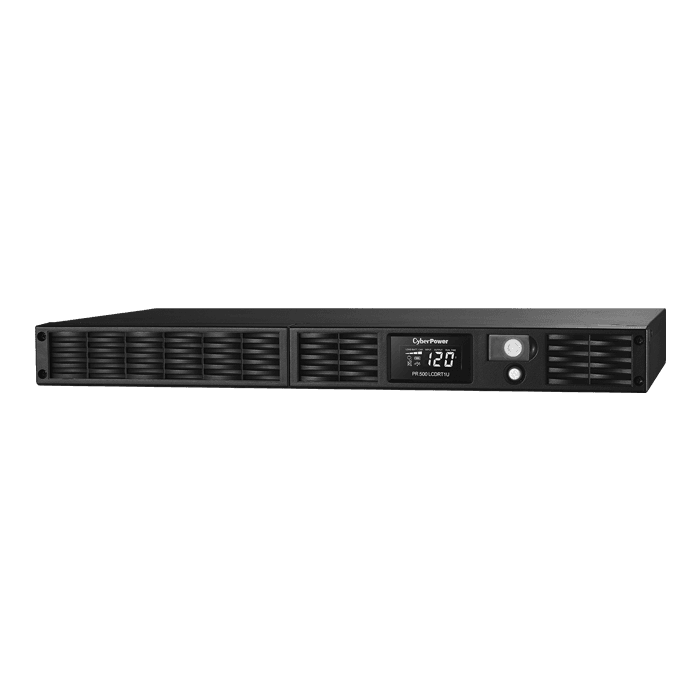

Smart App Sinewave PR500LCDRT1U, LCD, 500 VA/400 W, Sine Wave, 1U Rackmount/Tower UPS
Quantity:
- SKU: 8479539
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PR500LCDRT1U
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$362.95
- Capacity: 500 VA / 400 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes
- Warranty: 3 year
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| Active PFC Compatible | Yes |
| Input | |
| Voltage | Nominal 120V VAC |
| Frequency Range | 57 – 63 Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle, 45° Offset Right |
| Cord Length | 10 ft |
| Input Voltage Range | 80 – 150 VAC |
| Output | |
| VA | 500 VA |
| Watts | 400 W |
| Automatic Voltage Regulation |
Boost 1 +30%
Boost 2 +14% Buck -12% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Sine Wave |
| Outlet Type | NEMA 5-15R |
| Outlets – Total | 7 |
| Outlets – Critical Load | 3 |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Surge-Only Protected | 1 |
| Overload Protection |
Internal Circuitry Limiting
Circuit Breaker |
| Transfer Time | 10 ms |
| Rated Power Factor | 0.8 |
| Battery | |
| Runtime at Half Load | 12 minutes |
| Runtime at Full Load | 3 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 6V/9Ah |
| Battery Quantity | 2 |
| Hot-Swappable | Yes |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB0690X2A |
| Replacement Battery Cartridge Quantity | 1 |
| Typical Recharge Time | Less than 6 hours (90% charged) |
| Surge Protection & Filtering | |
| Surge Suppression | 1,030 J |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| Multifunction LCD Panel |
Displays:Current/Load Level
Runtime Battery Level Battery In Use Input Voltage Output Voltage Overload Silent Mode Normal Mode |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| Emergency Power Off (EPO) Port | Yes |
| LED Indicators |
Power On
Wiring Fault |
| Audible Alarms |
On Battery
Low Battery Overload |
| Software | PowerPanel® Business Edition |
| SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
| Contact Closure | No |
| Cable Management |
USB Cable
Serial Cable EPO Cable |
| Physical | |
| Rack Size | 1U |
| Form Factor | Rack/Tower |
| Dimensions – W×H×D (in) | 17.25 × 1.75 × 9.5 inches |
| Weight (lbs) | 19.8 lbs |
| Shipping Dimensions – W×H×D (in) | 20.8 × 6.2 × 13.2 inches |
| Shipping Weight (lbs) | 25.3 lbs |
| Environmental | |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| AC Mode Thermal Dissipation | 31 BTU/Hr |
| Certifications | |
| Safety |
UL1778
CSA C22.2 NO.107.3-05 FCC DOC Class A |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
