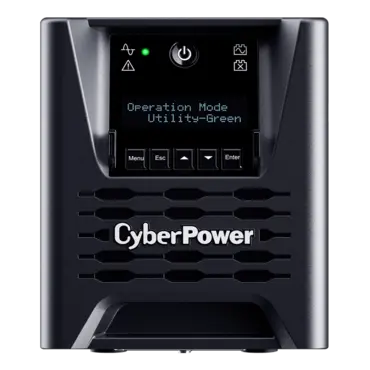

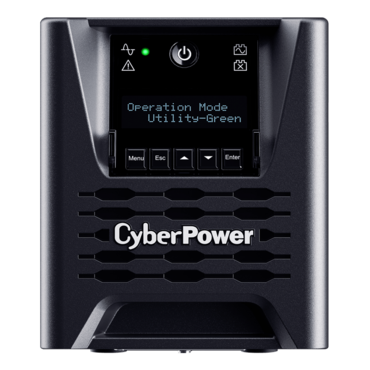

Smart App Sinewave PR750LCD3C, LCD, 750 VA/750 W, Sine Wave, Tower UPS
Quantity:
- SKU: 15901250
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PR750LCD3C
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$369.95
| General | |
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 12 V / 7 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1270X2F |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 3.3 min |
| Runtime at Half Load | 10.7 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 5 ft (1.5 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 78 VAC – 149 VAC |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Straight |
| Output | |
| Automatic Voltage Regulation |
Double Boost Single Buck |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Sine Wave |

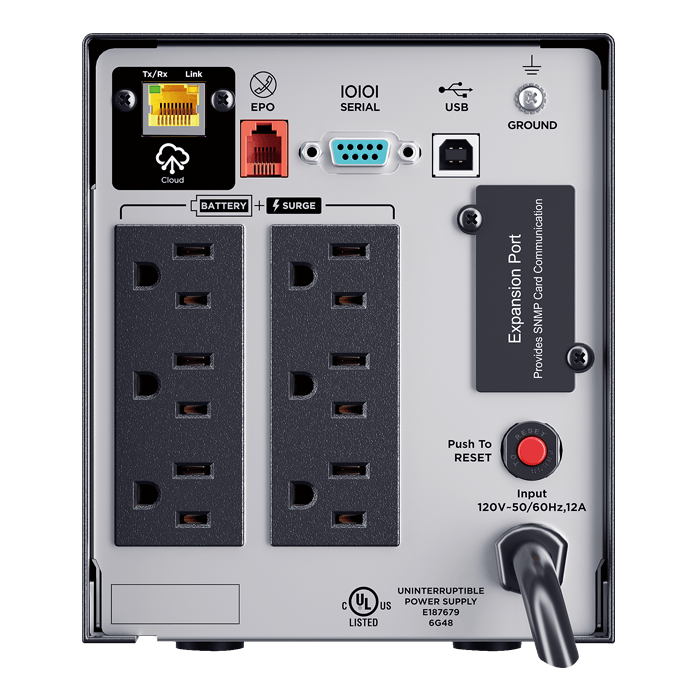

| Outlet Type | 6 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Total | 6 |
| Output Power Factor | 1 |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port | No |
| VA | 750 VA |
| Watts | 750 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 1350 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload Fault Replace Battery |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators |
Power On On-Line Battery Mode Fault |
| Management Cable |
USB Cable EPO Cable |
| Removable LCD Control Panel Option | No |
| SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205 |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Color | Black |
| Form Factor | Tower |
| Material of Construction | Metal |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 13.79 x 16.18 x 35.99 (cm) |
| Physical Dimensions – (WxHxD) (in) | 5.43 x 6.37 x 14.17 (in) |
| Physical Dimensions – (WxHxD) (mm) | 138 x 162 x 360 (mm) |
| Physical Weight (kg) | 11.8 |
| Physical Weight (lb) | 26.01 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 12.97 |
| Shipping – Weight (lb) | 28.6 |
| Shipping Dimensions – (WxHxD) (cm) | 26.42 x 28.45 x 48.26 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 10.4 x 11.2 x 19 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 264.16 x 284.48 x 482.6 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL1778 cUL 107.3 FCC DOC Class B |
| Warranty | |
| CEG Amount | $375000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U2A |
| Product Warranty | 3 Year Limited Warranty |
